Transmission Assembly: Assembly

As shown in the figure below, use a drift [22 mm (0.87 in) dia. commercial service tool] to drive manual shaft oil seals into the transmission case until it is flush.
CAUTION:
- Never reuse manual shaft oil seals.
- Apply ATF to manual shaft oil seals.
Fig 1: Driving Manual Shaft Oil Seals Into Transmission Case Using Drift
Courtesy of NISSAN NORTH AMERICA, INC.
Install detent spring to transmission case and tighten detent spring mounting bolt (←) to the specified torque.

Fig 2: Locating Detent Spring Mounting Bolt
Courtesy of NISSAN NORTH AMERICA, INC.
Install manual shaft to transmission case.

Fig 3: Installing Manual Shaft To Transmission Case
Courtesy of NISSAN NORTH AMERICA, INC.
Install parking rod (1) to manual plate (2).

Fig 4: Installing Parking Rod To Manual Plate
Courtesy of NISSAN NORTH AMERICA, INC.
Install manual plate (with parking rod) to manual shaft.

Fig 5: Installing Manual Plate (With Parking Rod) To Manual Shaft
Courtesy of NISSAN NORTH AMERICA, INC.

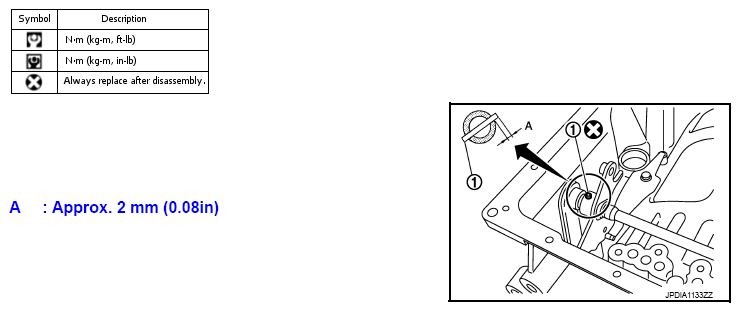

Install retaining pin (1) into the manual plate and manual shaft.
1. Fit pinhole of the manual plate to pinhole of the manual shaft with a pin punch.
2. Use a hammer to tap the retaining pin into the manual plate.
  1. Approx. 2 mm (0.08in)

    Fig 6: Fitting Pinhole Of Manual Plate To Pinhole Of Manual Shaft
    Courtesy of NISSAN NORTH AMERICA, INC.

    CAUTION: Drive retaining pin to 2±0.5 mm (0.08±0.020 in) over the manual plate.
Install retaining pin into the transmission case and manual shaft.
1. Fit pinhole of the transmission case to pinhole of the manual shaft with a pin punch.
2. Use a hammer to tap the retaining pin into the transmission case.
  CAUTION: Drive retaining pin to 5±1 mm (0.20±0.04 in) over the transmission case.

  Fig 7: Identifying Transmission Case, Manual Shaft And Retaining Pin
  Courtesy of NISSAN NORTH AMERICA, INC.
Install D-rings in reverse brake piston.

Fig 8: Identifying Reverse Brake Piston D-Rings
Courtesy of NISSAN NORTH AMERICA, INC.
Install reverse brake piston in transmission case.

Fig 9: Identifying Transmission Case Reverse Brake Piston
Courtesy of NISSAN NORTH AMERICA, INC.
Install needle bearing to drum support edge surface.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".

Fig 10: Identifying Drum Support Edge Surface Needle Bearing
Courtesy of NISSAN NORTH AMERICA, INC.
Install seal rings to drum support.

Fig 11: Identifying Drum Support Seal Rings
Courtesy of NISSAN NORTH AMERICA, INC.
Install reverse brake spring retainer and reverse brake return spring in transmission case.

Fig 12: Identifying Reverse Brake Spring Retainer
Courtesy of NISSAN NORTH AMERICA, INC.
Set the clutch spring compressor on reverse brake spring retainer and install snap ring (fixing spring retainer) in transmission case while compressing return spring.
CAUTION:
- Securely assemble them using a flat-bladed screwdriver so that snap ring tension is slightly weak.
- Be careful not to damage snap ring.
Fig 13: Installing Snap Ring In Transmission Case
Courtesy of NISSAN NORTH AMERICA, INC.

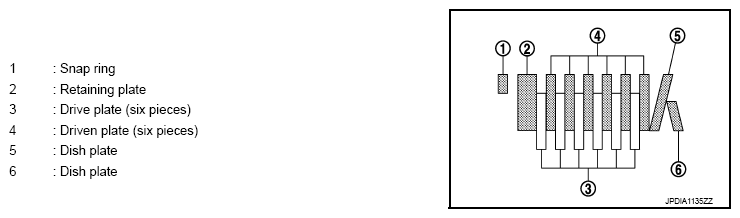

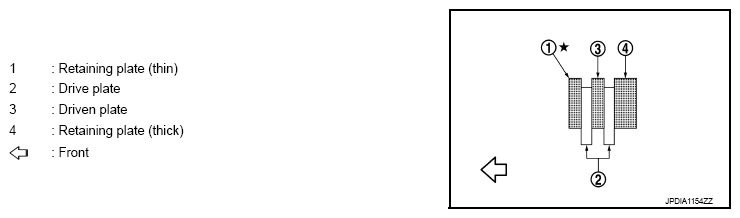

Install reverse brake component part (drive plates, driven plates, and dish plates) in transmission case.

Fig 14: Identifying Reverse Brake Components
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Check order of plates.
Assemble N-spring.
Install reverse brake retaining plate in transmission case.

Fig 15: Identifying Drive And Driven Plate, N Spring
Courtesy of NISSAN NORTH AMERICA, INC.
Install snap ring in transmission case.
CAUTION: Be careful not to damage snap ring.

Fig 16: Identifying Transmission Case Snap Ring
Courtesy of NISSAN NORTH AMERICA, INC.
Measure clearance between retaining plate and snap ring. If not within specified clearance, select proper retaining plate.
Specified clearance "A"

Standard: Refer to "REVERSE BRAKE CLEARANCE ".

Retaining plate: Refer to "REVERSE BRAKE CLEARANCE "

Fig 17: Identifying Clearance Between Retaining Plate And Snap Ring
Courtesy of NISSAN NORTH AMERICA, INC.
Install needle bearing to transmission case.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".

Fig 18: Identifying Transmission Case Needle Bearing
Courtesy of NISSAN NORTH AMERICA, INC.
Install output speed sensor (1) to transmission case and tighten output speed sensor mounting bolt (←) to the specified torque.
CAUTION:
- Never subject it to impact by dropping or hitting it.
- Never disassemble.
- Never allow metal filings, etc. to get on the sensor's front edge magnetic area.
- Never place in an area affected by magnetism.
Fig 19: Locating Output Speed Sensor
Courtesy of NISSAN NORTH AMERICA, INC.
As shown in the figure below, use the drift to drive rear oil seal into the rear extension until it is flush.
CAUTION:
- Never reuse rear oil seal.
- Apply ATF to rear oil seal.
Fig 20: Driving Rear Oil Seal Into Rear Extension Using Drift
Courtesy of NISSAN NORTH AMERICA, INC.
Install return spring (1) to parking pawl (2).

Fig 21: Identifying Return Spring And Parking Pawl
Courtesy of NISSAN NORTH AMERICA, INC.
Install parking pawl (with return spring) and pawl shaft to rear extension.

Fig 22: Installing Parking Pawl And Pawl Shaft To Rear Extension
Courtesy of NISSAN NORTH AMERICA, INC.
Install parking actuator support to rear extension.

Fig 23: Installing Rear Extension Parking Actuator Support
Courtesy of NISSAN NORTH AMERICA, INC.
Install needle bearing (1) to rear extension.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".

Fig 24: Identifying Rear Extension Needle Bearing
Courtesy of NISSAN NORTH AMERICA, INC.

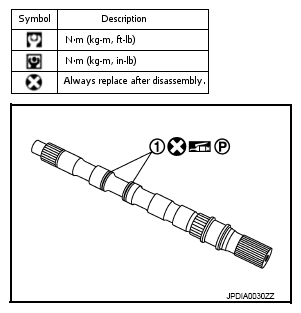

Install seal rings (1) to output shaft.

Fig 25: Identifying Output Shaft Seal Rings
Courtesy of NISSAN NORTH AMERICA, INC.
Install parking gear (1) to output shaft (2).

Fig 26: Installing Parking Gear To Output Shaft
Courtesy of NISSAN NORTH AMERICA, INC.
Install output shaft in transmission case.
CAUTION: Be careful not to mistake front for rear because both sides looks similar. (Thinner end is front side.)

Fig 27: Installing Output Shaft In Transmission Case
Courtesy of NISSAN NORTH AMERICA, INC.
Install bearing race to output shaft.

Fig 28: Installing Output Shaft Bearing Race
Courtesy of NISSAN NORTH AMERICA, INC.
Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to rear extension assembly as shown in the figure below.
Sealant starting point and endpoint (A): Start and finish point shall be in the center of two bolts.

Overlap width of sealant starting point and endpoint (B): 3 - 5 mm (0.12 - 0.20 in)

Sealant width (C): 1.0 - 2.0 mm (0.04 - 0.08 in)

Sealant height (C): 0.4 - 1.0 mm (0.016 - 0.04 in)

Fig 29: Applying Sealant On Rear Extension Assembly
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Completely remove all moisture, oil and old sealant, etc. from the transmission case and rear extension assembly mounting surfaces.
Install rear extension assembly to transmission case.
CAUTION: Insert the tip of parking rod between the parking pawl and the parking actuator support when assembling the rear extension assembly.

Fig 30: Installing Rear Extension Assembly To Transmission Case
Courtesy of NISSAN NORTH AMERICA, INC.
Tighten rear extension assembly bolts to the specified torque.

Fig 31: Identifying Rear Extension Assembly Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
Install needle bearing in drum support.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".

Fig 32: Installing Needle Bearing In Drum Support
Courtesy of NISSAN NORTH AMERICA, INC.
Install direct clutch assembly in reverse brake.
CAUTION: Make sure that drum support edge surface and direct clutch inner boss edge surface come to almost same place.

Fig 33: Identifying Reverse Brake Direct Clutch Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Install high and low reverse clutch assembly in direct clutch.

Fig 34: Identifying High And Low Reverse Clutch Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Align the drive plate using a flat-bladed screwdriver.

Fig 35: Aligning Drive Plate Using Flat-Bladed Screwdriver
Courtesy of NISSAN NORTH AMERICA, INC.
Install high and low reverse clutch hub, mid sun gear assembly, and rear sun gear assembly as a unit.

Fig 36: Identifying Mid And Rear Sun Gear Assembly
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Make sure that portion "A" of high and low reverse clutch drum protrudes approximately 2 mm (0.08 in) beyond portion "B" of rear sun gear.

Fig 37: Identifying Protrusion Of High And Low Reverse Clutch
Courtesy of NISSAN NORTH AMERICA, INC.
Install needle bearing in rear carrier assembly.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".

Fig 38: Installing Needle Bearing In Rear Carrier Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Install bearing race in rear carrier assembly.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".

Fig 39: Removing Bearing Race From Rear Carrier Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Install rear carrier assembly in direct clutch drum.

Fig 40: Installing Rear Carrier Assembly In Direct Clutch Drum
Courtesy of NISSAN NORTH AMERICA, INC.
Install needle bearing (rear side) to mid carrier assembly.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".

Fig 41: Installing Needle Bearing To Mid Carrier Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Install needle bearing (front side) to mid carrier assembly.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".

Fig 42: Installing Needle Bearing To Mid Carrier Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Install mid carrier assembly in rear carrier assembly.

Fig 43: Identifying Mid Carrier Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Install seal rings (1) to input clutch assembly.

Fig 44: Installing Seal Rings To Input Clutch Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Install needle bearing (1) to front carrier assembly.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".

Fig 45: Installing Needle Bearing To Front Carrier Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Install input clutch assembly (with front carrier assembly and rear internal gear) (1) to transmission case.
CAUTION: Check that the needle bearing (2) is securely positioned. If the needle bearing position is misaligned, adjust it to the specified position.

Fig 46: Identifying Input Clutch Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Install 1st one-way clutch (1) to front brake hub (with under drive carrier) (2).

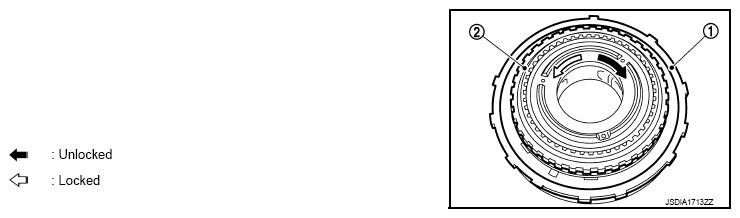

Check operation of 1st one-way clutch.
1. Hold 1st one-way clutch.
2. Check front brake hub for correct locking and unlocking directions.

  Fig 47: Checking Front Brake Hub
  Courtesy of NISSAN NORTH AMERICA, INC.

  CAUTION: If not shown in figure below, check installation direction of 1st one-way clutch.
Install under drive carrier (with 1st one-way clutch) (1) to transmission case.

Fig 48: Identifying Transmission Case Under Drive Carrier
Courtesy of NISSAN NORTH AMERICA, INC.
Install snap ring (1) to transmission case.
CAUTION: Be careful not to damage snap ring.

Fig 49: Identifying Transmission Case Snap Ring
Courtesy of NISSAN NORTH AMERICA, INC.
Install front brake component part (retaining plates, drive plates and driven plate) to transmission case.

Fig 50: Identifying Front Brake Components
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Check order of plates.
Install needle bearing (1) to under drive carrier assembly.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".

Fig 51: Identifying Under Drive Carrier Assembly Needle Bearing
Courtesy of NISSAN NORTH AMERICA, INC.
Install under drive sun gear (1) to under drive carrier assembly.

Fig 52: Identifying Under Drive Sun Gear
Courtesy of NISSAN NORTH AMERICA, INC.

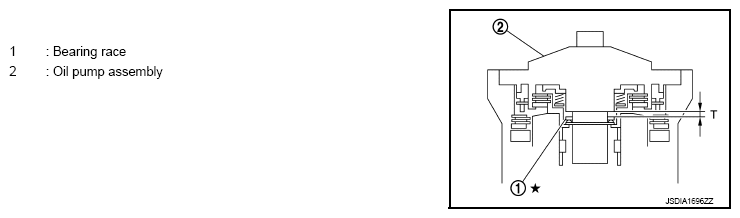

Adjustment of total end play "T".
- Measure clearance between bearing race (1) and oil pump cover (2).
- Select proper thickness of bearing race so that end play is within specifications.

  Fig 53: Identifying Clearance Between Bearing Race And Oil Pump Cover
  Courtesy of NISSAN NORTH AMERICA, INC.

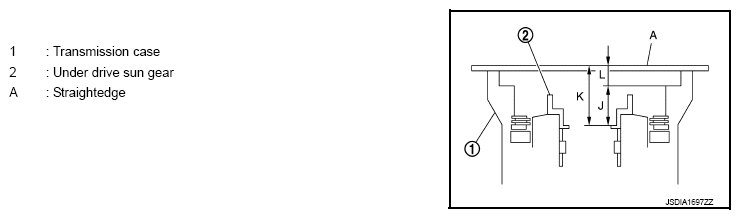

1. Measure dimensions "K" and "L", and calculate dimension "J".

  Fig 54: Identifying Distance Between Oil Pump Fitting Surface Of Transmission Case And Needle Bearing
  Courtesy of NISSAN NORTH AMERICA, INC.

  "J": Distance between the oil pump fitting surface of transmission case and the needle bearing mating surface of under drive sun gear.

  J = K - L

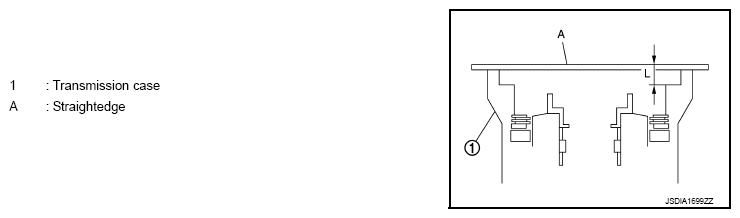

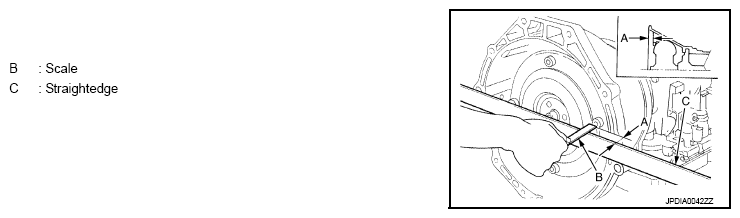

  1. Measure dimension "K" between the converter housing fitting surface of transmission case and the needle bearing mating surface of under drive sun gear.
    CAUTION:
    Never change the straightedge (A) installation position before the completion of "L" measurement.

    Measure dimension "K" in at least three places, and take the average.
    Fig 55: Identifying Dimension Between Converter Housing Fitting Surface Of Transmission Case And Needle Bearing Mating Surface Of Under Drive Sun Gear
    Courtesy of NISSAN NORTH AMERICA, INC.
  2. Measure dimension "L" between the converter housing fitting surface of transmission case and the oil pump fitting surface of transmission case.

    Fig 56: Identifying Dimension Between Converter Housing Fitting Surface Of Transmission Case And Oil Pump Fitting Surface Of Transmission Case
    Courtesy of NISSAN NORTH AMERICA, INC.

    CAUTION: Measure dimension "L" in at least three places, and take the average.
  3. Calculate dimension "J".

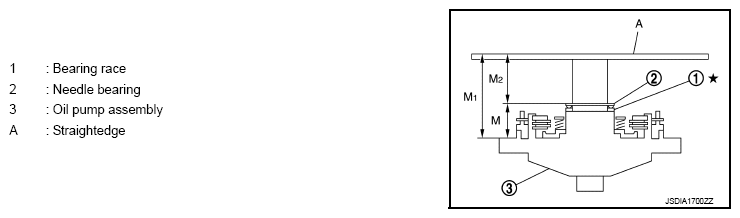

2. Measure dimensions "M1" and "M2", and calculate dimension "M".

  Fig 57: Identifying Distance Between Transmission Case Fitting Surface Of Oil Pump And Needle Bearing On Oil Pump
  Courtesy of NISSAN NORTH AMERICA, INC.

  "M": Distance between the transmission case fitting surface of oil pump and the needle bearing on oil pump.

  M = M1-M2
  1. Place bearing race (1) and needle bearing (2) on oil pump assembly (3).

    Fig 58: Identifying Bearing Race, Needle Bearing And Oil Pump Assembly
    Courtesy of NISSAN NORTH AMERICA, INC.

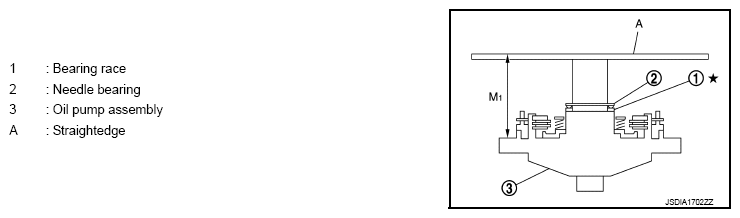

  2. Measure dimension "M1" between the transmission case fitting surface of oil pump and the end of oil pump.

    Fig 59: Identifying Dimension Between Transmission Case Fitting Surface Of Oil Pump And End Of Oil Pump
    Courtesy of NISSAN NORTH AMERICA, INC.

    CAUTION: Measure dimension "M1" in at least three places, and take the average.

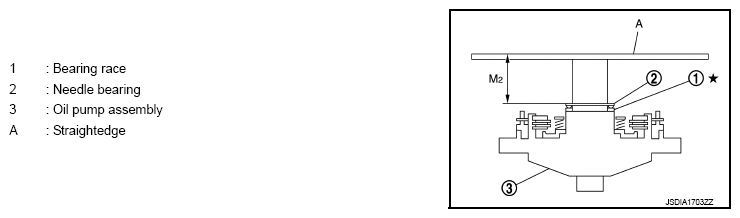

  3. Measure dimension "M2" between the needle bearing on oil pump and the end of oil pump.

    Fig 60: Identifying Dimension Between Needle Bearing On Oil Pump And End Of Oil Pump
    Courtesy of NISSAN NORTH AMERICA, INC.

    CAUTION: Measure dimension "M2" in at least three places, and take the average.
  4. Calculate dimension "M".
    M = M1-M2
3. Adjust total end play "T".

  Fig 61: Identifying Total End Play
  Courtesy of NISSAN NORTH AMERICA, INC.

  T = J - M

  Total end play "T": Refer to "TOTAL END PLAY ".
- Select proper thickness of bearing race so that total end play is within specifications.
  Bearing races: Refer to "TOTAL END PLAY ".
Adjustment of front brake clearance "C".
- Measure clearance between front brake piston (1) and front brake retaining plate (2).
- Select proper thickness of front brake retaining plat so that clearance is within specifications.

  Fig 62: Identifying Clearance Between Front Brake Piston And Retaining Plate
  Courtesy of NISSAN NORTH AMERICA, INC.

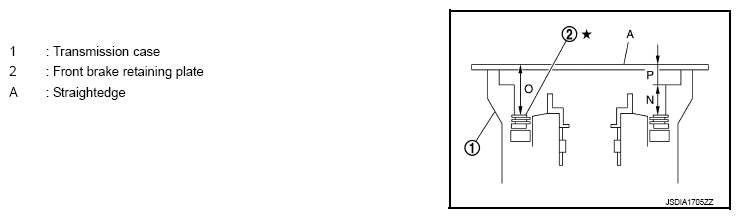

1. Measure dimensions "O" and "P", and calculate dimension "N".

  Fig 63: Identifying Distance Between Oil Pump Fitting Surface Of Transmission Case And Front Brake Retaining Plate
  Courtesy of NISSAN NORTH AMERICA, INC.

  "N": Distance between the oil pump fitting surface of transmission case and the front brake retaining plate.

  N = O - P
  1. Measure dimension "O" between the converter housing fitting surface of transmission case (1) and the front brake retaining plate (2).
    CAUTION:
    Never change the straightedge (A) installation position before the completion of "P" measurement.

    Measure dimension "O" in at least three places, and take the average.
    Fig 64: Identifying Dimension Between Converter Housing Fitting Surface Of Transmission Case And Front Brake Retaining Plate
    Courtesy of NISSAN NORTH AMERICA, INC.
  2. Measure dimension "P" between the converter housing fitting surface of transmission case and the oil pump fitting surface of transmission case.

    Fig 65: Identifying Dimension Between Converter Housing And Oil Pump Fitting Surface Of Transmission Case
    Courtesy of NISSAN NORTH AMERICA, INC.

    CAUTION: Measure dimension "P" in at least three places, and take the average.
  3. Calculate dimension "N".
    N = O - P
2. Measure dimensions "Q1" and "Q2", and calculate dimension "Q".

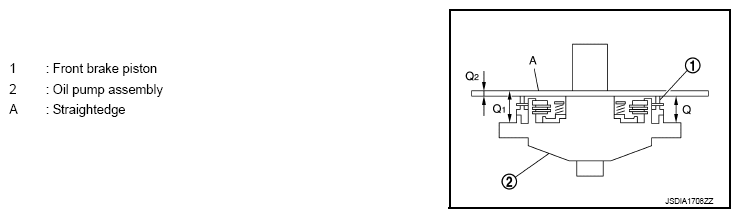

  Fig 66: Identifying Distance Between Transmission Case Fitting Surface Of Oil Pump And Front Brake Piston
  Courtesy of NISSAN NORTH AMERICA, INC.

  "Q": Distance between the transmission case fitting surface of oil pump and the front brake piston.

  Q = Q1-Q2

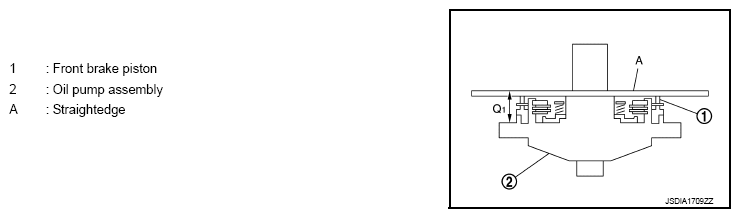

  1. Measure dimension "Q1" between the transmission case fitting surface of oil pump and the straightedge on front brake piston.

    Fig 67: Identifying Dimensions Between Transmission Case Fitting Surface Of Oil Pump And Straightedge On Front Brake Piston
    Courtesy of NISSAN NORTH AMERICA, INC.

    CAUTION: Measure dimension "Q1" in at least three places, and take the average.

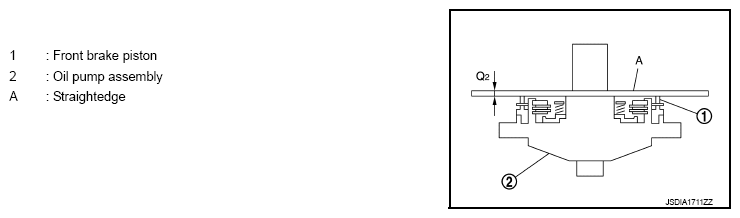

  2. Measure dimension "Q2" of the straightedge.

    Fig 68: Identifying Straightedge Dimension
    Courtesy of NISSAN NORTH AMERICA, INC.
  3. Calculate dimension "Q".
    Q = Q1-Q2

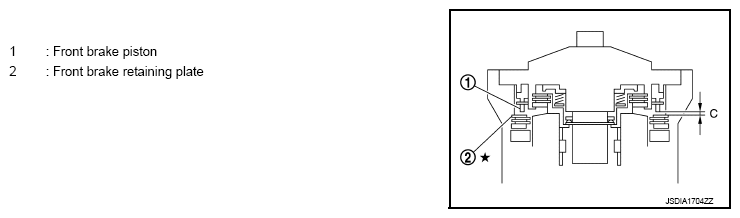

3. Adjust front brake clearance "C".

  Fig 69: Identifying Front Brake Clearance
  Courtesy of NISSAN NORTH AMERICA, INC.

  C = N - Q

  Front brake clearance "C": Refer to "FRONT BRAKE CLEARANCE ".
- Select proper thickness of retaining plate so that front brake clearance is within specifications.
  Retaining plate: Refer to "FRONT BRAKE CLEARANCE ".
Remove under drive sun gear (1) from under drive carrier assembly.

Fig 70: Identifying Under Drive Sun Gear
Courtesy of NISSAN NORTH AMERICA, INC.
Install needle bearing (1) to under drive sun gear.
CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".

Fig 71: Removing Under Drive Sun Gear Needle Bearing
Courtesy of NISSAN NORTH AMERICA, INC.

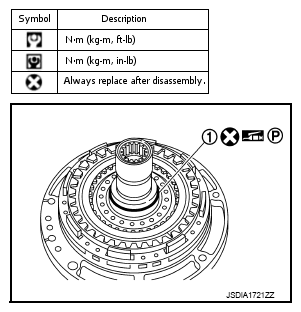

Install O-ring (1) to oil pump assembly.

Fig 72: Identifying Oil Pump Assembly O-Ring
Courtesy of NISSAN NORTH AMERICA, INC.
Install seal ring (1) to oil pump assembly.

Fig 73: Identifying Oil Pump Assembly Seal Ring
Courtesy of NISSAN NORTH AMERICA, INC.
Install bearing race (1) to oil pump assembly.

Fig 74: Identifying Oil Pump Assembly Bearing Race
Courtesy of NISSAN NORTH AMERICA, INC.
Install under drive sun gear (with needle bearing) (1) to oil pump assembly (2).

Fig 75: Identifying Under Drive Sun Gear And Oil Pump Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Install oil pump assembly (with under drive sun gear) to transmission case.
CAUTION: Apply ATF to oil pump bearing.

Fig 76: Installing Oil Pump Assembly (With Under Drive Sun Gear) To Transmission Case
Courtesy of NISSAN NORTH AMERICA, INC.
Apply recommended sealant to oil pump assembly as shown in the figure below.

Fig 77: Applying Sealant To Oil Pump Assembly
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Completely remove all moisture, oil and old sealant, etc. from the oil pump mounting bolts and oil pump mounting bolt mounting surfaces.
Tighten oil pump bolts (←) to the specified torque.

Fig 78: Locating Oil Pump Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
Install O-ring to input clutch assembly.

Fig 79: Installing O-Ring To Input Clutch Assembly
Courtesy of NISSAN NORTH AMERICA, INC.

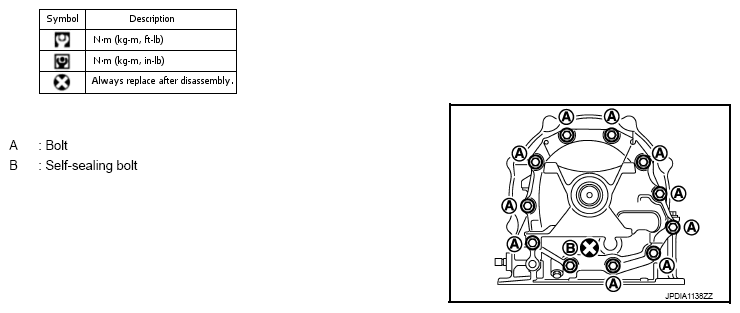

Install converter housing to transmission case, and tighten converter housing bolts (←) to the specified torque.

Fig 80: Locating Converter Housing To Transmission Case Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
Connect TCM connector (A) to joint connector.

Fig 81: Identifying TCM Connector
Courtesy of NISSAN NORTH AMERICA, INC.

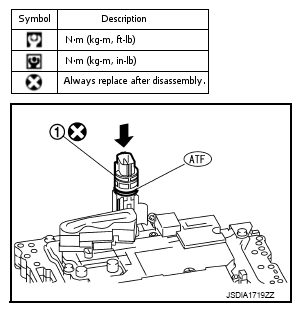

Install joint connector (1) to the control valve & TCM.
CAUTION: Apply ATF to O-ring of joint connector.

Fig 82: Installing Joint Connector To Control Valve And TCM
Courtesy of NISSAN NORTH AMERICA, INC.
Install the control valve & TCM (1) to transmission case.

Fig 83: Installing Control Valve And TCM To Transmission Case
Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Make sure that input speed sensor securely installs input speed sensor holes (A).
- Hang down output speed sensor harness toward outside so as not to disturb installation of the control valve & TCM.
- Adjust joint connector of the control valve & TCM to terminal hole of transmission case.

  Fig 84: Identifying Speed Sensor Holes
  Courtesy of NISSAN NORTH AMERICA, INC.
- Assemble it so that manual valve cutout is engaged with manual plate projection.
Fig 85: Identifying Manual Valve And Plate
Courtesy of NISSAN NORTH AMERICA, INC.

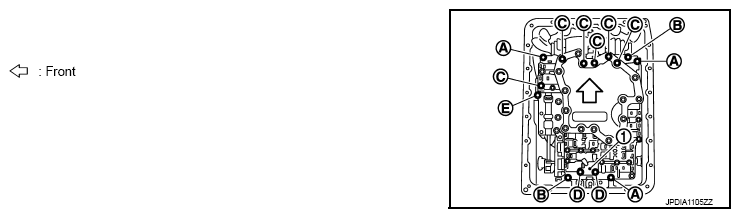

Install bolts and clip (1) to the control valve & TCM. Tighten bolt (E) to the specified torque before tightening the other than bolts.

Fig 86: Identifying Control Valve And TCM Bolts And Clip

Courtesy of NISSAN NORTH AMERICA, INC.

Bolt symbol

Length mm (in)

Number of bolts

43 (1.69)

40 (1.57)

54 (2.13)

50 (1.97)

E⁽¹⁾

50 (1.97)

⁽¹⁾	Reamer bolt

Connect output speed sensor connector (A).
Engage output speed sensor harness with terminal clips (←).

Fig 87: Locating Output Speed Sensor Harness With Terminal Clips
Courtesy of NISSAN NORTH AMERICA, INC.
Pull down joint connector (1).
CAUTION: Be careful not to damage connector.

Fig 88: Pulling Down Joint Connector
Courtesy of NISSAN NORTH AMERICA, INC.
Install snap ring (1) to joint connector (2).

Fig 89: Locating Snap Ring On Joint Connector
Courtesy of NISSAN NORTH AMERICA, INC.
Install magnets (1) in oil pan.
Install oil pan gasket to transmission case.
CAUTION:
- Never reuse oil pan gasket.
- Install it in the direction to align hole positions.
- Completely remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.
Fig 90: Installing Magnets In Oil Pan
Courtesy of NISSAN NORTH AMERICA, INC.

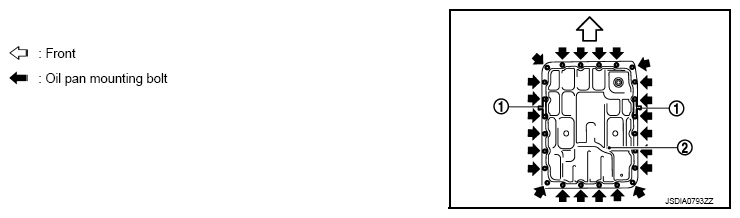

Install oil pan (2) and clips (1) to transmission case.

Fig 91: Locating Oil Pan Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Be careful not to pinch harnesses.
- Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.

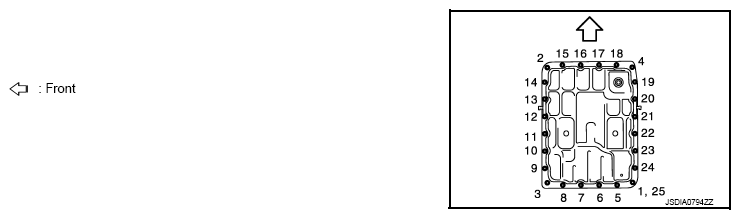

Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure below after temporarily tightening them. Tighten oil pan mounting bolts to the specified torque.

Fig 92: Identifying Oil Pan Mounting Bolts Tightening Sequence
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Never reuse oil pan mounting bolts.
Install drain plug to oil pan. Tighten drain plug to the specified torque.
CAUTION: Never reuse drain plug gasket.
Pour ATF into torque converter.
- Approximately 2 liter (2-1/8 US qt, 1-3/4 Imp qt) of ATF is required for a new torque converter.
- When reusing old torque converter, add the same amount of ATF as was drained.

  Fig 93: Pouring ATF Into Torque Converter
  Courtesy of NISSAN NORTH AMERICA, INC.
Install torque converter while aligning notches of torque converter with notches of oil pump.
CAUTION: Install torque converter while rotating it.

Fig 94: Installing Torque Converter
Courtesy of NISSAN NORTH AMERICA, INC.
Measure dimension "A" to make sure that torque converter is in proper position.

Fig 95: Measuring Torque Converter Dimension Using Scale
Courtesy of NISSAN NORTH AMERICA, INC.

Dimension "A": Refer to "TORQUE CONVERTER ".
