Wiring Diagram - ENGINE CONTROL SYSTEM

For connector terminal arrangements, harness layouts, and letters in a "diamond shape" symbol (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

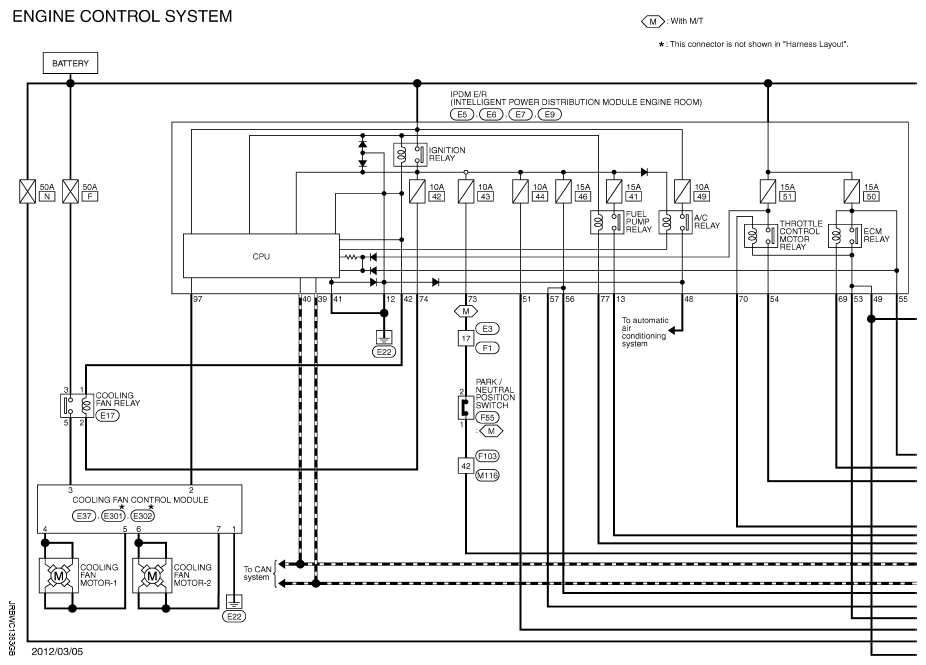

Fig 1: Engine Control System Wiring Diagram (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

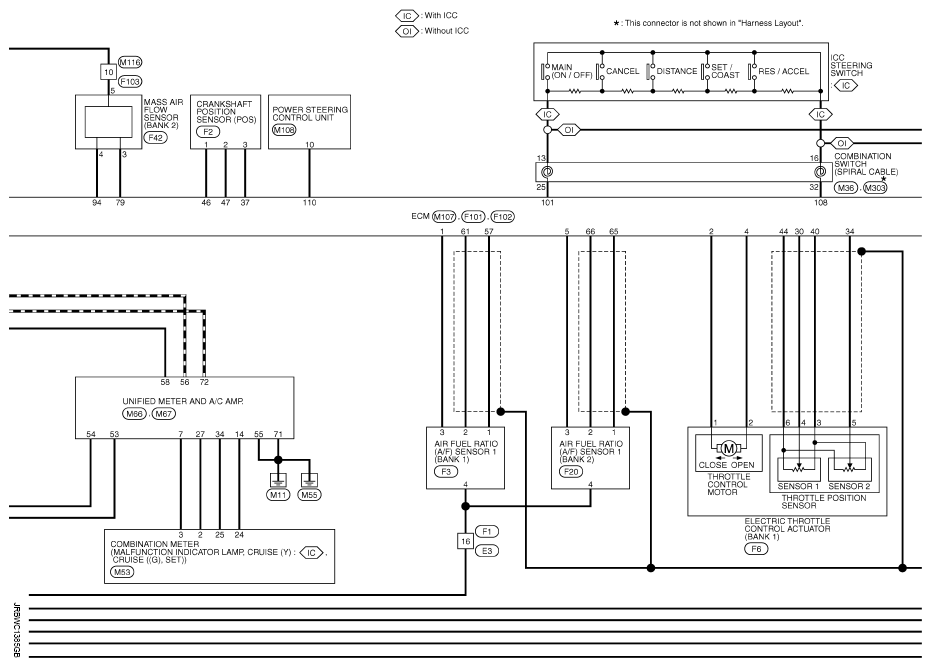

Fig 2: Engine Control System Wiring Diagram (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

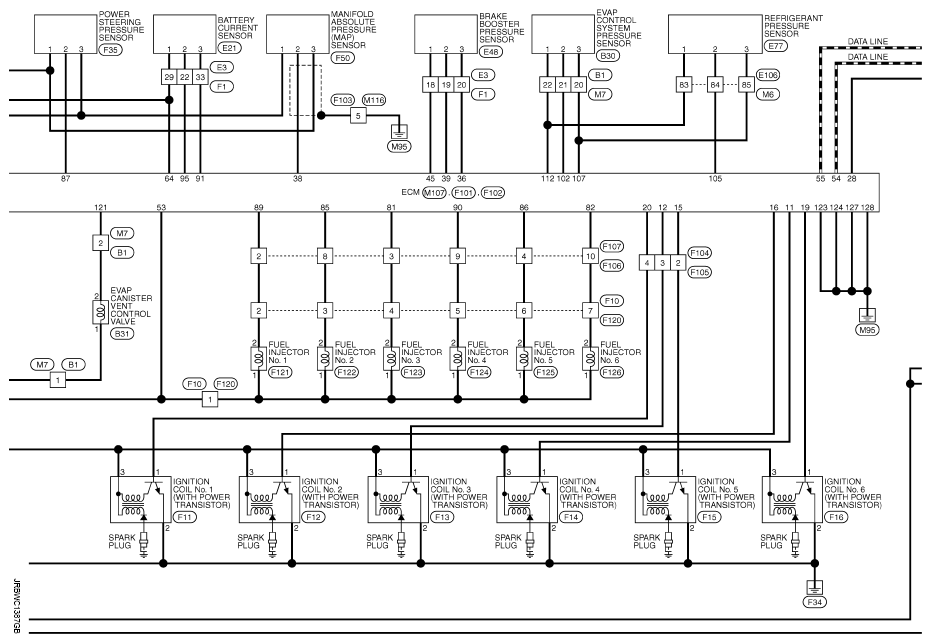

Fig 3: Engine Control System Wiring Diagram (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

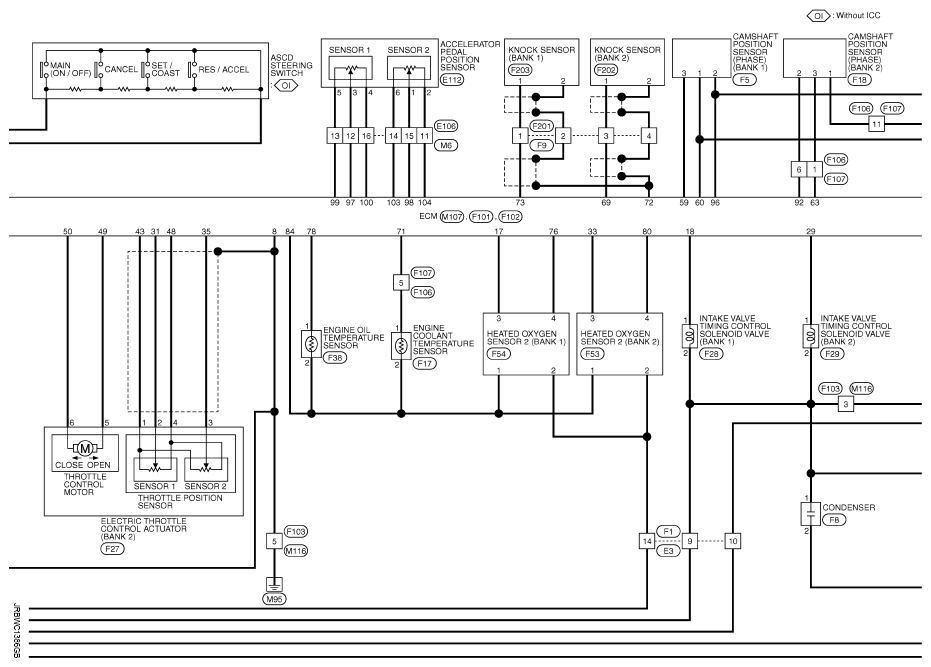

Fig 4: Engine Control System Wiring Diagram (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

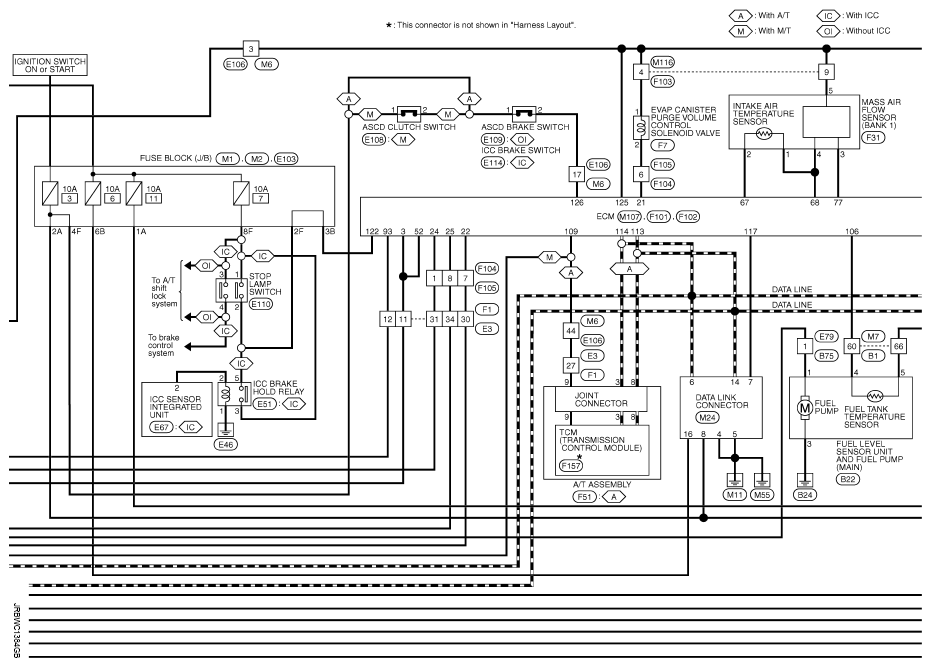

Fig 5: Engine Control System Wiring Diagram (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

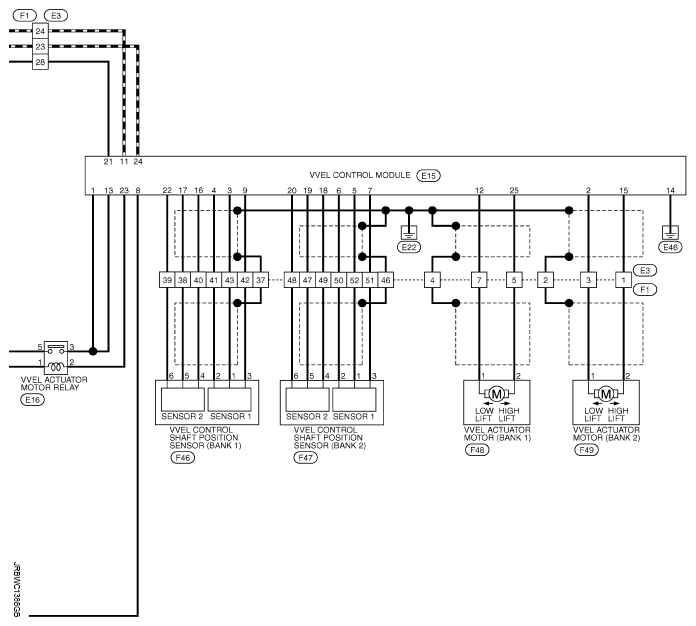

Fig 6: Engine Control System Wiring Diagram (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
