How to Use CAN Communication Signal Chart
WARNING: This page is about a different variant/trim than selected.

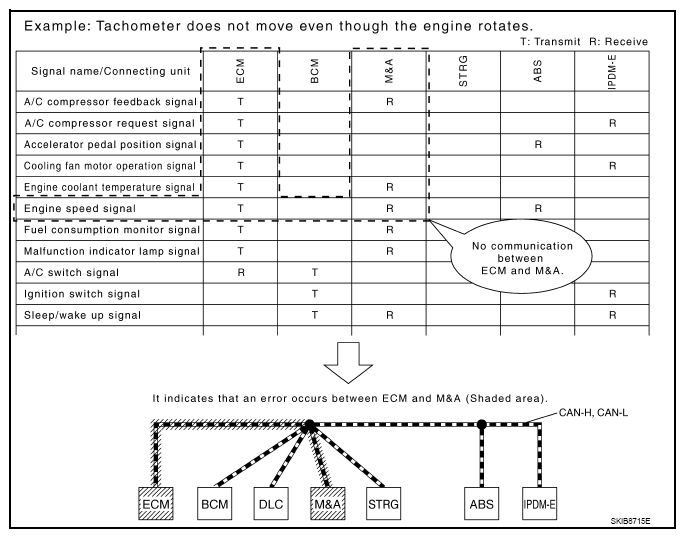

The CAN communication signal chart lists the signals needed for trouble diagnosis. It is useful for detecting the root cause by finding a signal related to the symptom, and by checking transmission and reception unit.
