Component Parts Location

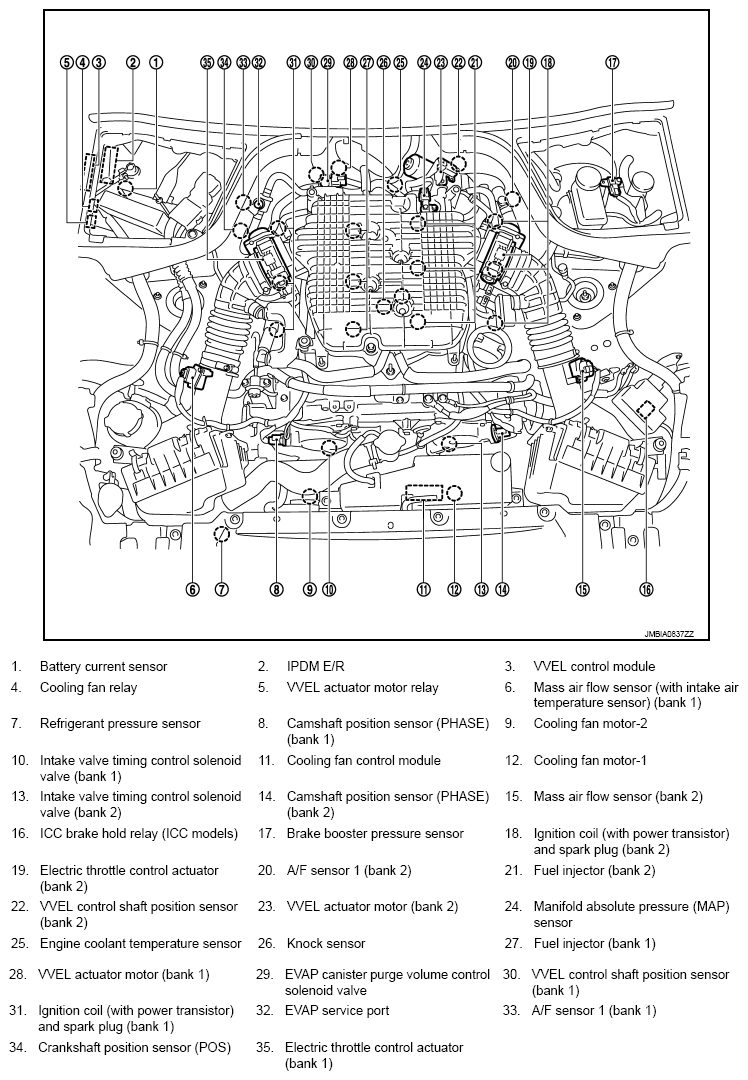

Fig 1: Identifying Fuel Filler Cap Warning System Components Location (1 Of 22)

G08757701

Courtesy of NISSAN NORTH AMERICA, INC.

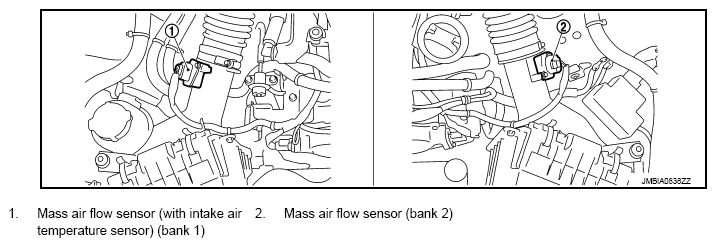

Fig 2: Identifying Fuel Filler Cap Warning System Components Location (2 Of 22)

G08757702

Courtesy of NISSAN NORTH AMERICA, INC.

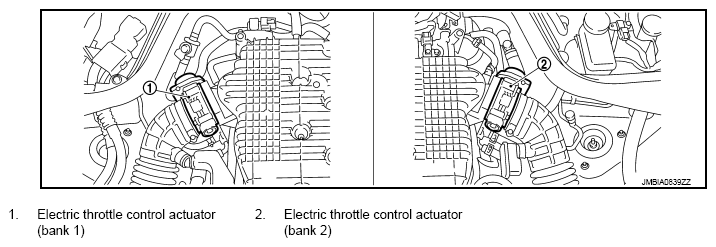

Fig 3: Identifying Fuel Filler Cap Warning System Components Location (3 Of 22)

G08757703

Courtesy of NISSAN NORTH AMERICA, INC.

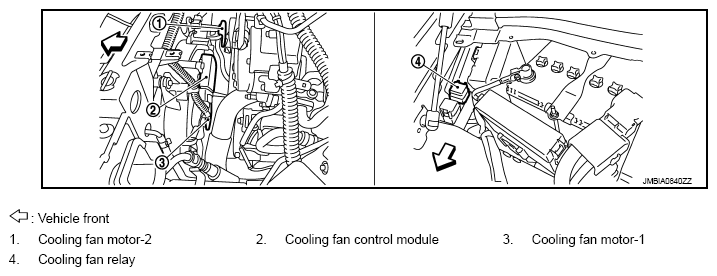

Fig 4: Identifying Fuel Filler Cap Warning System Components Location (4 Of 22)

G08757704

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Fuel Filler Cap Warning System Components Location (5 Of 22)

G05216249

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying Fuel Filler Cap Warning System Components Location (6 Of 22)

G08757706

Courtesy of NISSAN NORTH AMERICA, INC.

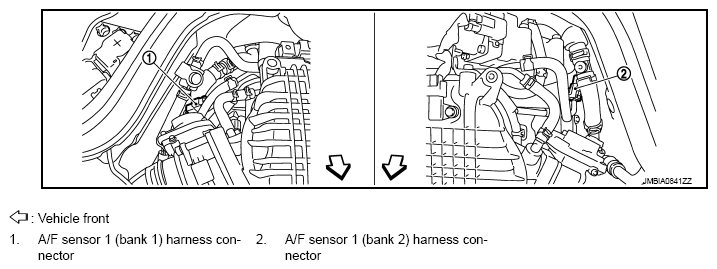

Fig 7: Identifying Fuel Filler Cap Warning System Components Location (7 Of 22)

G08757707

Courtesy of NISSAN NORTH AMERICA, INC.

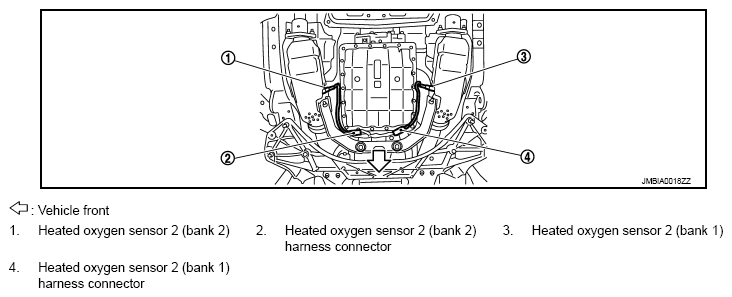

Fig 8: Identifying Fuel Filler Cap Warning System Components Location (8 Of 22)

G08757708

Courtesy of NISSAN NORTH AMERICA, INC.

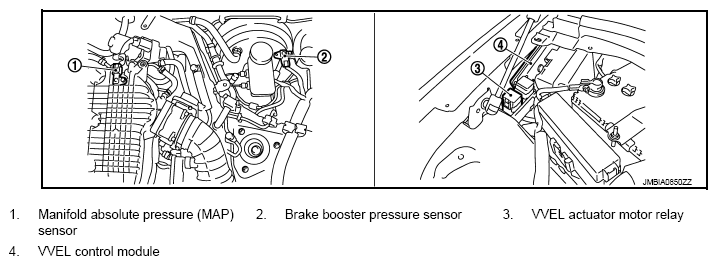

Fig 9: Identifying Fuel Filler Cap Warning System Components Location (9 Of 22)

G08757709

Courtesy of NISSAN NORTH AMERICA, INC.

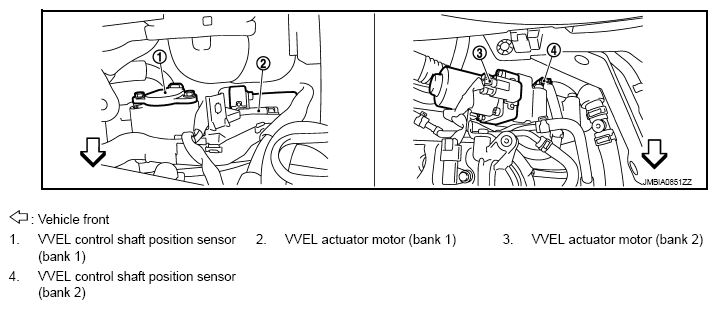

Fig 10: Identifying Fuel Filler Cap Warning System Components Location (10 Of 22)

G08757710

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Identifying Fuel Filler Cap Warning System Components Location (11 Of 22)

G08757711

Courtesy of NISSAN NORTH AMERICA, INC.

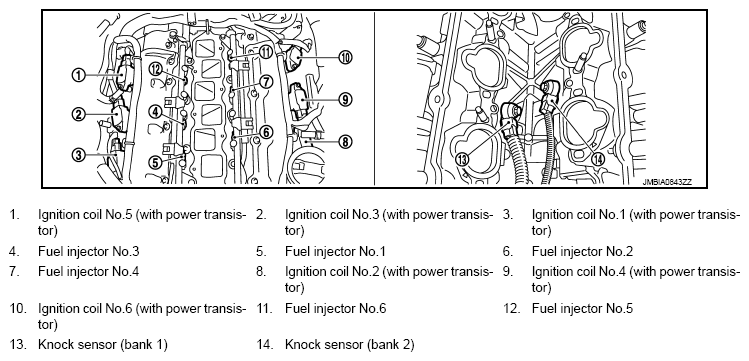

Fig 12: Identifying Fuel Filler Cap Warning System Components Location (12 Of 22)

G08757712

Courtesy of NISSAN NORTH AMERICA, INC.

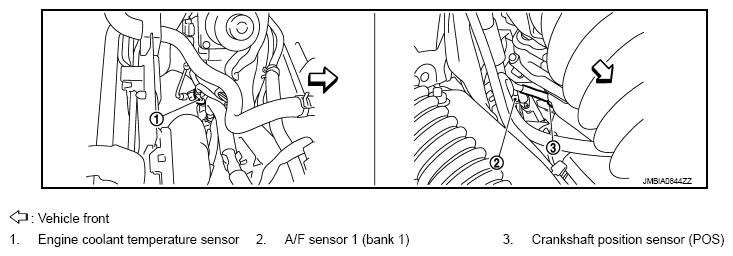

Fig 13: Identifying Fuel Filler Cap Warning System Components Location (13 Of 22)

G08757713

Courtesy of NISSAN NORTH AMERICA, INC.

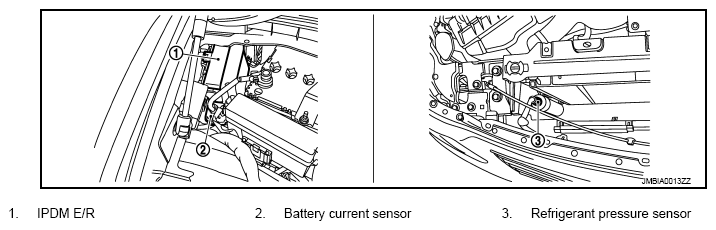

Fig 14: Identifying Fuel Filler Cap Warning System Components Location (14 Of 22)

G08757714

Courtesy of NISSAN NORTH AMERICA, INC.

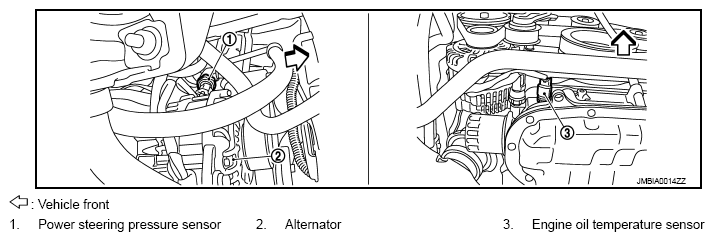

Fig 15: Identifying Fuel Filler Cap Warning System Components Location (15 Of 22)

G08757715

Courtesy of NISSAN NORTH AMERICA, INC.

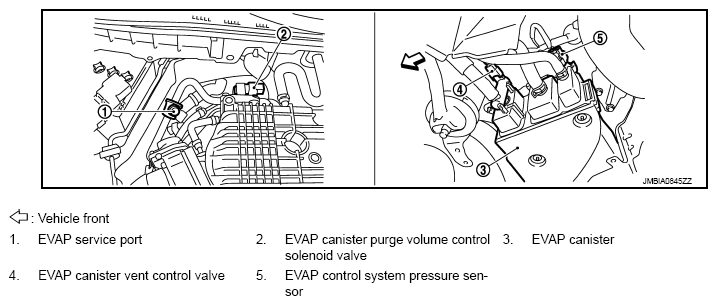

Fig 16: Identifying Fuel Filler Cap Warning System Components Location (16 Of 22)

G08757716

Courtesy of NISSAN NORTH AMERICA, INC.

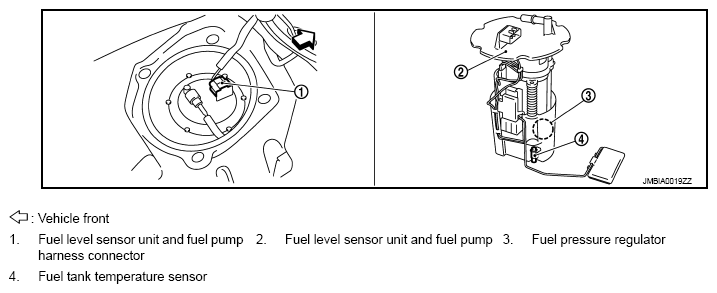

Fig 17: Identifying Fuel Filler Cap Warning System Components Location (17 Of 22)

G08757717

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 18: Identifying Fuel Filler Cap Warning System Components Location (18 Of 22)

G08757718

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 19: Identifying Fuel Filler Cap Warning System Components Location (19 Of 22)

G08757719

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 20: Identifying Fuel Filler Cap Warning System Components Location (20 Of 22)

G08757720

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 21: Identifying Fuel Filler Cap Warning System Components Location (21 Of 22)

G08757721

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 22: Identifying Fuel Filler Cap Warning System Components Location (22 Of 22)

G08757722

Courtesy of NISSAN NORTH AMERICA, INC.
