INTELLIGENT KEY SYSTEM: System Diagram

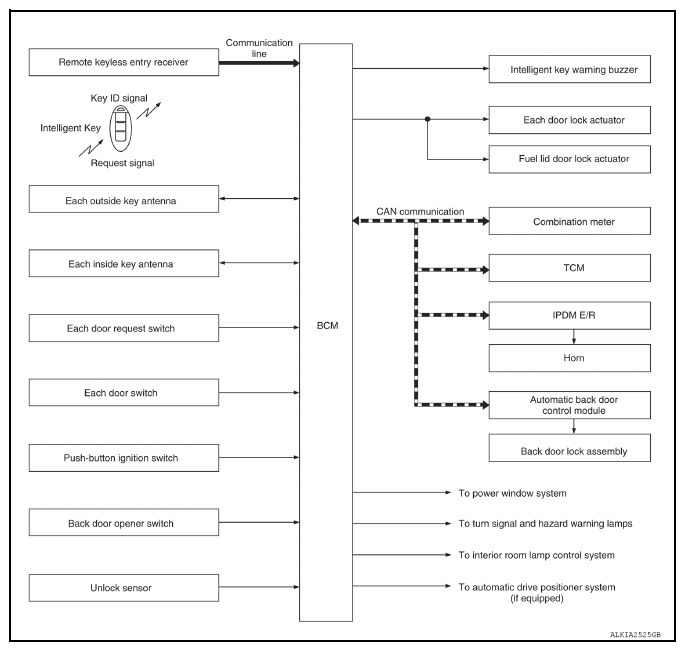

Fig 1: Intelligent Key System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
