Removal and Installation: Removal

  1. Disconnect the battery negative terminal. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the storage box. Refer to "STORAGE BOX: REMOVAL AND INSTALLATION ".
  3. Disconnect the harness connector (A) from the ADAS control unit (1).
  4. Remove bolts (←).
  5. Lift upward to remove ADAS control unit (1).

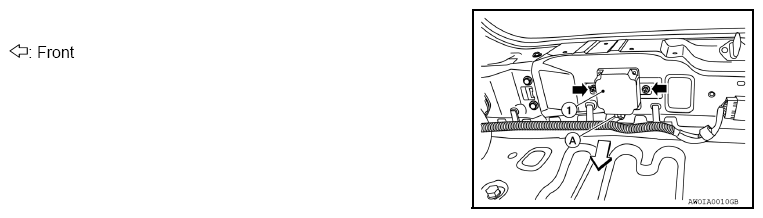

    Fig 1: Locating ADAS Control Unit, Connector And Mounting Bolts
    G08855290Courtesy of NISSAN NORTH AMERICA, INC.
