Data Monitor

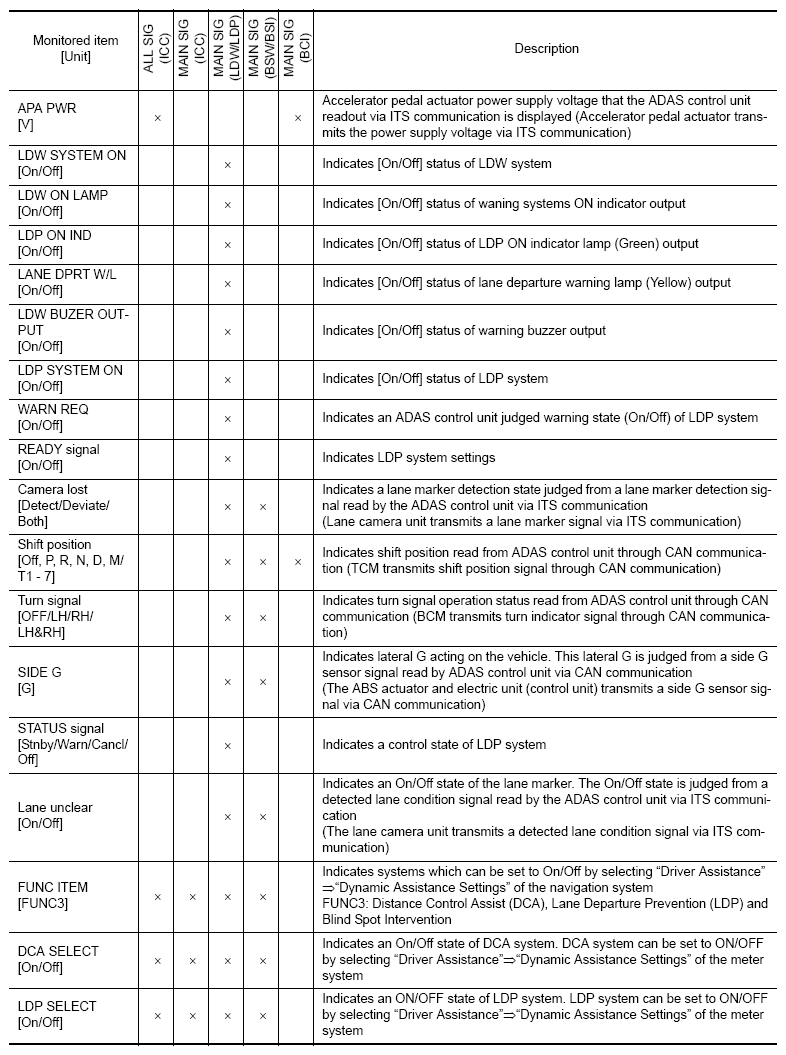

Fig 1: Data Monitor Self Diagnostic Result Chart (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

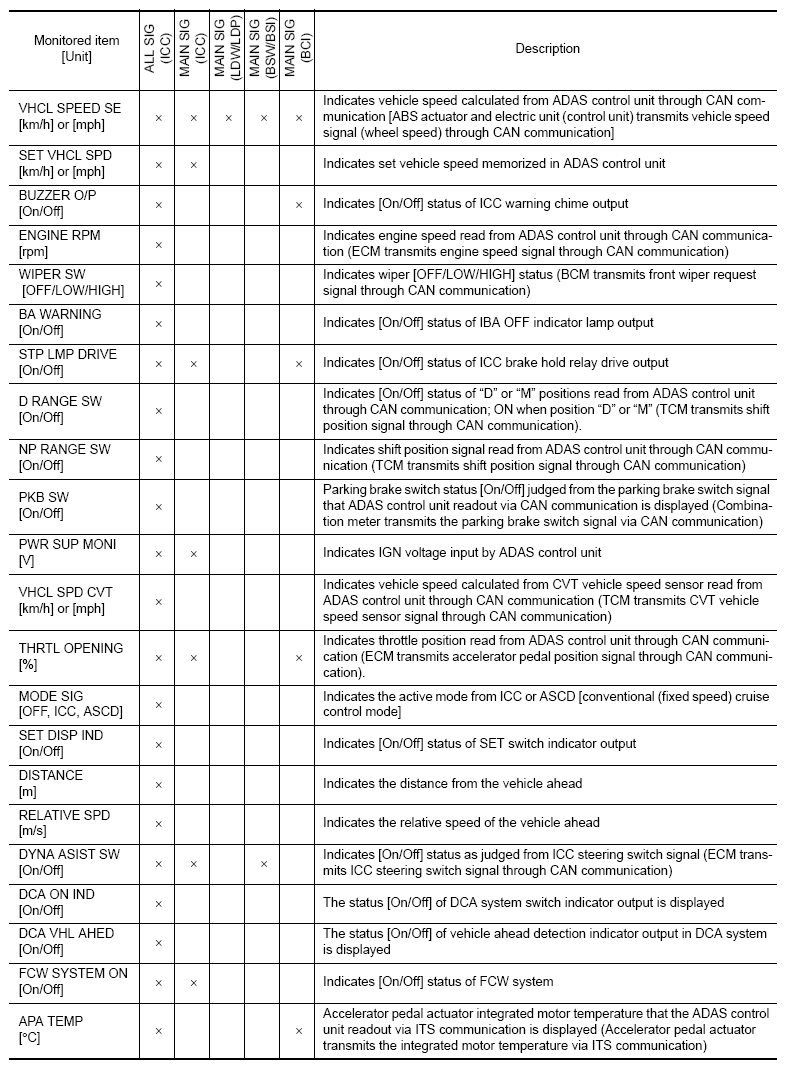

Fig 2: Data Monitor Self Diagnostic Result Chart (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

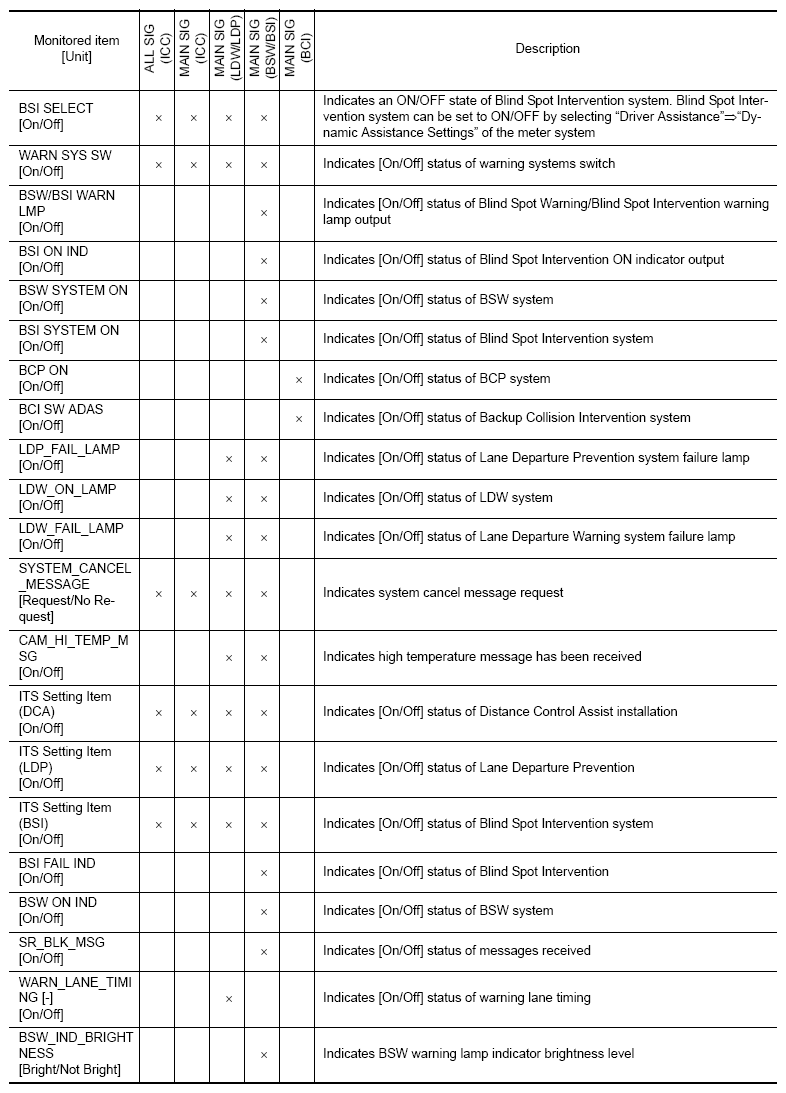

Fig 3: Data Monitor Self Diagnostic Result Chart (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

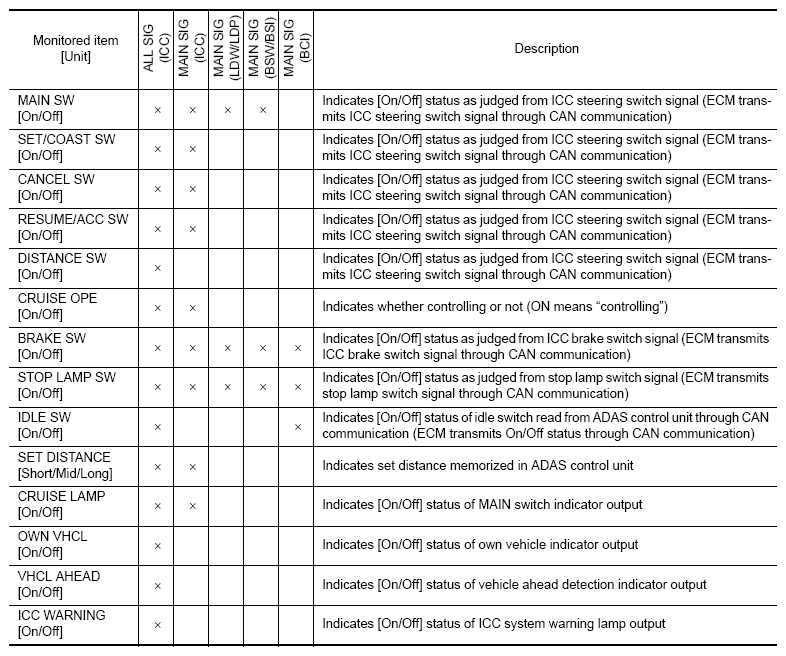

Fig 4: Data Monitor Self Diagnostic Result Chart (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

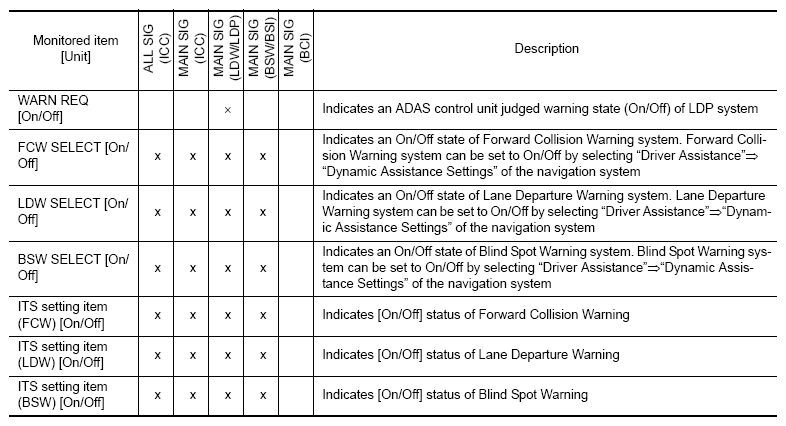

Fig 5: Data Monitor Self Diagnostic Result Chart (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
