Terminal Layout

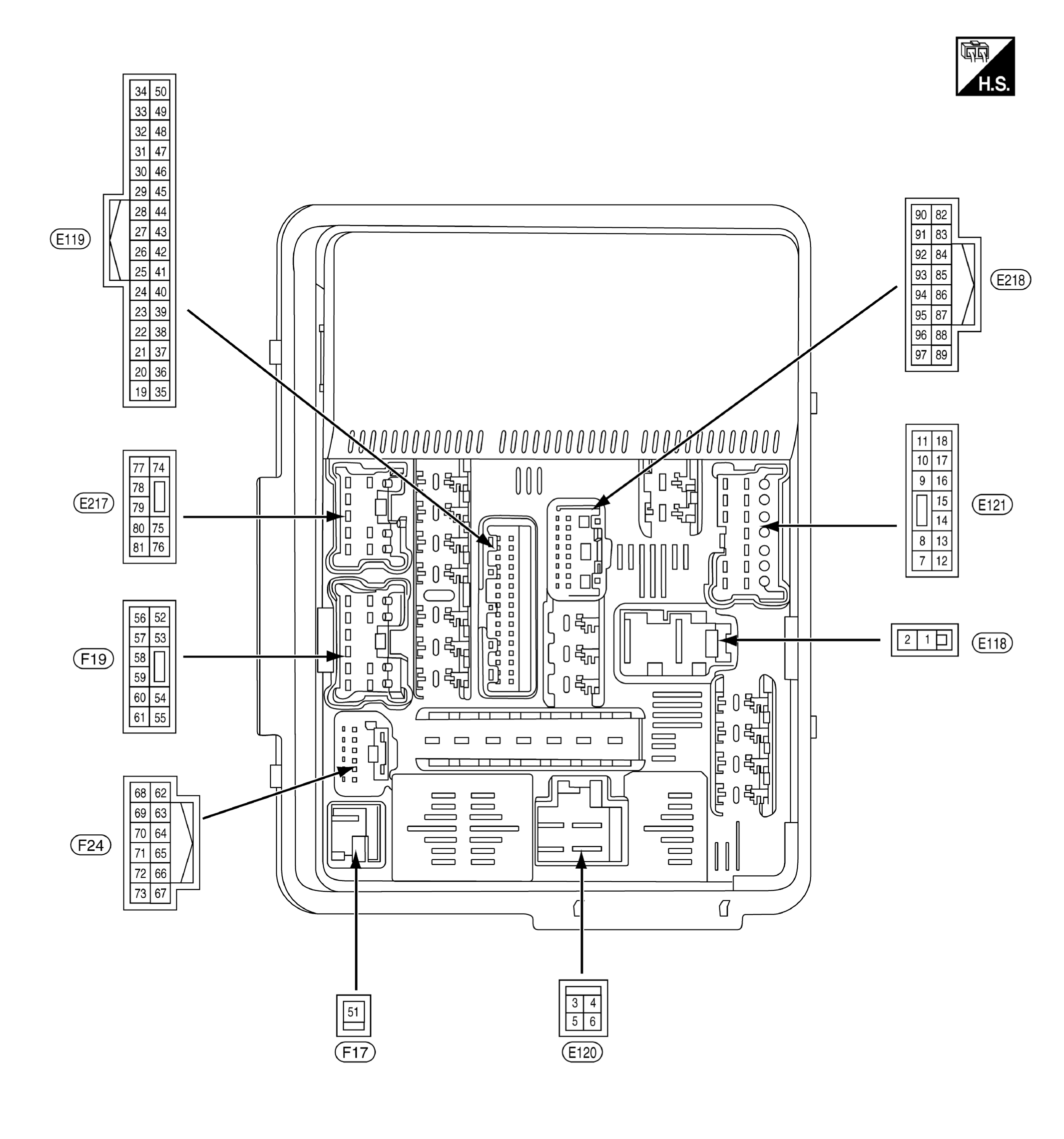

Fig 1: Intelligent Power Distribution Module Engine Room Terminal Connector End View
G08857428Courtesy of NISSAN NORTH AMERICA, INC.
