Operation And Display
Plasmacluster™ ion display
- Plasmacluster™ control state is indicated on the display unit.
- Plasmacluster™ ion display is switched as shown in the figure depending on air flow.
NOTE:
- Plasmacluster™ ion technology developed by Sharp Corporation is installed in this item.
- Plasmacluster™ is a trademark of Sharp Corporation.
- When air flow is small
Courtesy of NISSAN NORTH AMERICA, INC.
- When air flow is large
Courtesy of NISSAN NORTH AMERICA, INC.

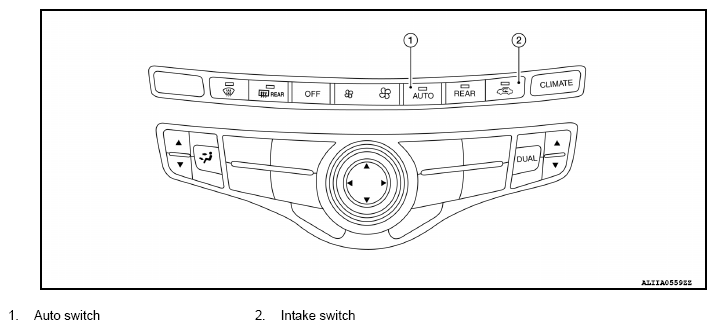

Controller (A/C and AV switch assembly)
Courtesy of NISSAN NORTH AMERICA, INC.
| Switch name |
Function |
| AUTO switch |
Turns the switch indicator lamp and "AUTO" indicator on the display ON, and then front air conditioning system becomes the following state.
- Air inlet: Automatic control
- Air outlet: Automatic control
- Blower fan: Automatic control
- Compressor: ON
|
| Intake switch |
- Automatic intake control (exhaust gas/outside odor detecting mechanism) mode (switch indicator) changes between ON ↔ OFF each time when auto intake switch is pressed while front blower motor is activated.
- When auto intake switch turns ON, front air conditioning system becomes the following status.
- A/C switch: ON
- Air inlet: Recirculation [After approximately 5 minutes, air inlet is switched to automatic intake control (exhaust gas/outside odor detecting mechanism).]
- When auto intake switch turns ON → OFF, air inlet becomes the fresh air intake.
|
