Disassembly and Assembly: Assembly

Apply Three Bond 1111B or equivalent to inner socket and turn pinion fully to retract inner socket into gear housing assembly.
Install large end (1) of boot (2) to gear housing assembly.
Install small end (3) of boot (2) to inner socket boot mounting groove.

Fig 1: Identifying Gear Housing Assembly Large And Small Boot End
Courtesy of NISSAN NORTH AMERICA, INC.

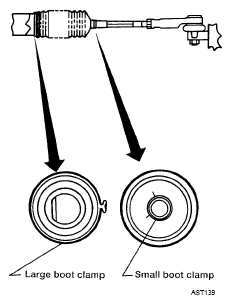

Install boot clamp to boot small end.
Install boot clamp to boot large end using Tool.
CAUTION: Do not reuse boot clamps.

Tool number: KV40107300 (-)

Fig 2: Installing Boot Clamps Using Tool
Courtesy of NISSAN NORTH AMERICA, INC.
Adjust inner socket to standard length (L), and then tighten lock nut to the specified torque. Check length of inner socket (L) again after tightening lock nut. Make sure that the length is the standard.
Inner socket length (L): Refer to "POWER STEERING GEAR ".

CAUTION: Adjust toe-in after this procedure. The length achieved after toe-in adjustment is not necessarily the above value.

Fig 3: Measuring Inner Socket Length
Courtesy of NISSAN NORTH AMERICA, INC.
