Component Inspection
- CHECK BATTERY CURRENT SENSOR
- Turn ignition switch OFF.
- Reconnect harness connectors disconnected.
- Disconnect battery negative cable.

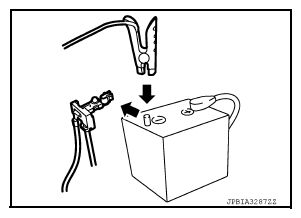

- Install jumper cable between battery negative terminal and body ground.
- Turn ignition switch ON.
- Check the voltage between ECM harness connector terminals under the following conditions.
ECM Voltage (V) Connector + - Terminal Terminal F52 66 68 Approx. 2.5 Courtesy of NISSAN NORTH AMERICA, INC.
Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to "HOW TO HANDLE BATTERY ".
Is the inspection result normal?
YES: INSPECTION END
NO: Replace battery negative cable assembly.
