Work Procedure

CHECK IGNITION TIMING
1. Attach timing light to loop wires (1) as shown below.
  - Timing light (A)
  - ←: Vehicle front

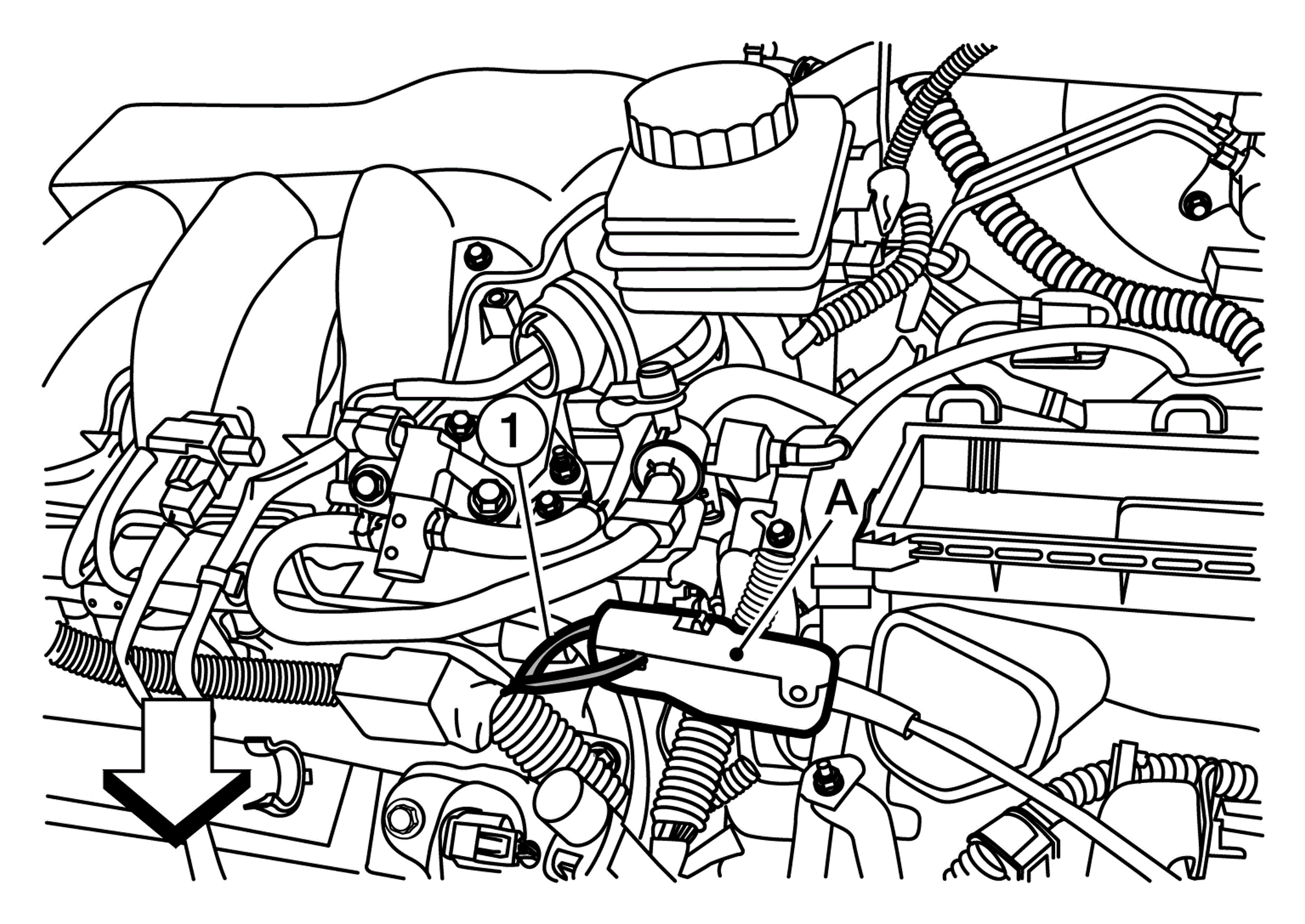

    Fig 1: Attaching Timing Light To Loop Wires
    Courtesy of NISSAN NORTH AMERICA, INC.
2. Check ignition timing.
  : INSPECTION END

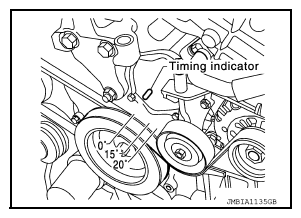

  Fig 2: Locating Timing Indicator And Timing Marks
  Courtesy of NISSAN NORTH AMERICA, INC.
