Voluntary Safety Recall Campaign Occupant Classification System Control Unit Replacement (ITB16-018C)

Publication date: 2016-09-08
Reference number: ITB16-018C
Supersedes refnos: ITB16-018, ITB16-018A, ITB16-018B

VOLUNTARY SAFETY RECALL CAMPAIGN OCCUPANT CLASSIFICATION SYSTEM CONTROL UNIT REPLACEMENT

VOLUNTARY SAFETY RECALL CAMPAIGN OCCUPANT CLASSIFICATION SYSTEM CONTROL UNIT REPLACEMENT

SERVICE CAMPAIGN BULLETIN

Reference Number(s): ITB16-018c, Date of Issue:  September 8, 2016
INFINITI: 2013 JX; 2014-2016 QX60, QX60 Hybrid, Q50, Q50 Hybrid
CAMPAIGN I.D.#/NHTSA #: R1606/16V-244
APPLIED VEHICLES: 2013 JX (L50); 2014-2016 QX60 (L50); 2014-2016 QX60 Hybrid (L50); 2014-2016 Q50 (V37); 2014-2016 Q50 Hybrid (V37)
NOTE: This bulletin has been amended. Availability information for the BOSCH MTS 6513 has been revised. No other changes were made. Please discard previous versions of this bulletin.
Check Service COMM to confirm campaign eligibility.

INTRODUCTION

Infiniti is conducting a Voluntary Safety Recall Campaign on certain specific Infiniti Vehicles, listed in APPLIED VEHICLES above, to replace the Occupant Classification System (OCS) control unit. This service will be performed at no charge to owners for parts or labor.

IDENTIFICATION NUMBER

Infiniti has assigned identification number R1606 to this campaign. This number must appear on all communications and documentation of any nature dealing with this campaign.

DEALER RESPONSIBILITY

It is the dealer's responsibility to check Service Comm for the campaign status on each vehicle falling within the range of this voluntary safety recall campaign which for any reason enters the service department. This includes vehicles purchased from private parties or presented by transient (tourist) owners and vehicles in a dealer's inventory. Federal law requires that new vehicles in dealer inventory which are the subject of a safety recall must be corrected prior to sale. Failure to do so can result in civil penalties by the National Highway Traffic Safety Administration.  While federal law applies only to new vehicles, Infiniti strongly encourages dealers to correct any used vehicles in their inventory before they are retailed.

CAMPAIGN INFORMATION

Front Passenger Air Bag Status Light

Performing the procedures in this bulletin (campaign R1606) changes the operation of the passenger air bag status light.

  • After performing this campaign, the passenger air bag status light will be ON (illuminated) when the front passenger seat is empty.
    G10955440

Air Bag Warning Light

This campaign does not change the operation of the air bag warning light

G10955441

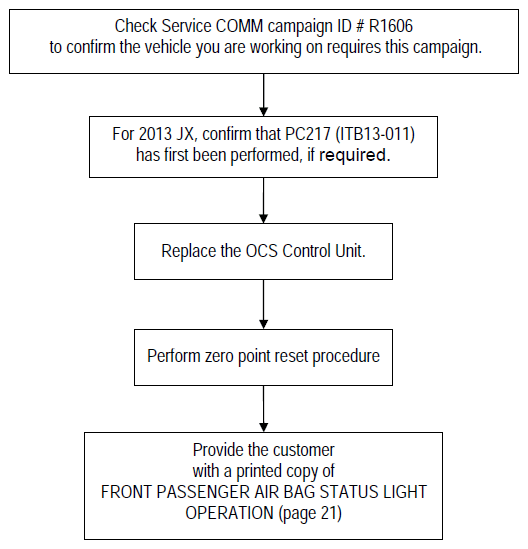

Repair Overview

G10955442

SERVICE PROCEDURE

JX, QX60 and QX60 Hybrid

  1. Turn the ignition ON, engine OFF.
  2. Write down the radio settings.
    RADIO SETTING POSITION

    Presets 1 2 3 4 5 6
    AM
    FM 1
    FM 2
    SAT 1
    SAT 2
    SAT 3
    Bass Treble Balance Fade Speed Sen. Vol.
  3. If equipped  , write down the customer preferred setting for the Automatic Air Conditioning System.
    • If needed, refer to System Settings in the HAC section of the Electronic Service Manual (ESM).
  4. Turn the ignition OFF.

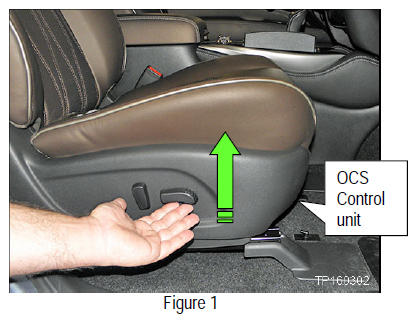

  5. Raise the front passenger seat cushion all the way up.
    • Raising the seat cushion will give additional working space to access the OCS control unit.
  6. Disconnect the Negative terminal of the vehicle 12V battery.
    • Refer to the ESM section, PG - Power, Supply & Ground Elements  for the procedure to disconnect the 12V battery.
      G10955443
  7. Wait three minutes before continuing.
  8. Locate the OCS control unit under the front edge of the seat cushion.
  9. Disconnect the harness connector.

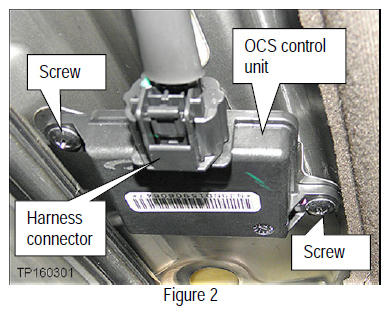

  10. Remove the two screws and then remove the OCS control unit.
    G10955444
  11. Select the correct OCS control unit (ODS ECU) from Parts Information and confirm that the pin count is the same as the OCS control unit being replaced.
  12. Install the new OCS control unit in reverse order.
  13. Connect the Negative battery terminal cable.
  14. Reset/reinitialize systems as needed.
    • Refer to the ESM section, PG - Power, Supply & Ground Elements  for a listing of systems that require reset/initialization after reconnecting the 12V battery.
    • Look in the PG section index for ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL  .
    • This list often includes items such as radio, power windows, clock, sunroof, etc.
  15. Proceed to ZERO POINT RESET (USING CONSULT-III PLUS) .

Q50 and Q50 Hybrid

  1. Turn the ignition ON, engine OFF.
  2. Write down the radio settings.
    RADIO SETTING POSITION

    Presets 1 2 3 4 5 6
    AM
    FM 1
    FM 2
    SAT 1
    SAT 2
    SAT 3
    Bass Treble Balance Fade Speed Sen. Vol.
  3. If equipped  , write down the customer preferred setting for the Automatic Air Conditioning System.
    • If needed, refer to System Settings in the HAC section of the Electronic Service Manual (ESM).
  4. Turn the ignition OFF.

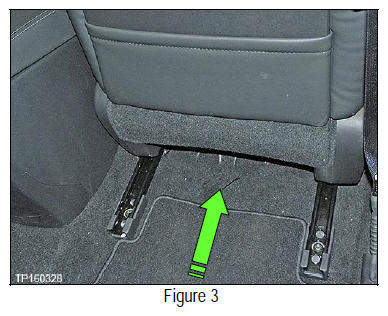

  5. Move the passenger seat forward to gain access to the OCS control unit.
    G10955445
  6. Disconnect the Negative terminal of the vehicle 12V battery.
    • Refer to the ESM section, PG - Power, Supply & Ground Elements  for the procedure to disconnect the 12V battery.
  7. Wait three minutes before continuing.

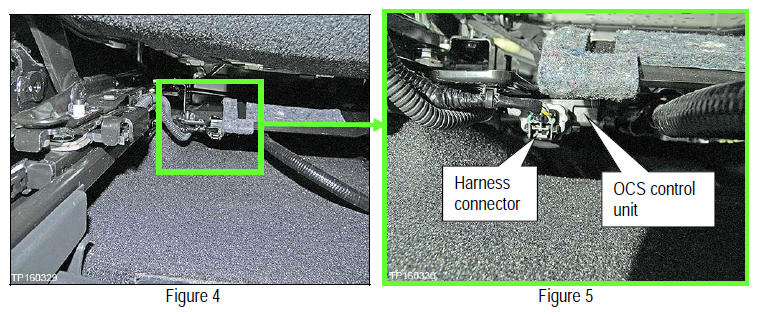

  8. Locate the OCS control unit under the center left side of the seat cushion (see Figures 3, 4, and 5).
  9. Disconnect the OCS harness connector (Figures 4 and 5).
    G10955446

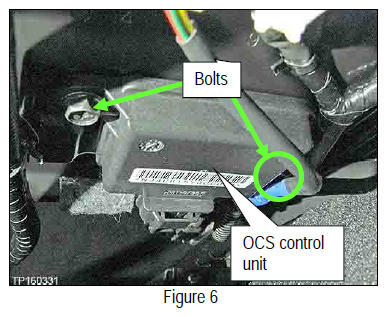

  10. Remove the two bolts and then remove the OCS control unit.
    • The second bolt is located on the opposite side of the OCS control unit where indicated in Figure 6.
      G10955447
  11. Select the correct OCS control unit (ODS ECU) from Parts Information and confirm that the pin count is the same as the OCS control unit being replaced.
  12. Install the new OCS control unit in reverse order.
  13. Connect the Negative battery terminal cable.
  14. Reset/reinitialize systems as needed.
    • Refer to the ESM section, PG - Power, Supply & Ground Elements  for a listing of systems that require reset/initialization after reconnecting the 12V battery.
    • Look in the PG section index for ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL  .
    • This list often includes items such as radio, power windows, clock, sunroof, etc.
  15. Proceed to ZERO POINT RESET (USING CONSULT-III PLUS) .

Zero Point Reset (using CONSULT-III plus)

NOTE: Zero point reset can also be done using BOSCH MTS 6513 (see ALTERNATIVE METHOD TO PERFORM ZERO POINT RESET FOR CAMPAIGN R1606 ).
  1. Prepare the vehicle for OCS zero point reset as follows:
    • Level the vehicle
    • No objects on the passenger seat.
    • No occupants in the vehicle - including the servicing technician.
    • PC is outside of the vehicle on a suitable support.
      • Do not set the PC on the vehicle.
    • Do not touch the vehicle during the OCS zero point reset.
    • Minimize vibrations of the vehicle.
  2. Connect the CONSULT PC to the vehicle with plus VI.
  3. Open/start CONSULT-III PLUS (C-III plus).
  4. Turn the ignition ON, with engine OFF (engine not running/not in ready mode).
  5. Wait for the plus VI to be recognized.
    • The Serial No. will display when the plus VI is recognized.
  6. Select Diagnosis (One System)  .

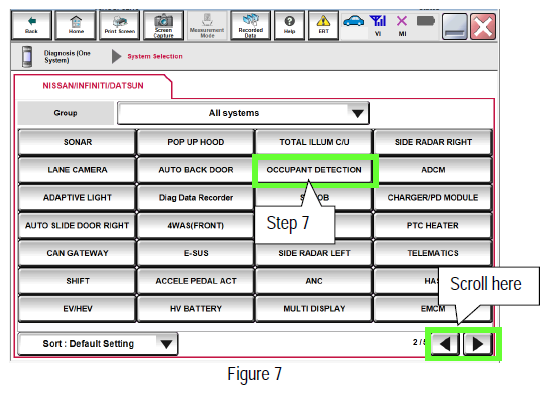

  7. Scroll C-III plus (All systems) and select OCCUPANT DETECTION  .
    G10955448

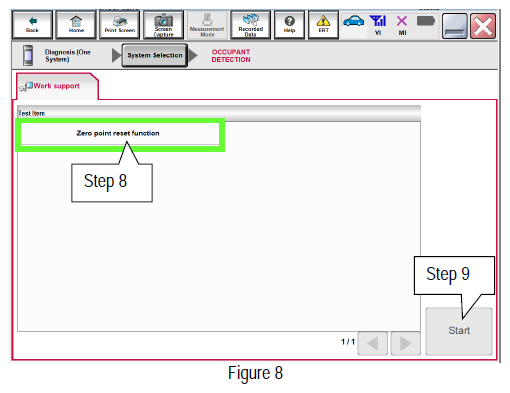

  8. Select Zero point reset function  .
  9. Select Start  .
    G10955449

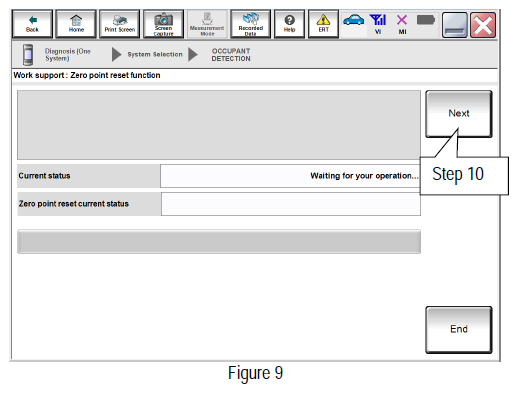

  10. Select Next  .
    G10955450

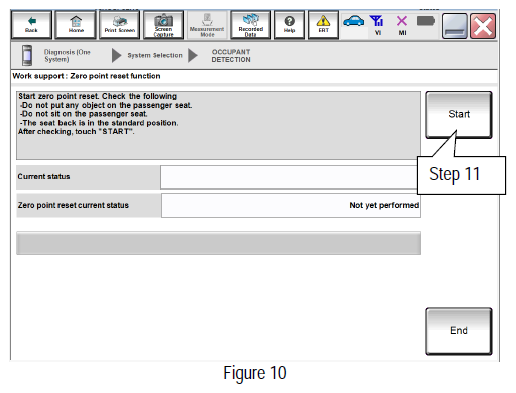

  11. Select Start  and then proceed to step 12.

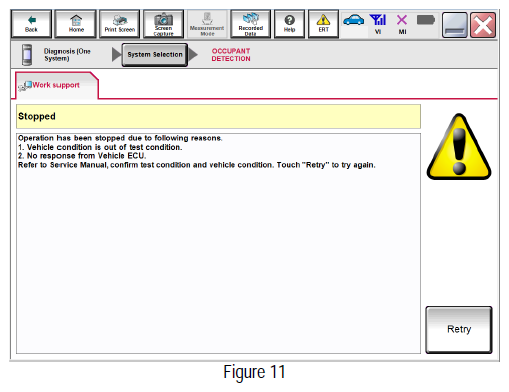

    • After selecting Start  if Figure 11 is displayed:
      1. Check the OCS control unit and confirm that harness connector is completely seated.
      2. Turn the ignition OFF and then restart procedure from step  4.
        G10955451
        G10955452

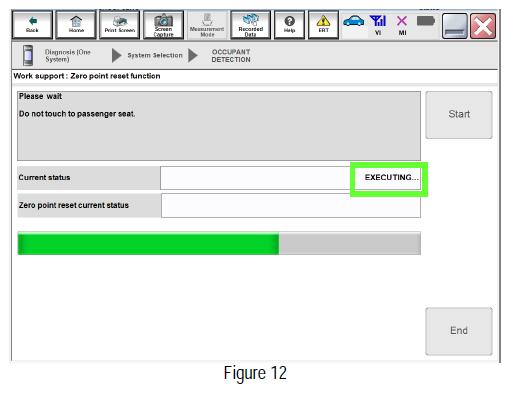

  12. Zero point reset will display "EXECUTING".
    G10955453

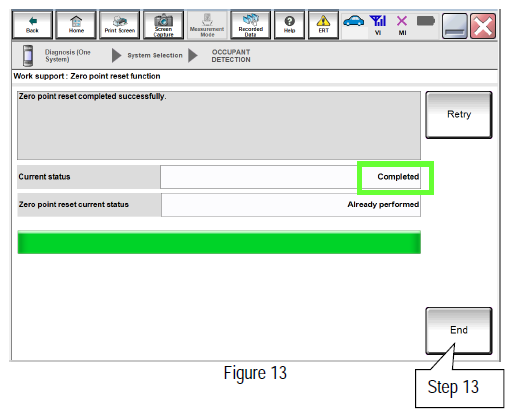

  13. When finished, "Completed" will display next to "Current status".
    • Select End  and then proceed to step 14.
      G10955454
  14. Turn the ignition OFF and then back ON and observe the air bag warning light and front passenger airbag status light:
    • Air bag warning light should illuminate for 7 seconds and then go out.
    • The front passenger airbag status light should illuminate for 7 seconds and then either stay illuminated or go out depending on the occupation of the front passenger seat.
      NOTE: If the air bag warning light or the front passenger airbag status light does not operate as described above there may be an issue not covered by this campaign. Refer to ASIST and the appropriate Service Manual for additional diagnostic and repair information.

Alternative Method to Perform Zero Point Reset For Campaign R1606

NOTE:
  • This procedure is an alternative method to perform ZERO POINT RESET FOR CAMPAIGN R1606 .
  • The primary zero point reset method is using CONSULT-III plus.
  • DO NOT perform the steps in the following pages if the procedure using CONSULT-III plus has already been performed.
  • This method uses BOSCH MTS 6513.

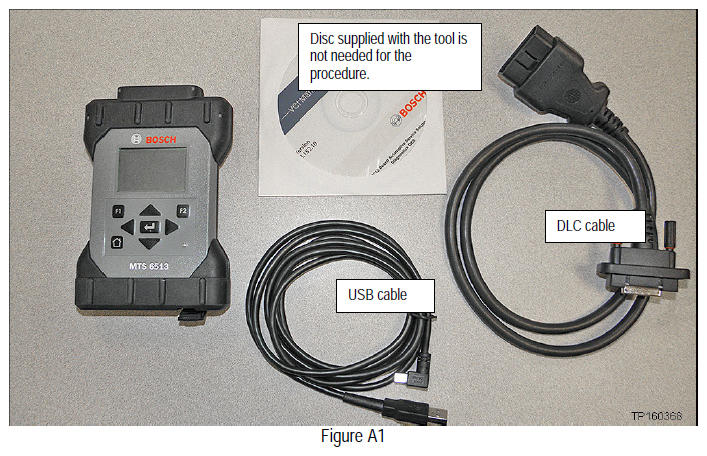

SPECIAL TOOL - BOSCH MTS 6513

G10955455

BOSCH MTS 6513

Zero Point Reset

NOTE: Screens on the BOSCH MTS 6513 indicate ACU. This stands for Airbag Control Unit, which is the same as Airbag Diagnostic Sensor Unit.
  1. Connect the BOSCH MTS 6513 to the vehicle Data Link Connector (DLC).
  2. Wait for the BOSCH MTS 6513 to boot.
    • A beep will be heard.
    • A green light on the BOSCH MTS 6513 will indicate it is powered ON.

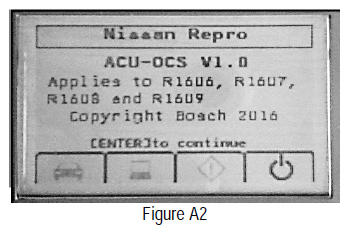

    • When boot-up is complete and the Start Screen (see Figure A2) is displayed, the BOSCH MTS 6513 is ready to perform ZERO POINT RESET .
      G10955456
      NOTE:
      • On screen instructions will help guide you through the process.
      • If the screen in Figure A2 does not display, the correct software has not been loaded into the BOSCH MTS 6513.

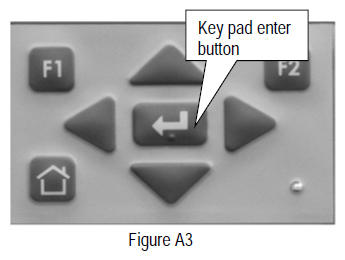

  3. Select enter on the key pad.
    NOTE: During this procedure you will be asked several times to "select enter on the key pad". Each time, use the key pad enter button shown in Figure A3.
    G10955457

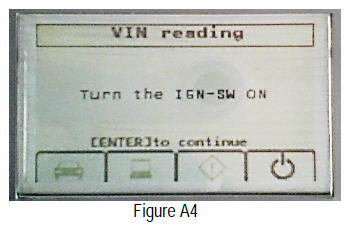

  4. Turn the ignition ON (engine OFF/not Ready).
  5. Select enter on the key pad.
    G10955458
    NOTE: The VIN is read automatically.
  6. Select enter on the key pad.
    G10955459
    NOTE:
    • System call will be perfromed.
    • Progress bar will be displayed during system call (this will occur within just a few seconds).
    • The screen in Figure A6 (next page) will dispay when system call is complete.
    • If system call does not complete and the screen in Figrue A6 does not display, the vehicle may not apply to this campaign, or the incorrect campaign is being performed.

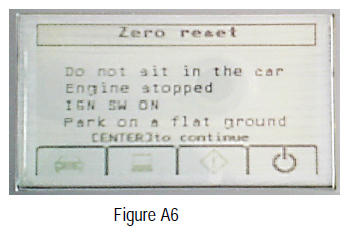

  7. When this screen displays (Figure A6), go to the next step for zero point reset preparation.
    G10955460
  8. Prepare the vehicle for zero point reset as follows:
    • Level the vehicle.
    • No objects on the passenger seat.
    • No occupants in the vehicle - including the servicing technician.
    • Do not touch the vehicle during the zero point reset.
    • Minimize vibrations of the vehicle.
  9. Select enter on the key pad.

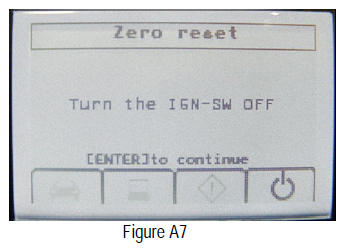

  10. Turn the ignition OFF.
  11. Select enter on the key pad.
    G10955461

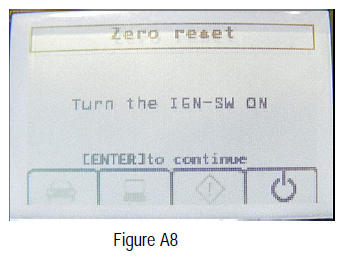

  12. Turn the ignition ON (engine OFF/not Ready).
  13. Select enter on the key pad.
    G10955462

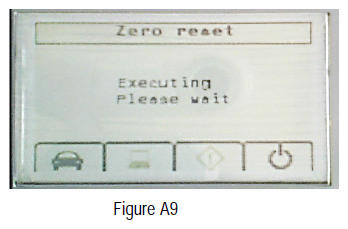

    • The screen in Figure A9 will display while zero point reset is being performed.
      G10955463

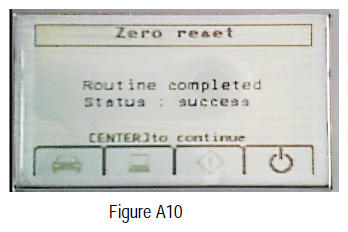

    • The screen in Figure A10 will display when zero point reset is complete.
      G10955464
  14. The reprogramming process is complete. Select the enter button on the key pad to display the result screens.
  15. Turn the ignition OFF.
  16. Disconnect the BOSCH MTS 6513 from the vehicle DLC.
    IMPORTANT: Make sure the BOSCH MTS 6513 powers down (wait about 30 seconds) before connecting to another vehicle. This will confirm any saved vehicle information is erased.
  17. Turn the ignition ON and observe the air bag warning light and the front passenger air bag status light:
    • The air bag warning light should illuminate for 7 seconds and then go out.
    • The front passenger airbag status light should illuminate for 7 seconds and then either stay illuminated or go out, depending on the occupation of the front passenger seat.
      NOTE: If the air bag warning light or the front passenger airbag status light does not operate as described above, there may be an issue not covered by this campaign. Refer to ASIST and the appropriate ESM for additional diagnostic and repair information.

PART INFORMATION

PART INFORMATION

Model year and date (Mo/Yr) Description PART # Quantity
JX 2013; All ODS ECU (16  pin connector) 98856-9NA5A 1
QX60 2014; All ODS ECU (16  pin connector) 98856-9NF8A 1
2015; manufacture date (MO/YR) 11/14 and before
All vehicles with manufacture date (MO/YR) 12/14  ODS ECU (16  pin connector) 98856-9NF8A (1) 1
ODS ECU (10  pin connector) 98856-9ND5A (1)
2015; manufacture date (MO/YR) 01/15 and after ODS ECU (10  pin connector) 98856-9ND5A 1
2016
Q50 2014; manufacture date (MO/YR) 11/13 and before ODS ECU (16  pin connector) 98856-6HC0A 1
All vehicles with manufacture date (MO/YR) 12/13  ODS ECU (16  pin connector) 98856-6HC0A (1) 1
ODS ECU (10  pin connector) 98856-6HB0K (1)
2014; manufacture date (MO/YR) 1/14 and after ODS ECU (10  pin connector) 98856-6HB0K 1
2015-2016

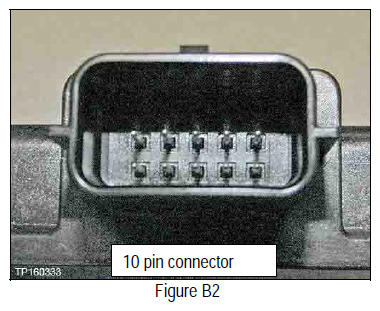

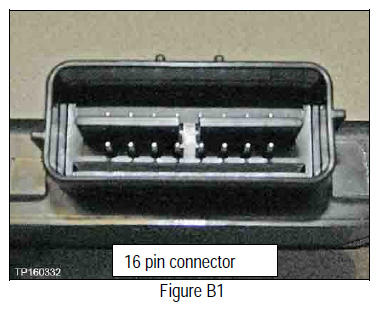

(1) Confirm that the number of pins of the new part are the same as the original (see Figures B1 and B2 below).
G10955465
G10955466

CLAIMS INFORMATION

Submit a "CM" line claim using the following claims coding:

CLAIMS INFORMATION (QX60, Q50)

CAMPAIGN ("CM") I.D. DESCRIPTION OP CODE FRT
R1606 Replace ODS ECU (OCS control unit) R16060 0.7 hrs.

OR

CLAIMS INFORMATION (QX60 HYBRID, Q50 HYBRID)

CAMPAIGN ("CM") I.D. DESCRIPTION OP CODE FRT
R1606 Replace ODS ECU (OCS control unit) R16061 0.8 hrs.

FRONT PASSENGER AIR BAG STATUS LIGHT OPERATION

NOTE: Please print this page and place a copy in the vehicle.

Recall Campaign R1606 changes the operation of the passenger air bag status light.

Below is additional information regarding the operation of the passenger air bag status light.

The front passenger seat is equipped with an occupant classification sensor (weight sensor) that turns the front passenger air bag on or off depending on the weight applied to the front passenger seat. The status of the front passenger air bag (ON or OFF) is indicated by the front passenger air bag status light which is located on the instrument panel. After the ignition switch is placed in the "ON" position, the front passenger air bag status light on the instrument panel illuminates for about 7 seconds and then turns off or remains illuminated depending on the front passenger seat occupied status. The light operates as follows:

G10955467
PASSENGER AIR BAG INDICATOR LIGHT DESCRIPTION

CONDITION DESCRIPTION PASSENGER AIR BAG INDICATOR LIGHT FRONT PASSENGER AIR BAG STATUS
Empty Empty front passenger seat ON (illuminated) INHIBITED
Nobody/Somebody Bag or Child or Child Restraint or Small Adult in the front passenger seat ON (illuminated) INHIBITED
Adult Adult in front passenger seat OFF (dark) ACTIVATED
