Voluntary Service Campaign 2013 JX35 ECM Reprogram For Air Fuel Sensor (ITB12-067)

Check Air Fuel (A/F) Sensor Adjustment Values

1. Connect the CONSULT PC to the vehicle.
2. Turn the ignition ON.
3. Open ASIST on the CONSULT PC and start C-III plus.

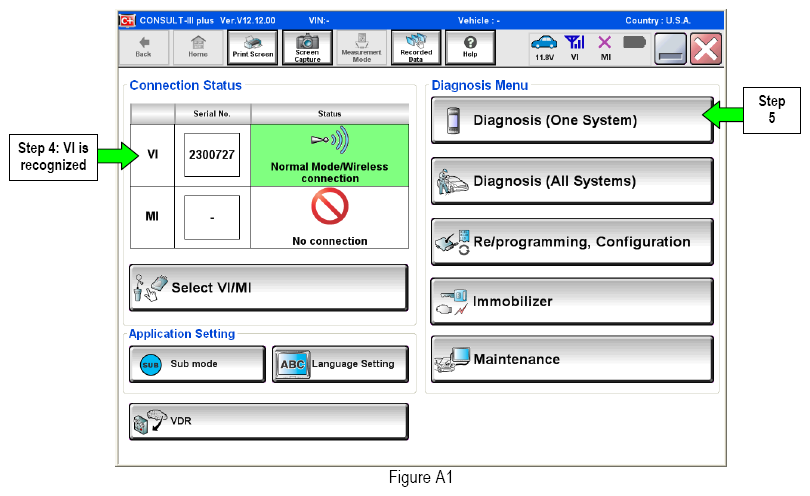

4. Wait for the plus VI to be recognized / connected.
   • Serial number will display when the plus VI is recognized / connected.
5. Select Diagnosis (One System)  .

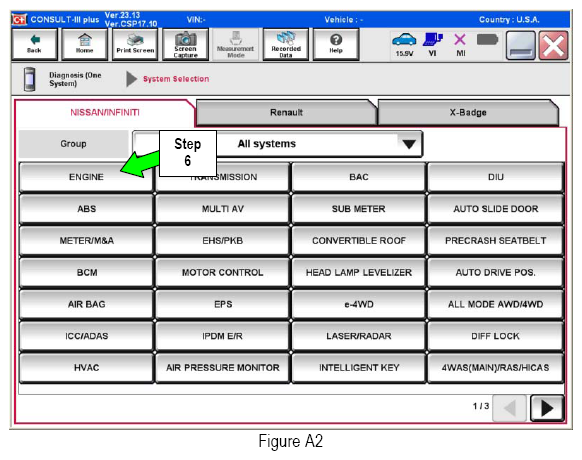

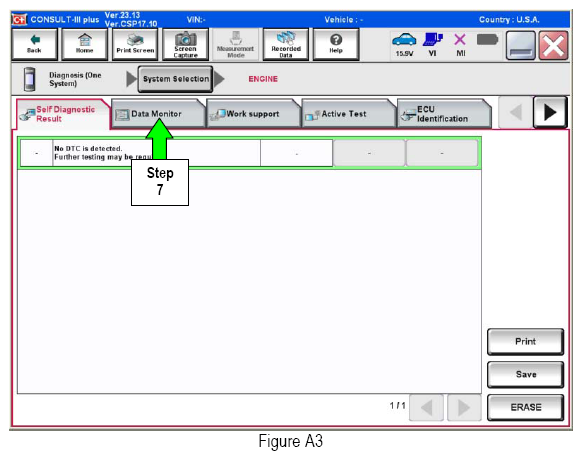

6. Select ENGINE  .
7. Select Data Monitor  .

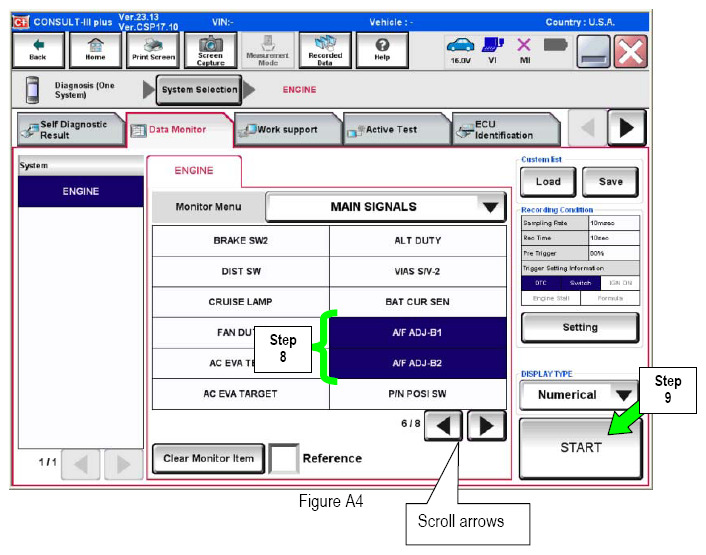

8. Select A/F ADJ-B1  and A/F ADJ-B2  .
   • Use arrows to scroll and find the above items.
9. Select Start  .

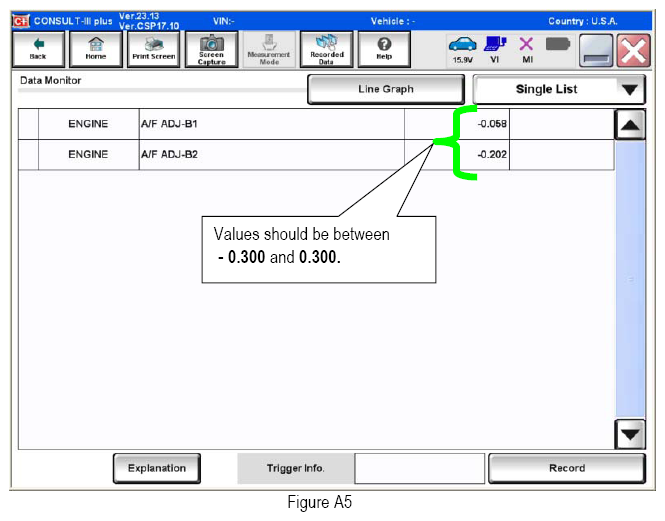

10. Check values for A/F ADJ-B1 and A/F ADJ-B2  .
    • Value for each sensor should be between - 0.300  and 0.300  .
    • If a sensor (one or both) is out of the above specified range, make a note of it.
    • Sensor(s) that are out of the specified value will be replaced later  in this procedure.
    NOTE: Most vehicles serviced under this campaign will not  require new sensors. It is expected that only 5% of serviced vehicles will need sensor replacement.

    DO NOT replace A/F sensors at this time.

    If needed, replace A/F sensors after  ECM reprogramming.

11. Go to ECM REPROGRAMMING below.

ECM Reprogramming

• Most instructions for reprogramming with CONSULT-III plus (C-III plus) are displayed on the CONSULT PC screen.
• If you are not familiar with the reprogramming procedure, click here  . This will link you to the "CONSULT-III plus (C-III plus) Reprogramming" general procedure.

Preparation for Reprogramming

1. Take the vehicle for a 10 minute drive in order to meet the following Idle Air Volume Learn (IAVL) conditions:
   • Engine coolant temperature: 70 - 100°C (158 - 212°F)
   • Battery voltage: More than 12.9V (At idle)
   • Transmission: Warmed up
   NOTE:

   • After ECM reprogramming is complete, you will be required to perform Throttle Valve Closed Position, Idle Air Volume Learn (IAVL), and Accelerator Closed Position.
   • The above conditions are required for the IAVL to complete.
   CAUTION:

   • Connect a battery charger to the vehicle battery.

     The vehicle battery voltage must stay between 12.0V and 15.5V  during reprogramming, or the ECM may be damaged  .

   • Be sure to turn OFF all vehicle electrical loads.

     If a vehicle electrical load remains ON, the ECM may be damaged  .

   • Be sure to connect the AC Adapter.

     If the CONSULT PC battery voltage drops during reprogramming, the process will be interrupted and the ECM may be damaged  .

   • Turn off all external Bluetooth® devices (e.g., cell phones, printers, etc.) within range of the CONSULT PC and the VI. If Bluetooth® signal waves are within range of the CONSULT PC during reprogramming, reprogramming may be interrupted and the ECM may be damaged  .
2. Return to the C-III plus home screen.

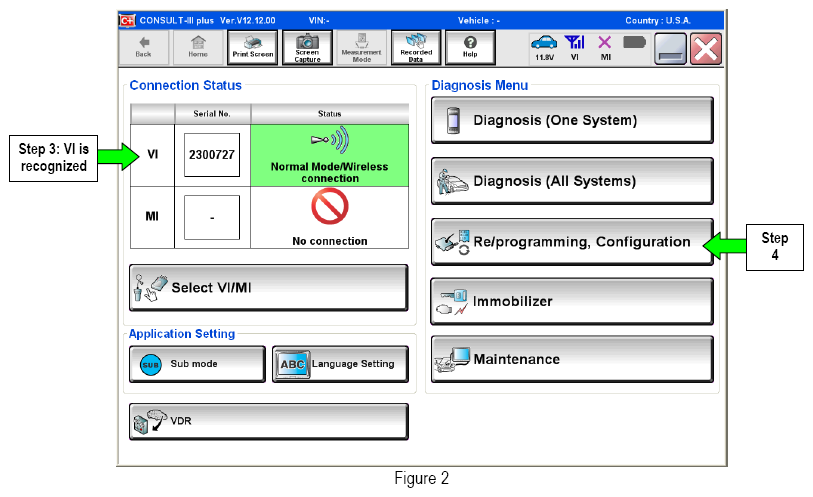

3. Confirm the VI is recognized / connected.
   • Serial number will display when the VI is recognized / connected.
4. Select Re/programming, Configuration  .
5. Follow the C-III plus on-screen instructions and navigate to the screen shown in Figure 4 down below.

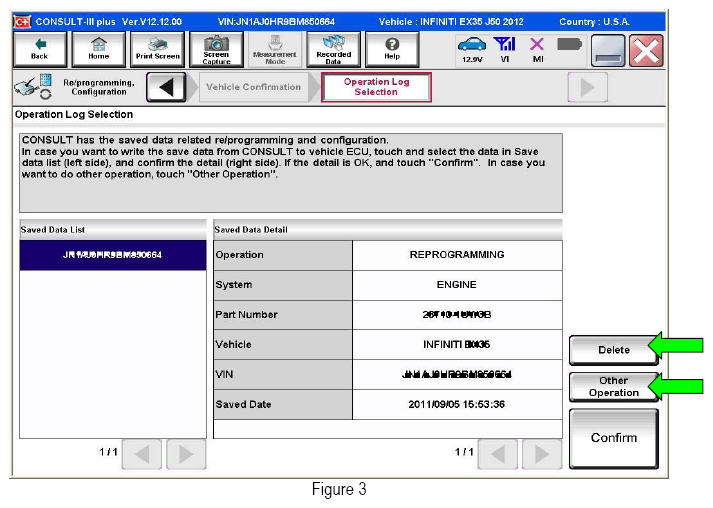

   IMPORTANT: During the initial "Reprogramming Confirmation" set-up, if you get this screen (Figure 3):


   1. Select Delete  , then
   2. Select Other Operation  , then
   3. Continue with the reprogramming procedure.
   NOTE: If reprogramming does not complete, this screen can display for reprogramming recovery. Do not select Delete if this screen displays during reprogram recovery.

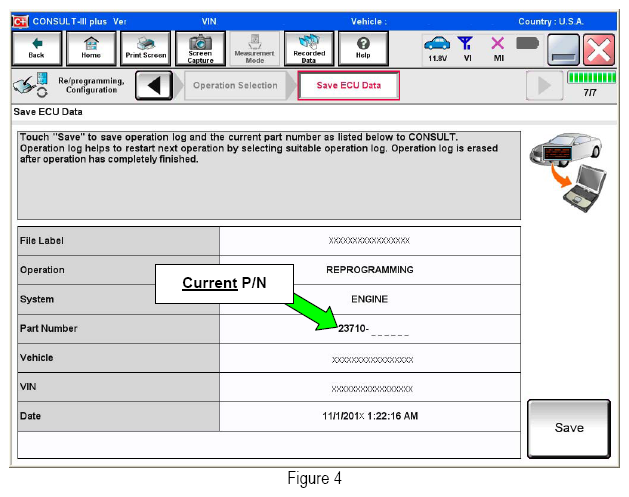

6. When you get to the screen shown in Figure 4, confirm this bulletin applies as follows:
   1. Find the ECM Part Number  and write it on the repair order.
      NOTE: This is the current  ECM Part Number (P/N).
   2. Compare the P/N you wrote down to the numbers in the Current ECM Part Number  column in Table A  below.
   • If there is a match  , this bulletin applies. Continue with the reprogramming procedure.
   • If there is not a match  , reprogramming does not apply  or it has already been done. Check Service Comm to confirm campaign eligibility.
   ECM PART NUMBER INFORMATION



   Model	Current ECM  Part Number: 23710 -
   2013 JX35	3JA1A, 3JA2A, 3JA3A, 3JA4A, 3JA5A, 3JA6A
   	3JA1B, 3JA2B, 3JA3B, 3JA4B, 3JA5B, 3JA6B

7. Follow the on-screen instructions to navigate C-III plus and reprogram the ECM.
   NOTE:

   • In some cases, more than one new P/N for reprogramming is available.

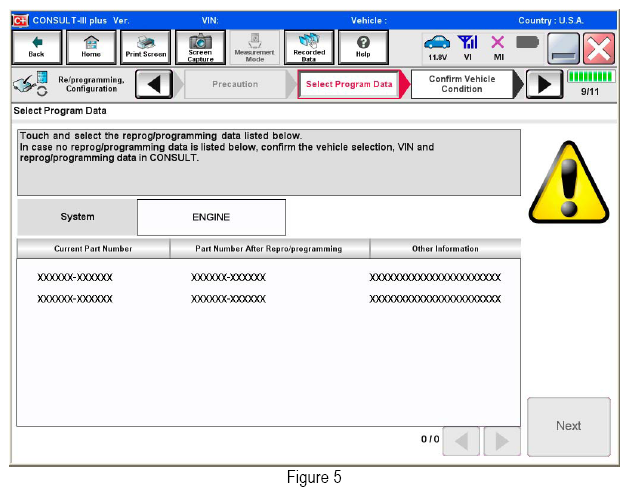

     • In this case, the screen in Figure 5 displays.
     • Select and use the reprogramming option that does not  have the message "Caution! Use ONLY with ITBXX-XXX".
   • If you get this screen and it is blank  (no reprogramming listed), it means there is no reprogramming available for this vehicle.

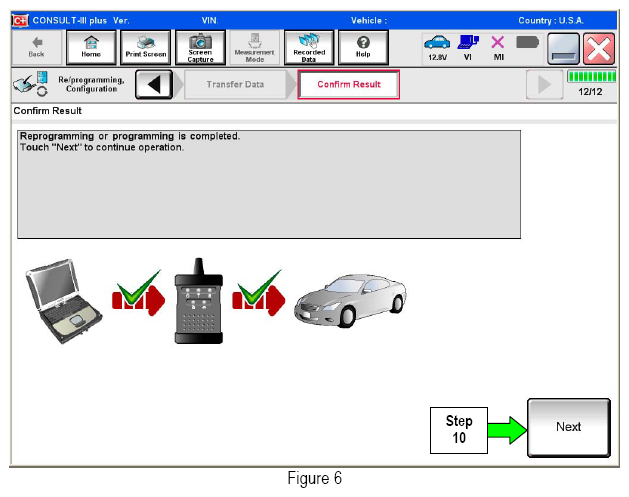

8. When the screen in Figure 6 displays, reprogramming is complete.
   NOTE: If the screen in Figure 6 does not  display (reprogramming does not  complete), refer to the information down below.
9. Disconnect the battery charger from the vehicle.
10. Select Next  .
    NOTE:

    • In the next steps down below, you will perform Throttle Valve Closed Position, Idle Air Volume Learn, Accelerator Closed Position, and DTC erase.
    • These operations are required before C-III plus will provide the final reprogramming confirmation report.

    ECM recovery:

    Do not disconnect plus VI or shut down C-III plus if reprogramming does not complete.

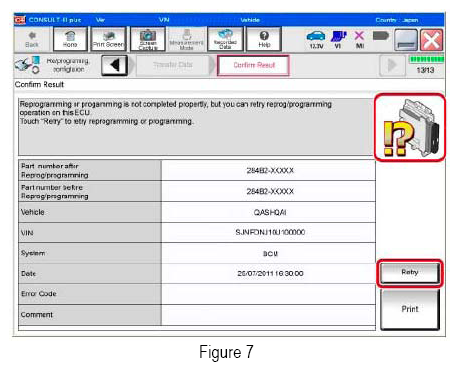

    If reprogramming does not complete and the "!?" icon displays as shown in Figure 7:

    • Check battery voltage (12.0-15.5 V)
    • Ignition is ON, engine OFF
    • External Bluetooth® devices are OFF
    • All electrical loads are OFF
    • Select retry and follow the on screen instructions
    • "Retry" may not go through on first attempt and can be selected more than once

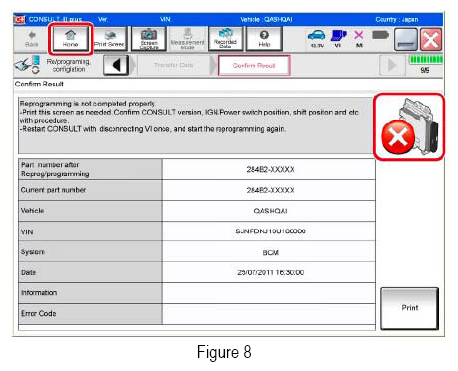

    If reprogramming does not complete and the "X" icon displays as shown in Figure 8:

    • Check battery voltage (12.0 - 15.5 V)
    • CONSULT A/C adapter is plugged in
    • Ignition is ON, engine OFF
    • Transmission is in Park
    • All C-III plus / VI cables are securely connected
    • All C-III plus updates are installed
    • Select Home, and restart the reprogram procedure from the beginning
11. Follow the on-screen instructions to perform the following:
    • Throttle Valve Closed Position
    • Idle Air Volume Learn (IAVL)
      NOTE:

      • Listed below are the conditions required for IAVL to complete.
      • If IAVL does not complete within a few minutes, a condition may be out of range.
      • Engine coolant temperature: 70 - 105° C (158 - 221°F)
      • Battery voltage: More than 12.9V (At idle)
      • Selector lever: P or N
      • Electric load switch: OFF (Air conditioner, headlamp, rear window defogger)
      • Steering wheel: Neutral (Straight-ahead position)
      • Vehicle speed: Stopped
      • Transmission: Warmed up (ATF TEMP SE less than 0.9V)
    • Accelerator Pedal Close Position Learning
    • Erase DTCs

    Continue to the information below.

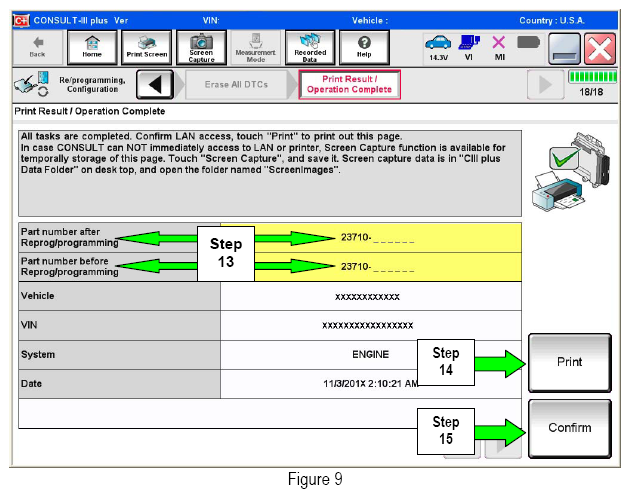

12. When the entire reprogramming process is complete, the screen in Figure 9 will display.
13. Verify the before and after part numbers are different.
14. Print a copy of this screen (Figure 9) and attach it to the repair order for warranty documentation.
15. Select Confirm  .
16. Return C-III plus to the home screen.
17. Turn the ignition OFF.
18. Disconnect the plus VI from the vehicle.
19. Go to AIR FUEL (A/F) SENSOR REPLACEMENT  below.

Air Fuel (A/F) Sensor Replacement

1. If needed, replace A/F Sensor(s).
   1. Refer back to your notes from Check Air Fuel (A/F) Sensor Adjustment  .
      • If A/F ADJ-B1  value was out of specification, replace Bank 1 A/F sensor (bank 1 is toward the rear of the vehicle).
      • If A/F ADJ-B2  value is out of specification, replace Bank 2 A/F sensor (bank 2 is toward the front of the vehicle).
      NOTE: Replace A/F sensor(s) only if value was out of specification.
   2. Refer to the Service Manual for A/F Sensor replacement information.
