CVT/TCM Calibration Data "Write" Procedure (ITB13-055D)

CVT/TCM CALIBRATION DATA "WRITE" PROCEDURE

TECHNICAL SERVICE BULLETIN

APPLIED VEHICLES

2013 JX35 (L50)

2014-2019 QX60 (L50)

APPLIED VINS/DATES: 2013 JX35:  Vehicles built after 5N1AL0M(* *)DC 343902//March 26, 2013 2014-2019 QX60: ALL

APPLIED TRANSMISSIONS:  CVT

HINT: Bulletin does not apply to QX60 Hybrid.

SERVICE INFORMATION

The SERVICE PROCEDURE  (starting on page 2) in this bulletin contains the steps to perform TCM Calibration Data "Write" Procedures. These procedures are used when a complete CVT assembly is replaced, a CVT control valve (valve body) is replaced, or a Transmission Control Module (TCM) is replaced.

• Refer to REPAIR OVERVIEW  on page 2. This is a quick reference to determine which procedures need to be performed.

HINT  : The following information may be helpful when performing the TCM Calibration Data "Write" Procedures:

• When starting the calibration "write" procedure in CONSULT-III (C-III) plus, and after selecting Start under Work Support  , the C-III plus screen may only blink.

  If this occurs, close ASIST (if open), and then select Start again.

  • If there is still no change: reboot the CONSULT PC, keep ASIST closed, and then restart this procedure from step  6 on page 5.
  • If the error "STOPPED, no comm. with ECU" shows when trying to write calibration data, verify that the vehicle is in park (P).

REPAIR OVERVIEW

PROCEDURE	VALVE BODY REPLACEMENT	TCM REPLACEMENT	CVT ASSEMBLY REPLACEMENT
Erase/Write Calibration Data	Required	Not needed	Required
Save/Write Calibration Data	Not needed	Required	Not needed
G-Sensor Learning	Not needed	Required	Not needed
Clutch Point Learning	Required	Required	Not needed
Select Learning	Required	Required	Required

SERVICE PROCEDURE

ERASE/WRITE CALIBRATION DATA WHEN REPLACING CVT OR VALVE BODY

HINT:

• Use the following steps when a CVT assembly or valve body is replaced.
• Also use the following steps if the TCM was replaced with  a CVT assembly or valve body.

Before starting, make sure:

• ASIST on the CONSULT PC has been freshly synchronized to the current date.
• All C-III plus software updates (if any) have been installed.

1. Obtain the calibration file disc (provided with the new CVT or valve body).
   • If a calibration file disc is available, continue to step 2, below.
   • If a calibration file disc is not available or was damaged, skip to OBTAINING A CALIBRATION FILE WHEN CD IS UNAVAILABLE  on page 21.

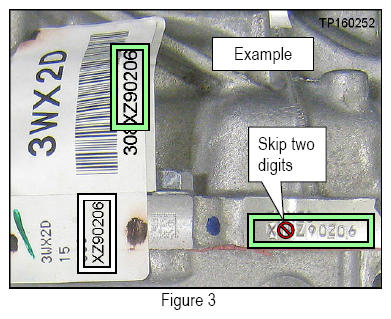

2. Match the numbers on the disc with the new CVT or new valve body and QR label.
   • See pages 3 and 4 for number matching examples.

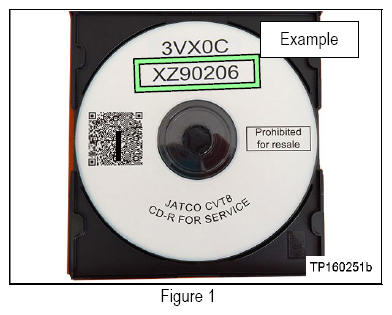

   • Disc (CD) provided with the new CVT.

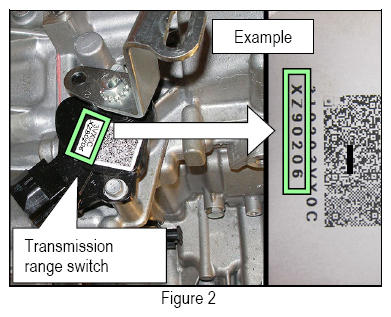

   • QR label on the new CVT is located on the Transmission range switch.
   • Calibration file number on the CVT case or label.
     IMPORTANT: All three (3) of the above numbers must be the same (they must match).
   • Disc (CD) provided with the new valve body.

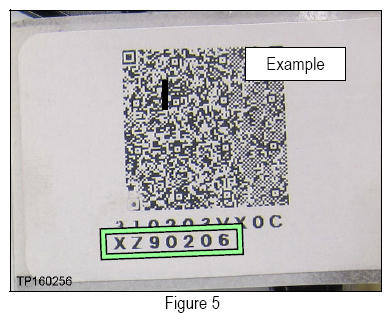

   • QR label provided with the new valve body.

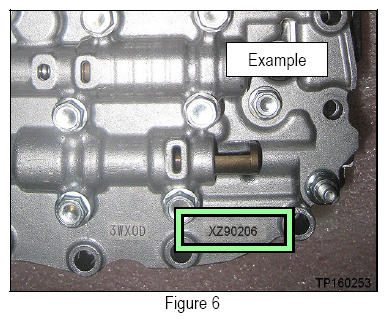

   • Calibration file number on the valve body.
     IMPORTANT: All three (3) of the above numbers must be the same (they must match).
3. Connect the external disk drive to the CONSULT PC.

   HINT:  Use the external disk drive provided with the C-III plus kit.

4. Load the CD into the external disk drive.
5. Connect the CONSULT PC to the vehicle with the VI, and then open/start C-III plus.
   • Make sure ASIST and other programs are closed.

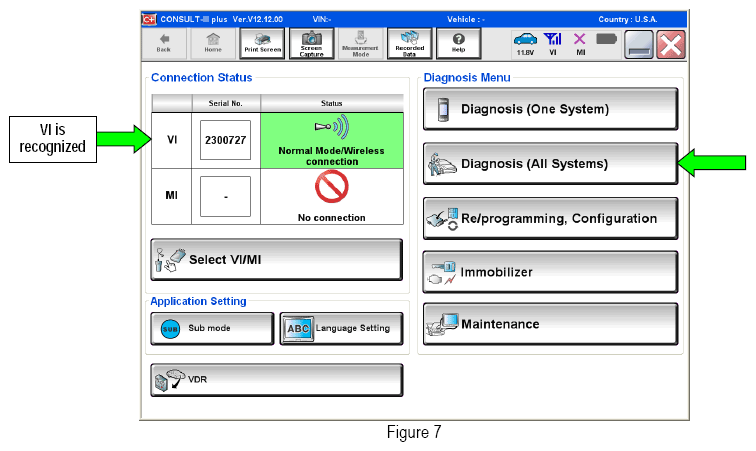

6. After the VI is recognized, select Diagnosis (All Systems).
7. Navigate C-III plus to TRANSMISSION  > Work Support.

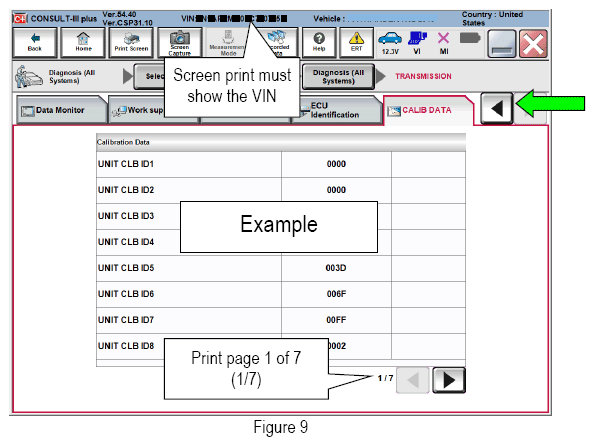

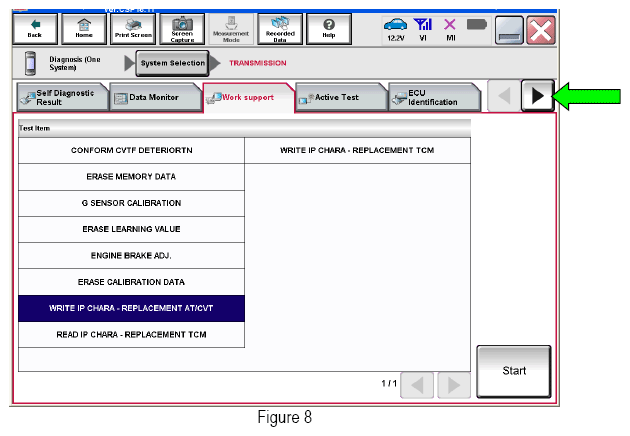

8. Select the scroll arrow shown Figure 8, and select the CALIB DATA  tab shown in Figure 9.
9. Print a copy of the screen shown in Figure 9 and attach it to the repair order.

   HINT:

   • Make sure to print page 1 of 7 (1/7).
   • This screen print is used for warranty documentation.

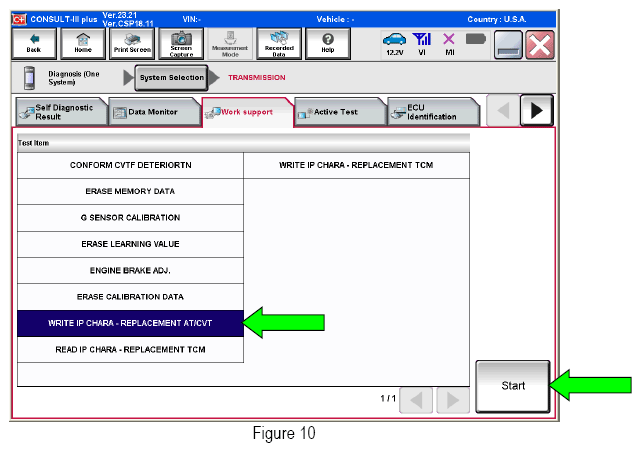

10. Select scroll arrow shown Figure 9 and select the Work support  tab as shown in Figure 10 on the next page.
11. Select WRITE IP CHARA - REPLACEMENT AT/CVT,  and then select Start.
    IMPORTANT: When starting the calibration "write" procedure in C-III plus, and after selecting Start  under Work Support,  the C-III plus screen may only blink.
    • If this occurs, confirm ASIST is closed, and then perform step 11, above.
      • If there is still no change: reboot the CONSULT PC, keep ASIST closed  , and then restart this procedure from step  1.
      • If the error "STOPPED, no comm. with ECU" shows when trying to write calibration data, verify that the vehicle is in park (P).

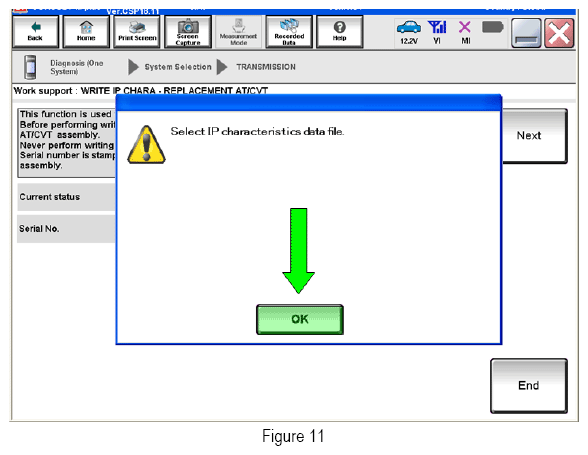

12. Select OK.

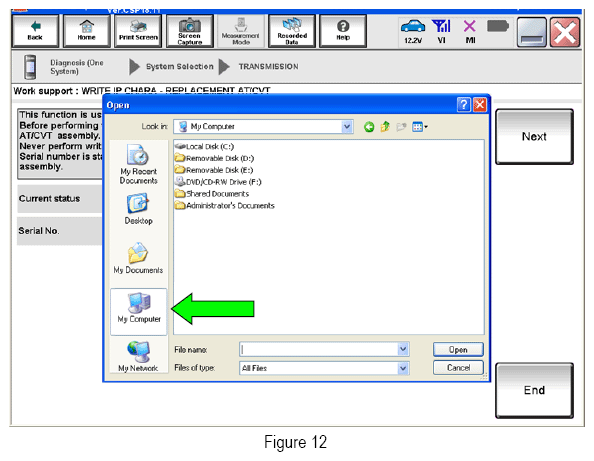

13. Select My Computer.
14. Locate the calibration file.

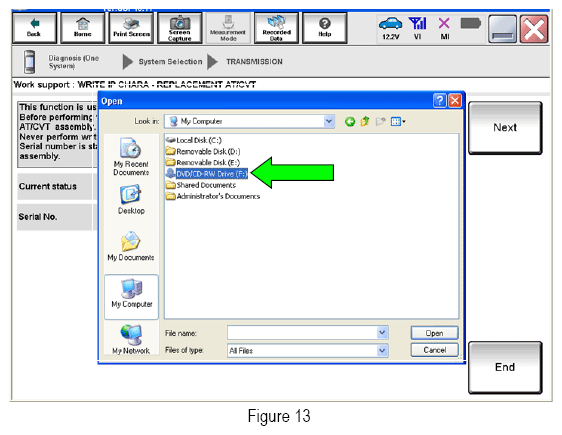

    • If a calibration file disc was available, select DVD/CD-RW Drive (F:)
    • If a calibration file disc was not  available, navigate to the file location written down in step  58 on page 23.

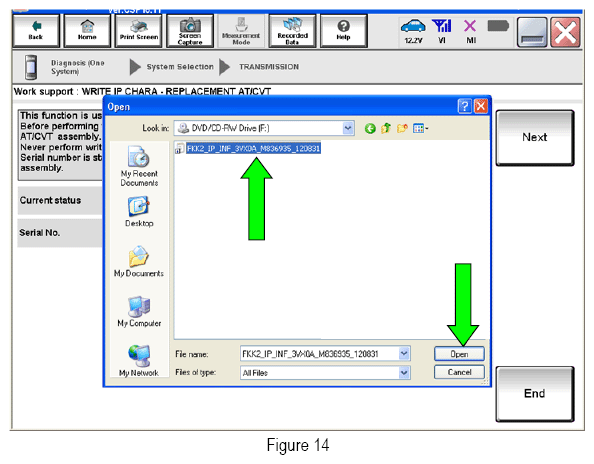

15. Highlight the file, and then select Open.

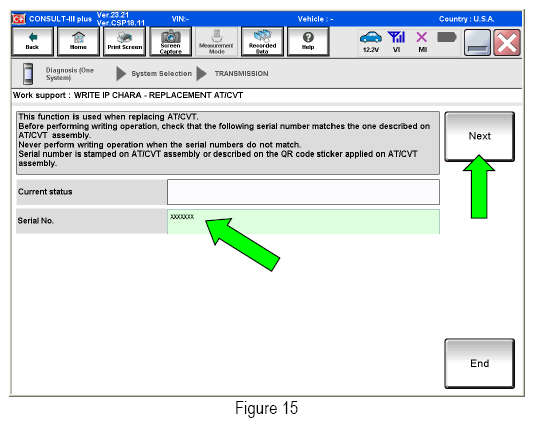

16. Verify that the Serial No.  (calibration file number) shown matches the numbers from step  2 on page 2 (see Figures on pages 3 and 4).
    • The numbers must  match.
17. Select Next.

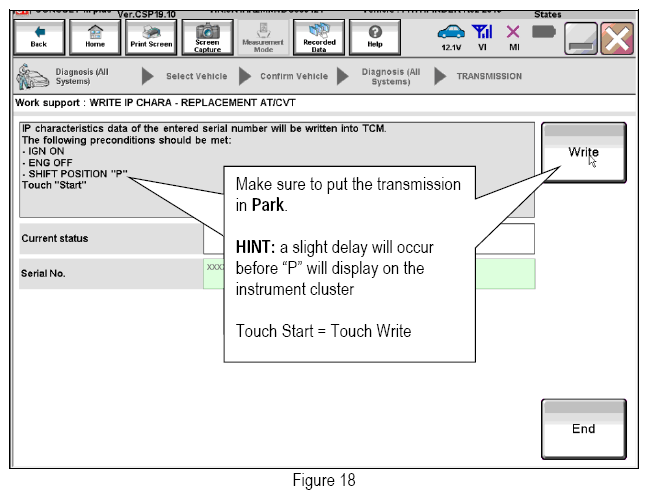

    HINT:  If the error "STOPPED, no Comm with ECU" is displayed, confirm that the vehicle is in Park.

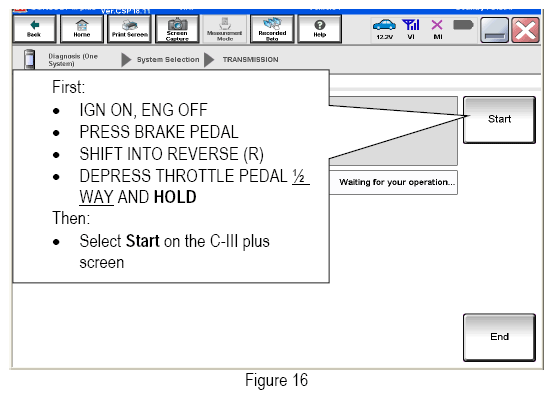

18. Before  selecting Start,  follow the directions in Figure 16.
    • Do not  follow the directions on the C-III plus screen.

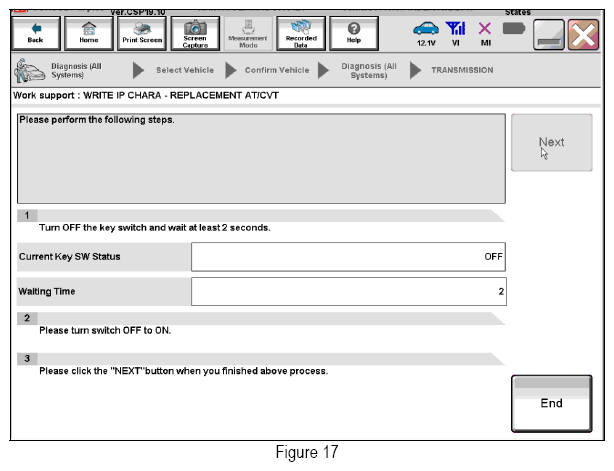

19. Follow the on screen instructions.
20. Follow the on screen instructions.

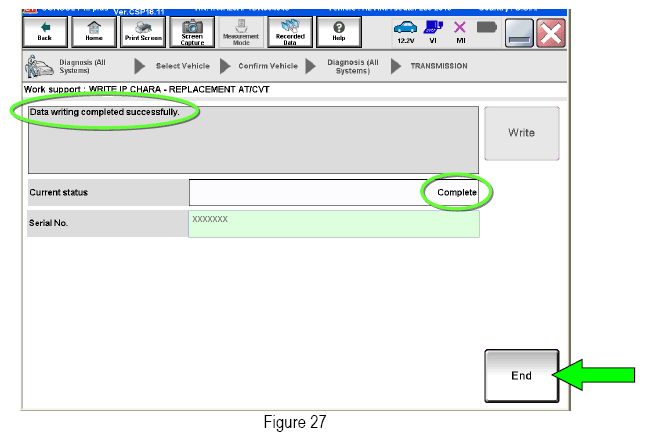

21. After "Complete" is displayed, select End.
22. Select Home  to return to the screen shown in Figure 7 on page 5.
23. Perform steps  6- 9, starting on page 5.
24. Attach the second screen print to the repair order.

    HINT:  Screen prints are used for warranty documentation.

25. Clear any DTCs that may have set.

    HINT:  Any DTCs that will not clear are not covered by this bulletin. Refer to the appropriate Electronic Service Manual (ESM) for further diagnostic information.

26. If the valve body  was replaced, perform CLUTCH POINT LEARNING  under "Transmission Work Support" in C-III plus.
    • Follow the steps for CLUTCH POINT LEARNING  exactly as presented in C-III plus.
    • If the procedure is not performed correctly, the vehicle may not move when the CVT is placed in gear.
      • If this condition occurs, cycle the ignition OFF/ON, and then perform CLUTCH POINT LEARNING  again.
27. If the CVT assembly  was replaced, do not  perform CLUTCH POINT LEARNING.
28. Perform Select Learning (Drive/Reverse Learning).
    1. Set the parking brake.
    2. Start the engine, and then wait 5 seconds.
    3. Move the shift selector to the "N" position and hold more than 2 seconds, and then move it to the "D" position and wait for transmission engagement.
    4. Repeat step  c ten (10) times.
    5. Move the shift selector to the "N" position and hold for more than 2 seconds, and then move it to the "R" position and wait for transmission engagement.
    6. Repeat step  e ten (10) times.
    7. Move the shift selector to the "P" position, and then turn the ignition OFF.
29. Test drive the vehicle.

    SAVE/WRITE CALIBRATION DATA WHEN REPLACING THE TCM

    HINT:

    • The following steps are used if the TCM only is replaced.
    • If the CVT or valve body  is being replaced, go back to page 2.

    Before starting, make sure:

    • ASIST on the CONSULT PC has been freshly synchronized to the current date.
    • All C-III plus software updates (if any) have been installed.

    Save Calibration Data Before TCM Replacement

30. Connect the CONSULT PC to the vehicle.
31. Open/start C-III plus.
    • Make sure ASIST and other programs are closed.

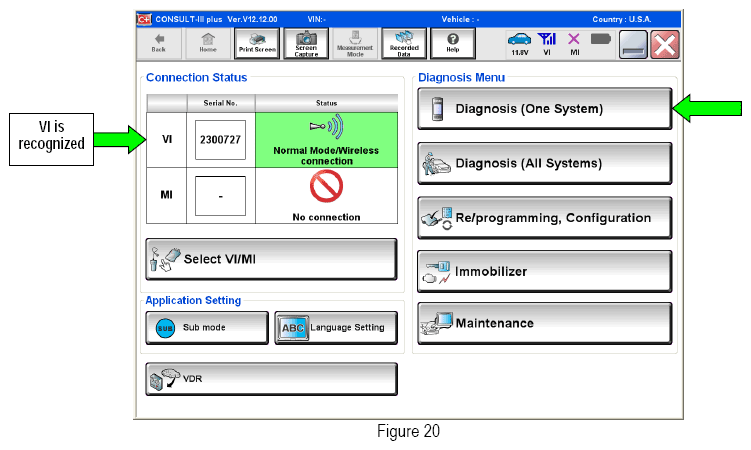

32. Wait for the VI to be recognized.
    • The serial number will display when the VI is recognized.
33. Select Diagnosis (One System).
34. Navigate C-III plus to TRANSMISSION  > Work Support.

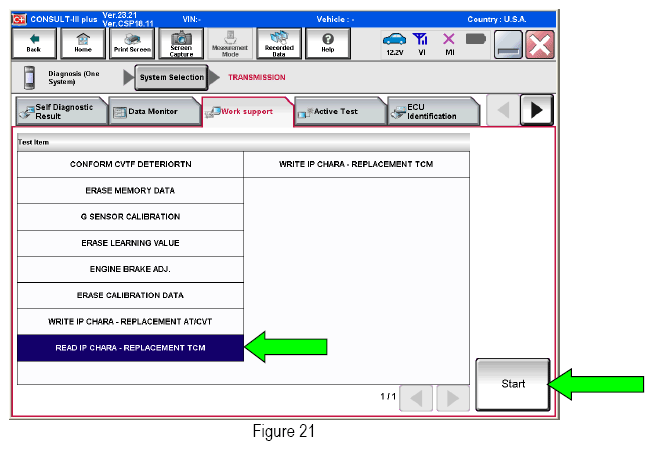

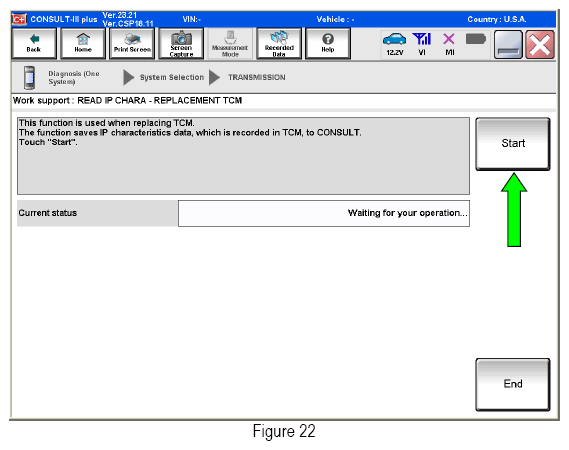

35. Select READ IP CHARA - REPLACEMENT TCM,  and then select Start.
36. Select Start.

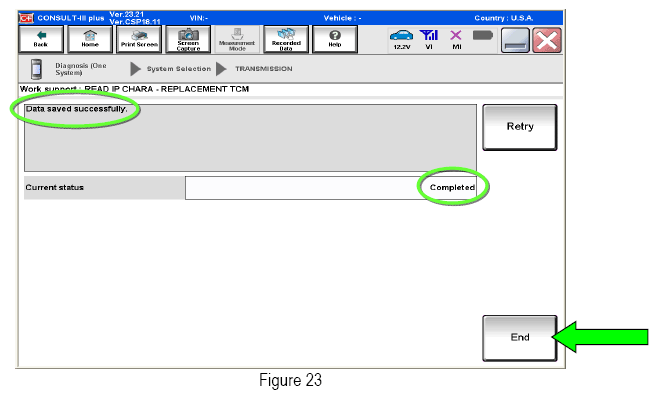

37. When the calibration data has been saved to the CONSULT PC, the message "Data saved successfully" will be displayed and Current status  will indicate "Completed".
38. Select End.
39. Replace the TCM.
40. After the TCM has been replaced, perform Write Calibration Data After TCM Replacement,  beginning on the next page.

    Write Calibration Data After TCM Replacement

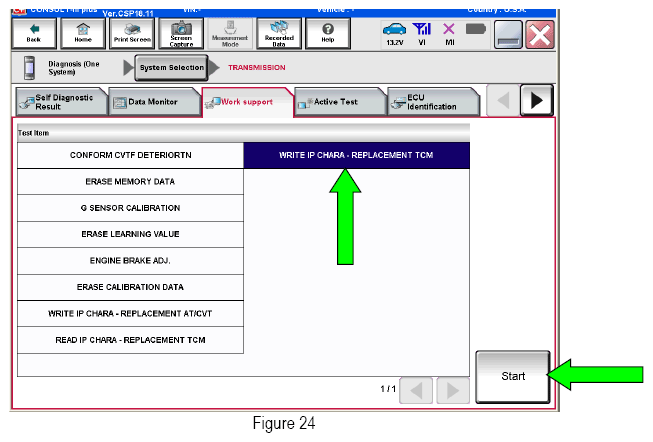

41. After the TCM has been replaced, select WRITE IP CHARA - REPLACEMENT TCM,  and then select Start.
    IMPORTANT: When starting the calibration "write" procedure in C-III plus, and after selecting Start  under Work Support,  the C-III plus screen may only blink.
    • If this occurs, confirm ASIST is closed, and then perform step 41, above.
      • If there is still no change: reboot the CONSULT PC, keep ASIST closed  , and then restart the procedure from the beginning.
      • If error "STOPPED, no comm. with ECU" shows when trying to write calibration data, verify that the vehicle is in park (P).
42. Select Start.

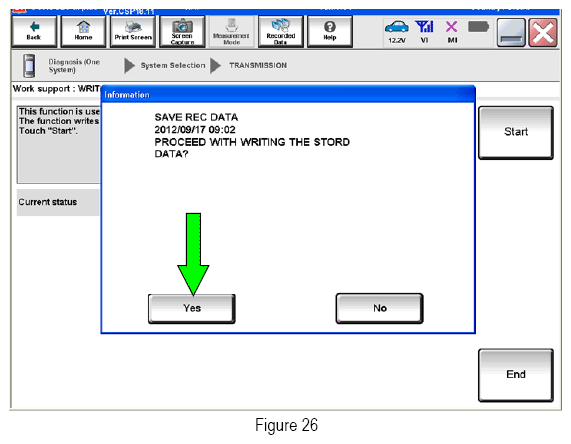

43. Select Yes.
44. When the calibration data has been written to the TCM, the message "Data writing completed successfully" will be displayed and Current status  will indicate "Complete".
45. After "Complete" is displayed, select End  to finish.
46. Clear any DTCs that may have set.

    HINT:  Any DTCs that will not clear are not covered by this bulletin. Refer to the appropriate ESM for further diagnostic information.

47. Perform G-Sensor Learning  under "Transmission Work Support" in C-III plus.
48. Perform CLUTCH POINT LEARNING  under "Transmission Work Support" in C-III plus.

    HINT:  Skip this step if the CVT assembly was replaced.

    • Follow the steps for CLUTCH POINT LEARNING  exactly as presented in C-III plus.
    • If the procedure is not performed correctly, the vehicle may not move when the CVT is placed in gear.
      • If this condition occurs, cycle the ignition OFF/ON, and then perform CLUTCH POINT LEARNING  again.
49. Perform Select Learning (Drive/Reverse Learning).
    1. Set the parking brake.
    2. Start the engine, and then wait 5 seconds.
    3. Move the shift selector to the "N" position and hold for more than 2 seconds, and then move it to the "D" position and wait for transmission engagement.
    4. Repeat step  c ten (10) times.
    5. Move the shift selector to the "N" position and hold for more than 2 seconds, and then move it to the "R" position and wait for transmission engagement.
    6. Repeat step  e ten (10) times.
    7. Move the shift selector to the "P" position, and then turn the ignition OFF.
50. Test drive the vehicle.

    OBTAINING A CALIBRATION FILE WHEN CD IS UNAVAILABLE

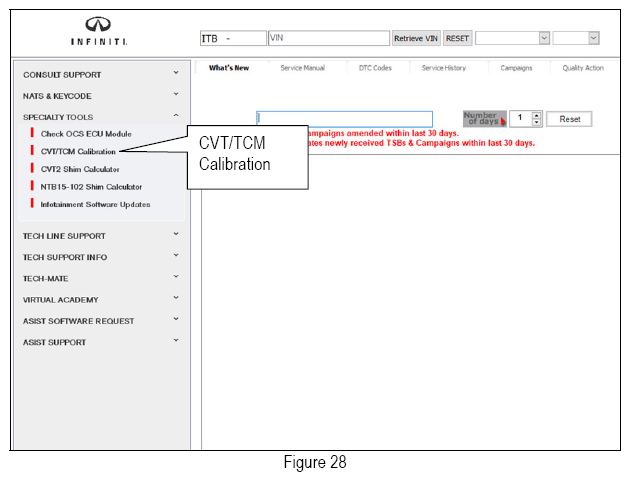

51. Open ASIST and select SPECIALTY TOOLS,  and then select CVT/TCM Calibration.

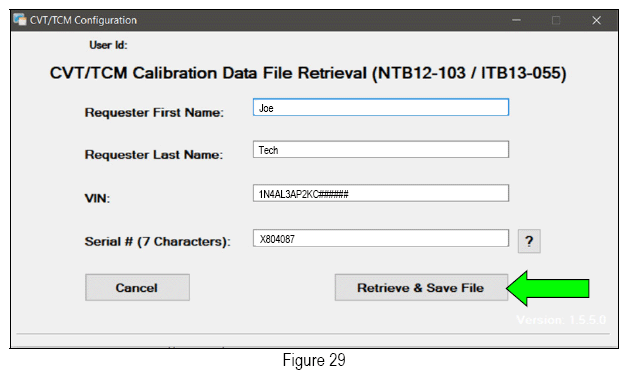

52. Enter the information into the CVT/TCM Configuration  screen as seen below.
53. Select "Retrieve & Save File."
54. Determine if the file is located in the database.

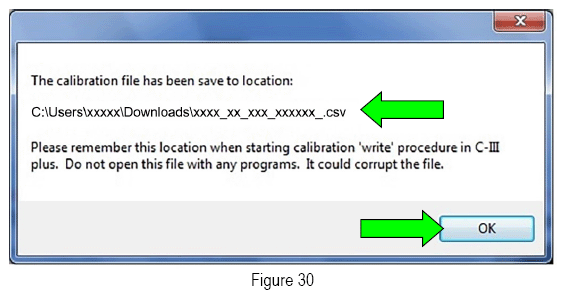

    • If the pop-up shown in Figure 30 displays:
    1. Write down the saved file location.
    2. Select OK.
    3. Return to step  5 on page 5.

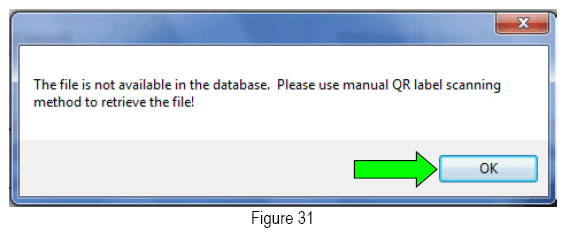

    • If the pop-up shown in Figure 31 populates, select OK  and continue to step 55, below.
55. Locate the J-52352 Quick Scan Tool (2D Bar Code Scanner) and plug it into the USB port on your computer.
    • This tool is available from TecfvMate online: www.techmatetools.com, or by phone: 1-833-397-3493.
      • When ordering, keep in mind that the tool part number prefix has changed from "J" to "NI". For example, J-52352 is now NI-52352.

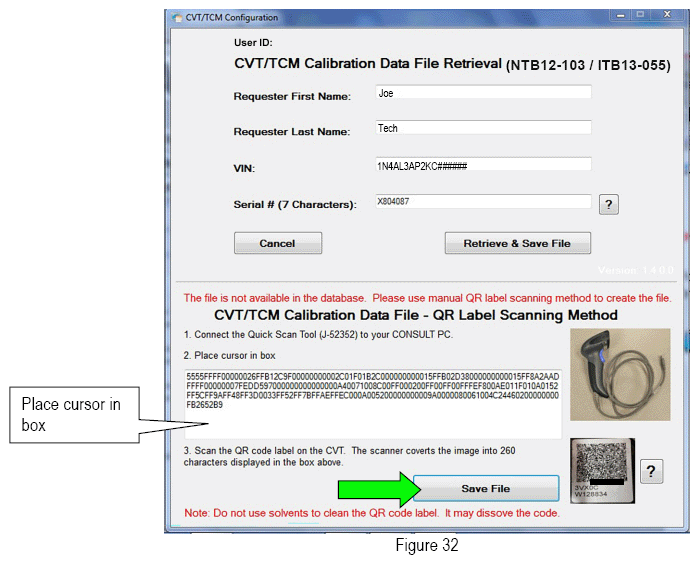

56. Place the cursor in the box shown in Figure 32, and scan the NEW  QR label.

    HINT:  The QR label is provided on the transmission range switch of the NEW  CVT (Figure 2 on page 3), or with the NEW  valve body (Figure 5 on page 4).

57. Select Save File.

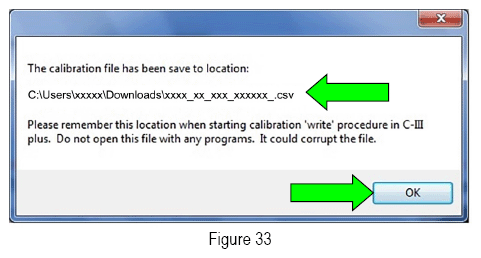

58. The new file will be located in C:\Users\xxxxx\Downloads\xxxx_xx_xxx_xxxxxx.csv.
    IMPORTANT: Write down the file location.
59. Select OK.
60. Return to step  5 on page 5.

AMENDMENT HISTORY

Published DATE	REFERENCE	DESCRIPTION
December 13, 2013	ITB13-055	Original bulletin published
March 31, 2016	ITB13-055a	APPLIED VEHICLES and SERVICE PROCEDURE sections revised
April 26, 2017	ITB13-055b	APPLIED VEHICLES, SERVICE INFORMATION, SERVICE PROCEDURE sections revised, and REPAIR OVERVIEW added
March 28, 2019	ITB13-055c	Added procedure to obtain calibration file without CD
May 8, 2023	ITB13-055D	Figure numbers, step numbers, and pages 10, 21, 22 and 23 revised; "NOTE" references changed to "HINT"
