Exploded View

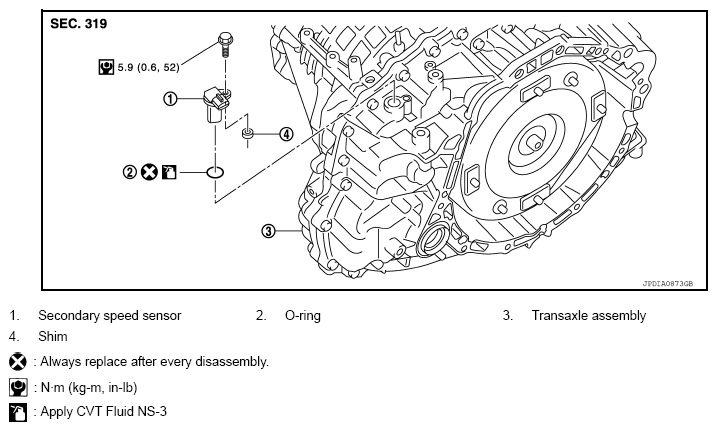

Fig 1: Exploded View Of Secondary Speed Sensor With Torque Specification
G08769406Courtesy of NISSAN NORTH AMERICA, INC.
