LOCK-UP CONTROL: System Description
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

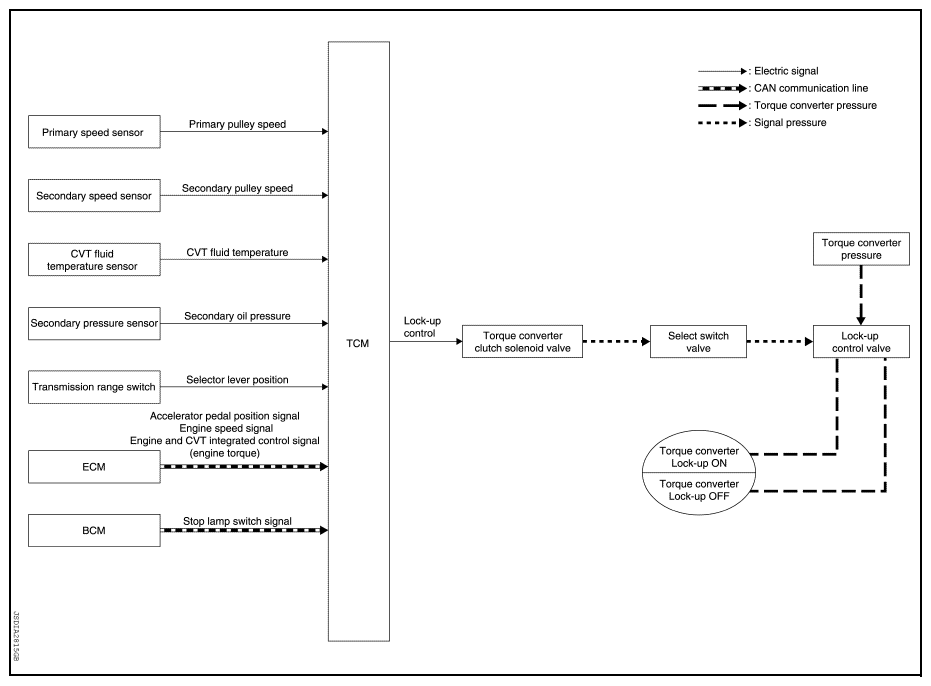

Fig 1: Lock-Up Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
