Exploded View

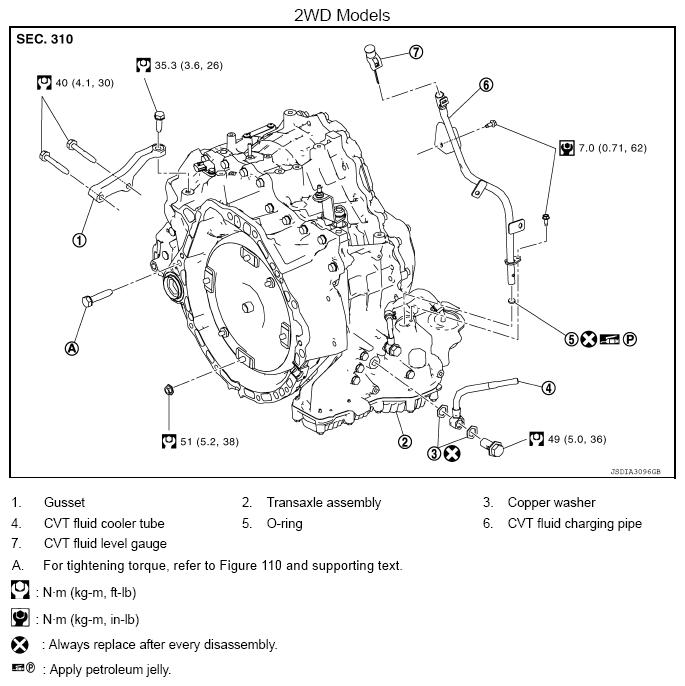

Fig 1: Exploded View Of Transaxle Assembly With Torque Specifications (2WD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

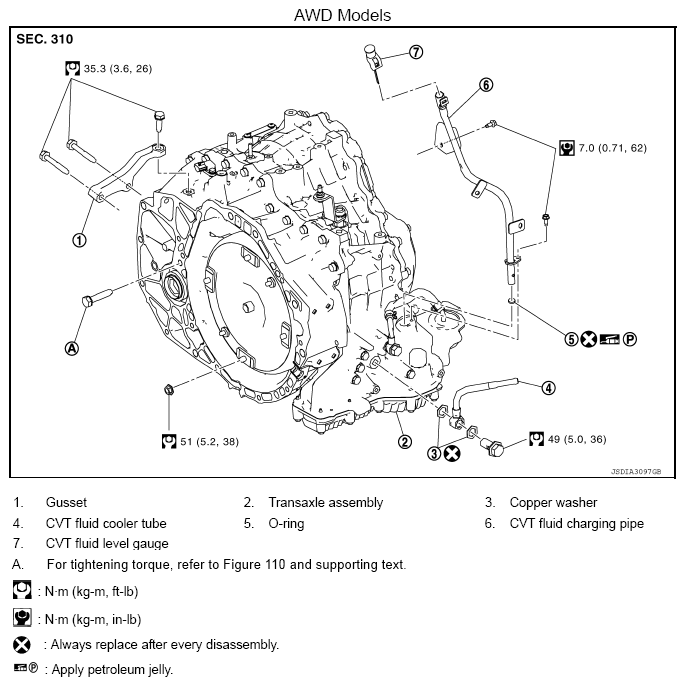

Fig 2: Exploded View Of Transaxle Assembly With Torque Specifications (AWD Models)

Courtesy of NISSAN NORTH AMERICA, INC.
