Exploded View - Front Wheel Sensor

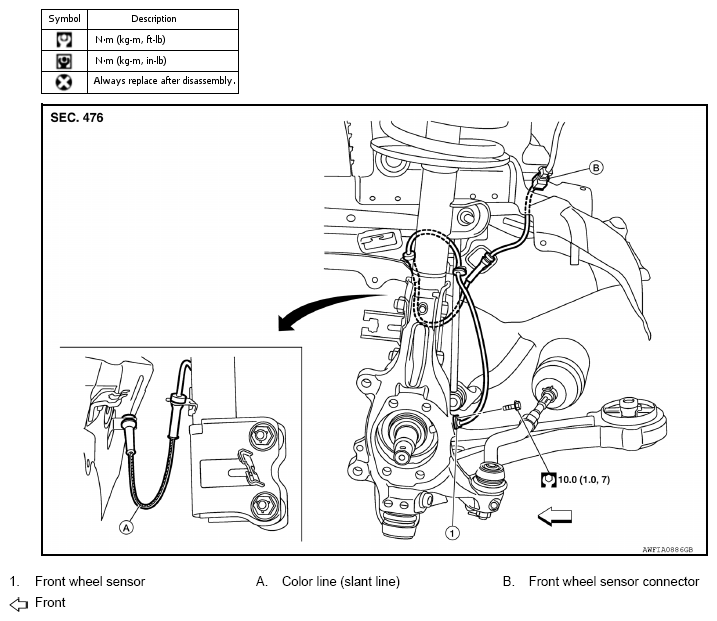

Fig 1: Exploded View Of Front Wheel Sensor With Torque Specifications
G08856581Courtesy of NISSAN NORTH AMERICA, INC.
