Exploded View

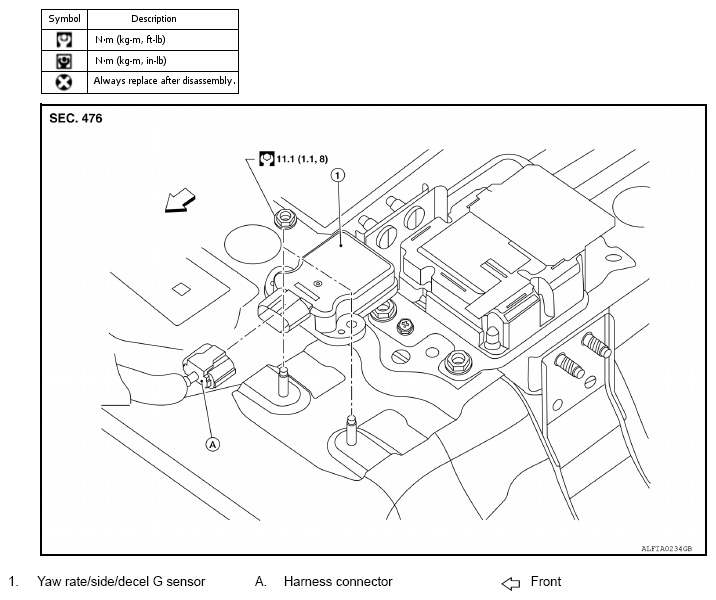

Fig 1: Exploded View Of Yaw Rate/Side/Decel G Sensor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
