Module Layout

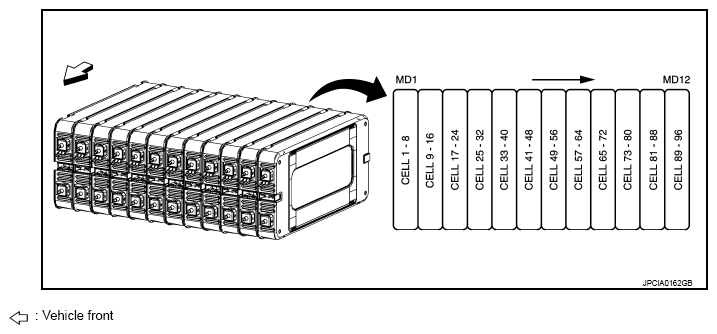

Fig 1: Li-ion Battery Module Layout
G08898543Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: Module 1 (MD1) has the highest electrical potential, and module 12 (MD12) has the lowest electrical potential.
