Normal Control

Each clutch is adjusted to the necessary pressure to match the engine and motor drive force.

It judges the vehicle drive mode based on the driving mode signal transmitted by HPCM and adjusts the line pressure to give the most appropriate value.

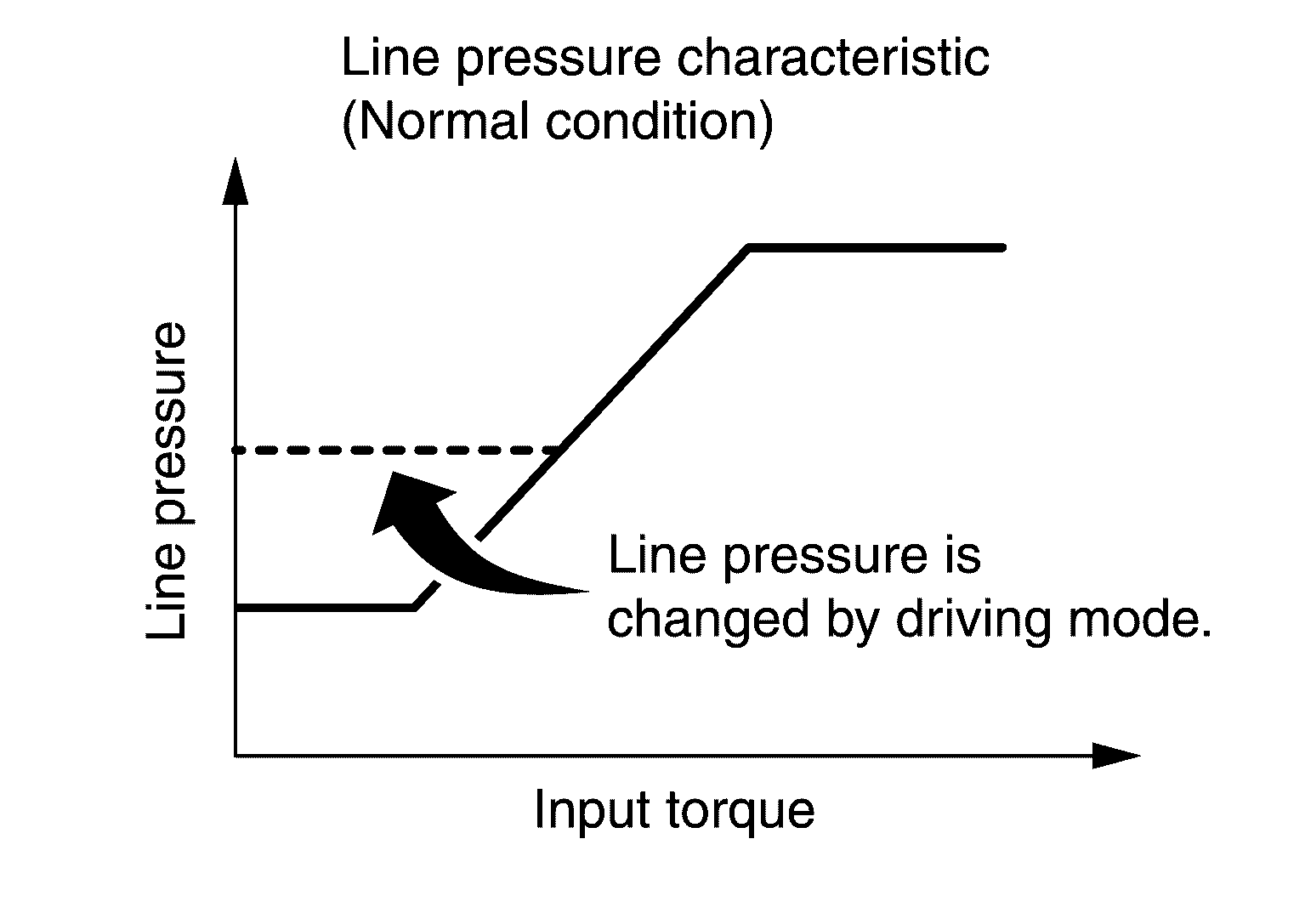

Fig 1: Line Pressure Characteristic Curve (Normal Condition)

Courtesy of NISSAN NORTH AMERICA, INC.
