COMBINATION SWITCH READING SYSTEM: System Diagram

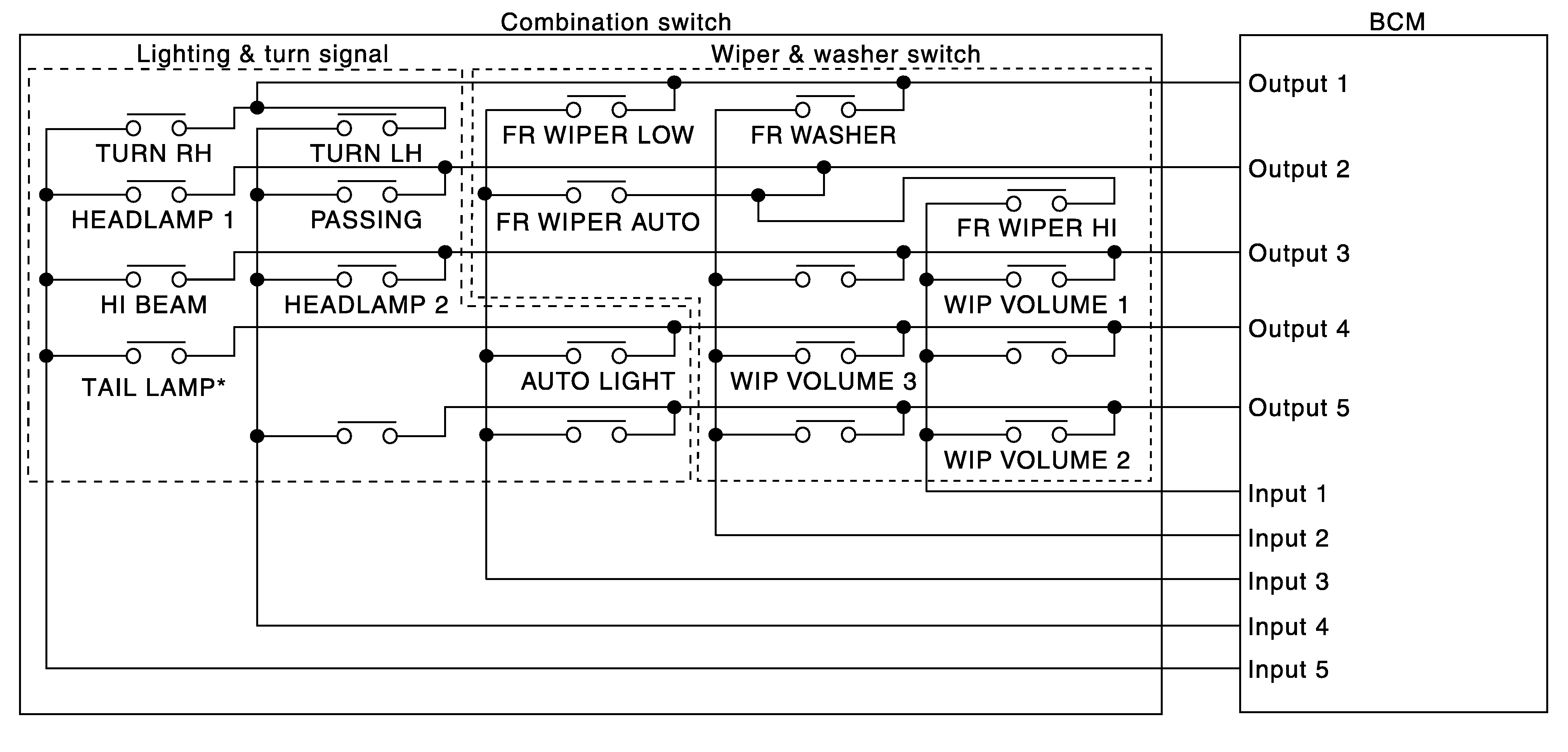

Fig 1: Combination Switch Reading System Diagram
G07018157Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: *: TAIL LAMP switch links lighting switch 1ST and 2ND positions.
