CAN COMMUNICATION SYSTEM: CAN Communication Signal Chart

Refer to "HOW TO USE CAN COMMUNICATION SIGNAL CHART " for how to use CAN communication signal chart.

NOTE: Refer to "ABBREVIATION LIST " for the abbreviations of the connecting units.

T: Transmit R: Receive

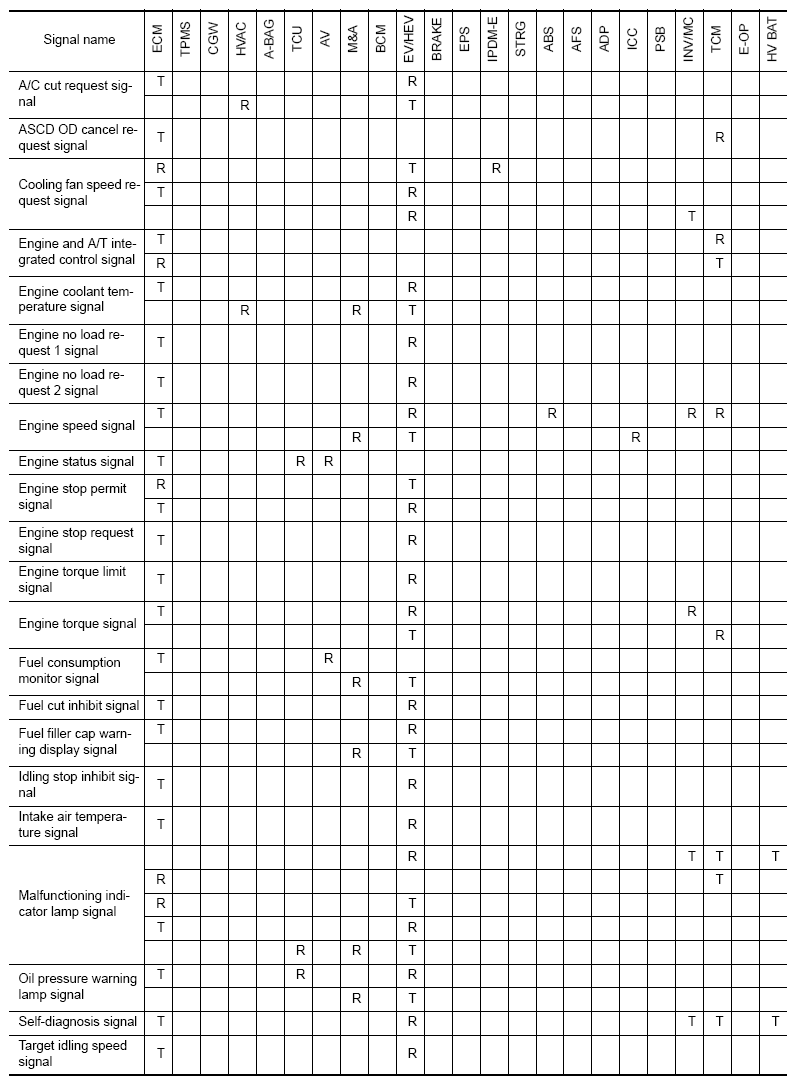

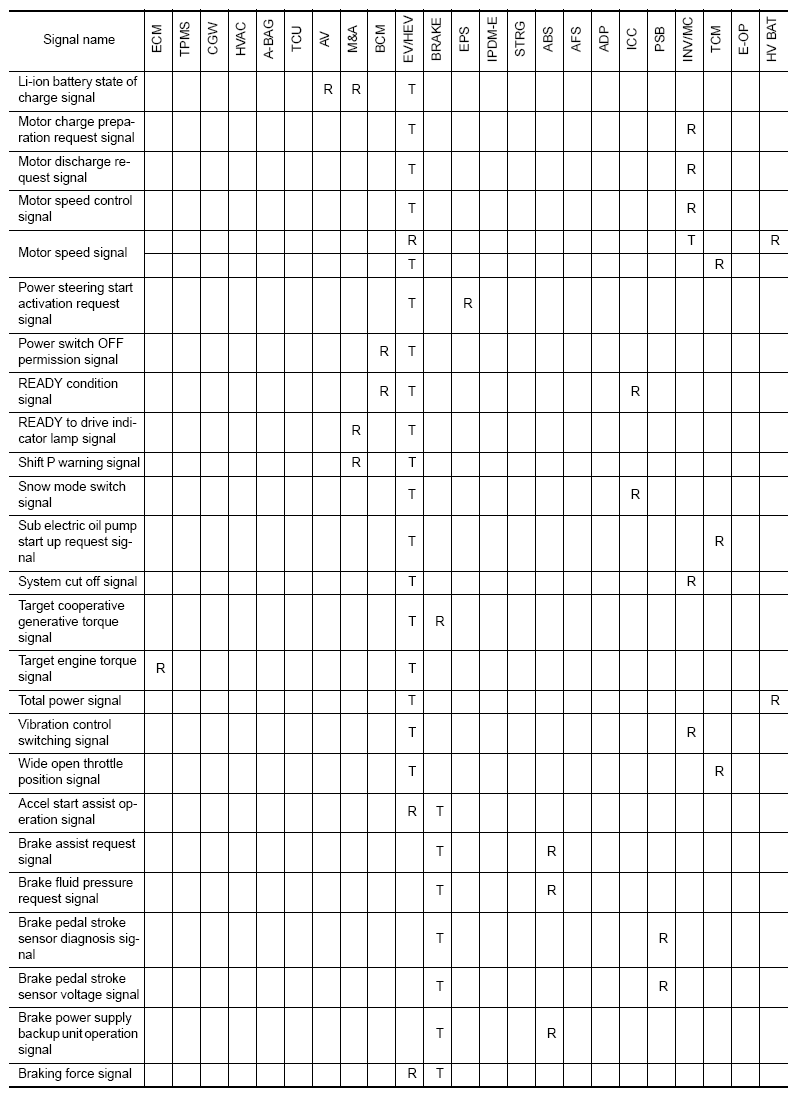

Fig 1: CAN Communication Signal Chart (1 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

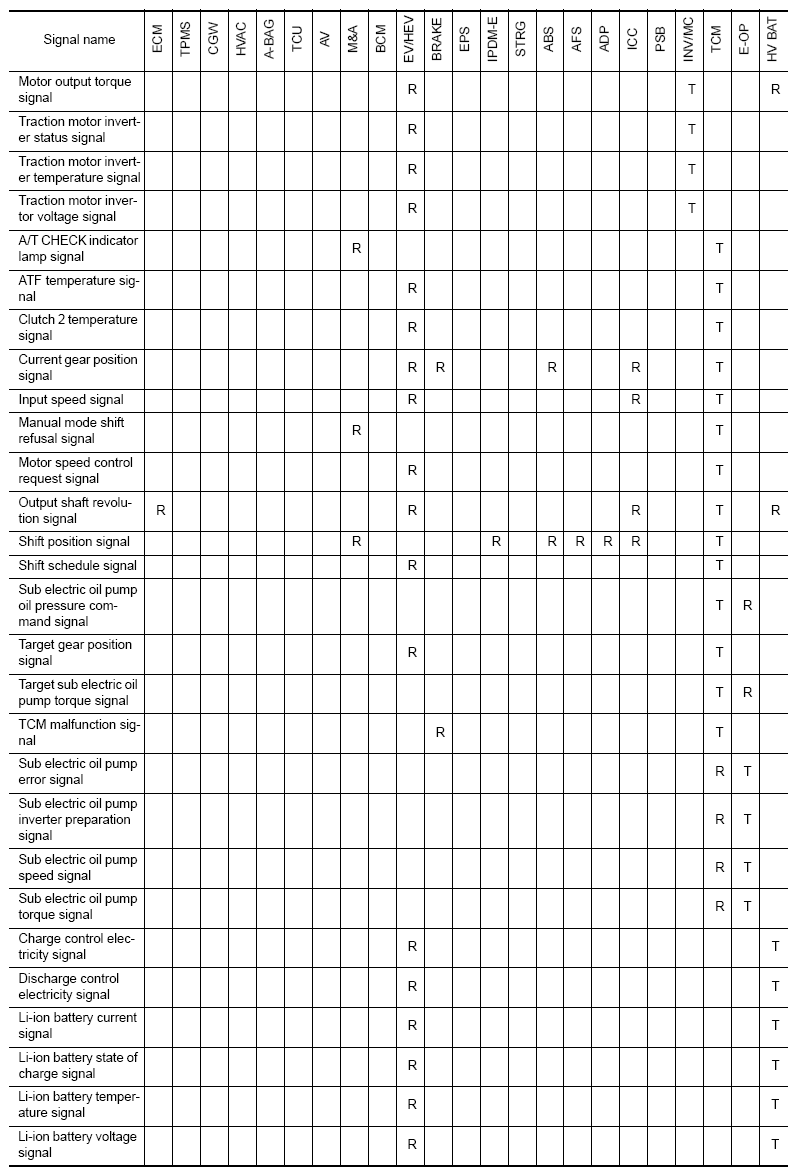

Fig 2: CAN Communication Signal Chart (2 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

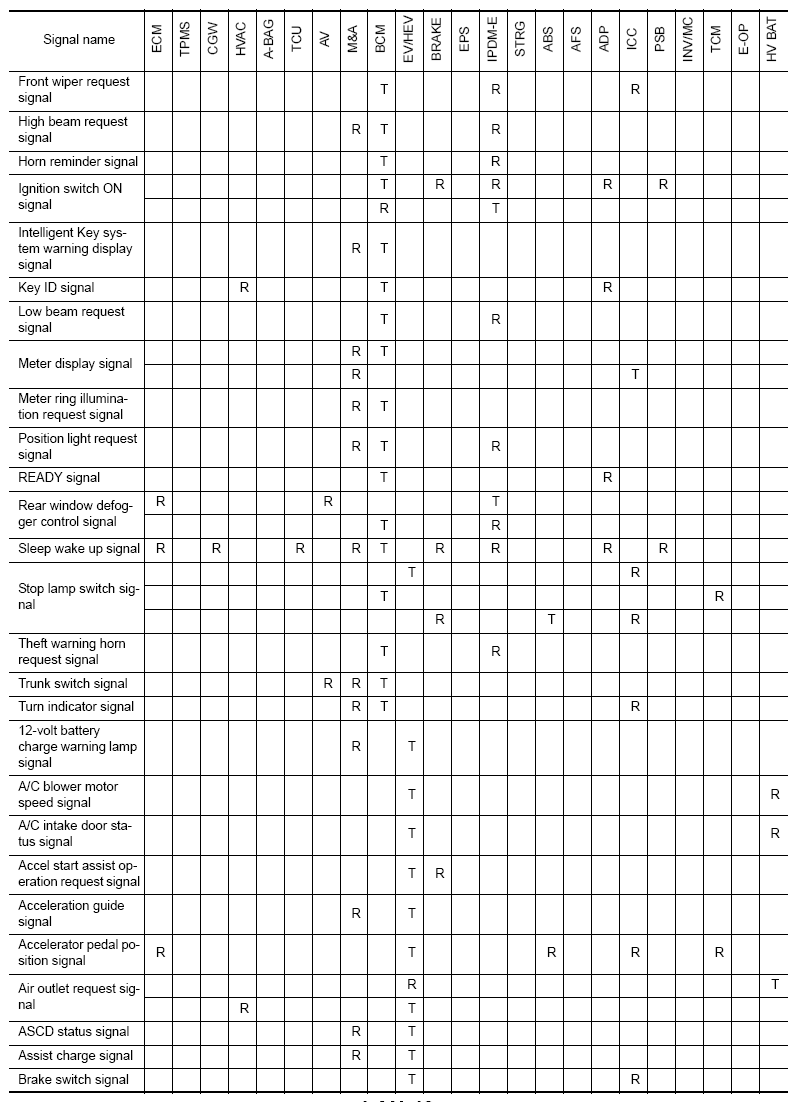

Fig 3: CAN Communication Signal Chart (3 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

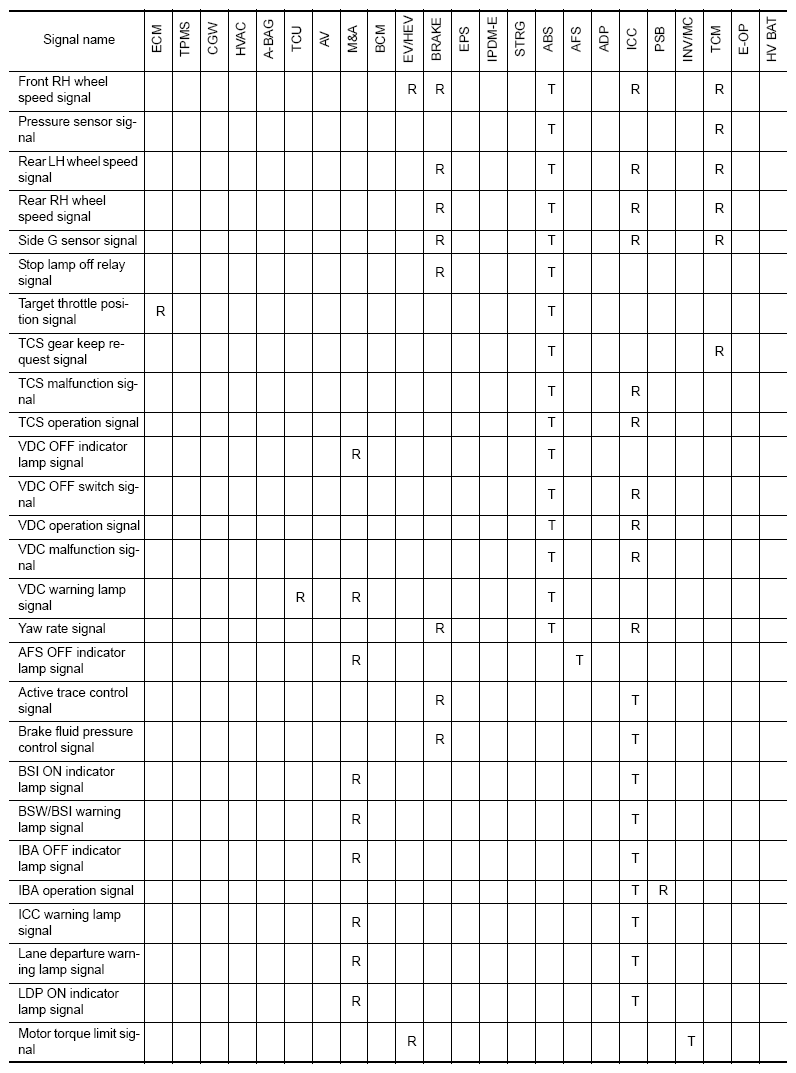

Fig 4: CAN Communication Signal Chart (4 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

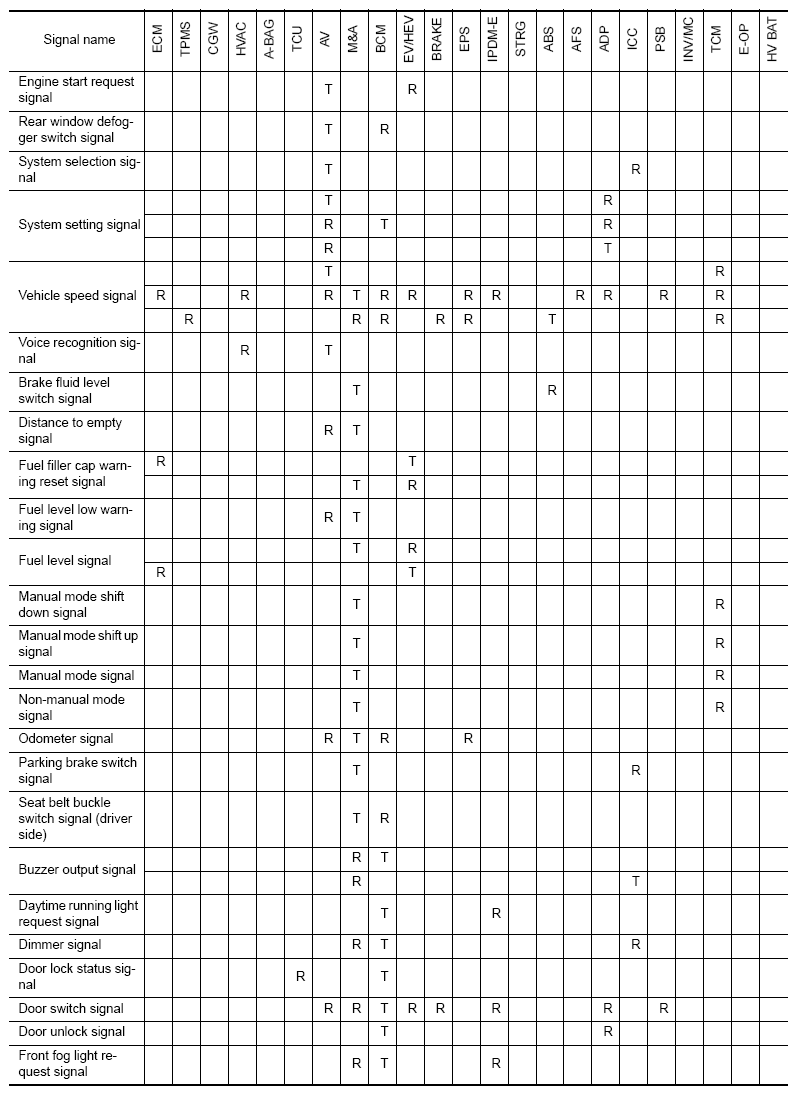

Fig 5: CAN Communication Signal Chart (5 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

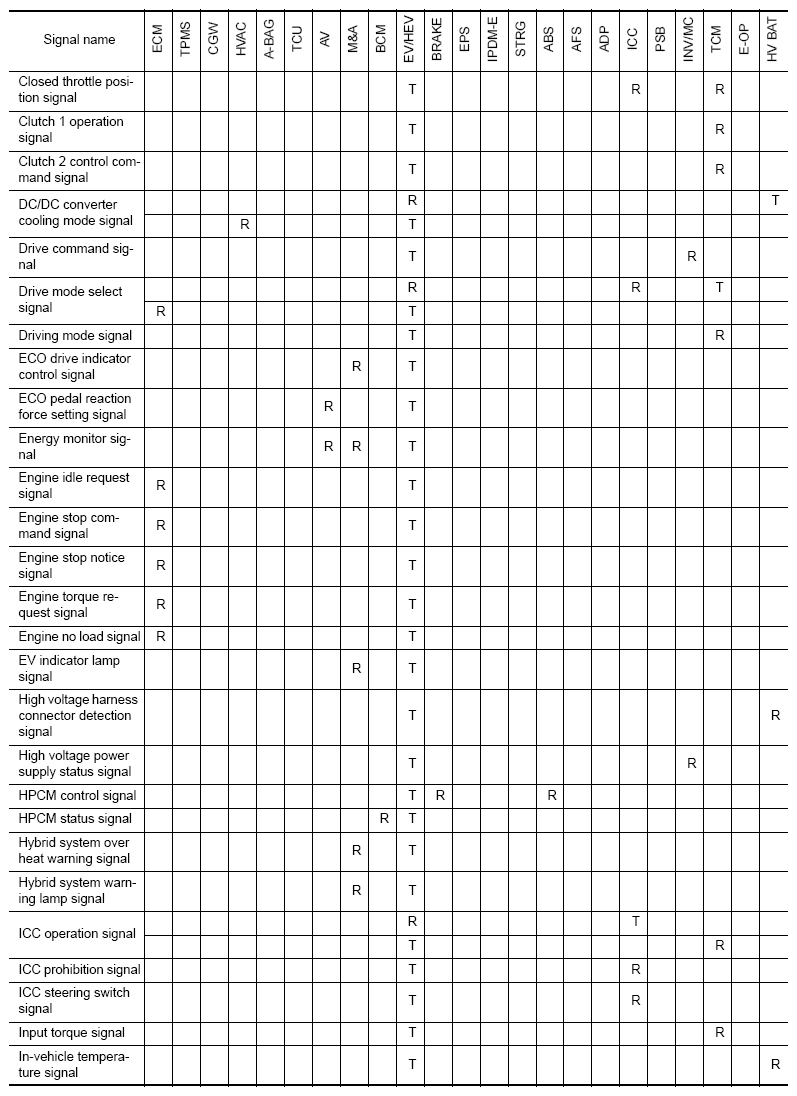

Fig 6: CAN Communication Signal Chart (6 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

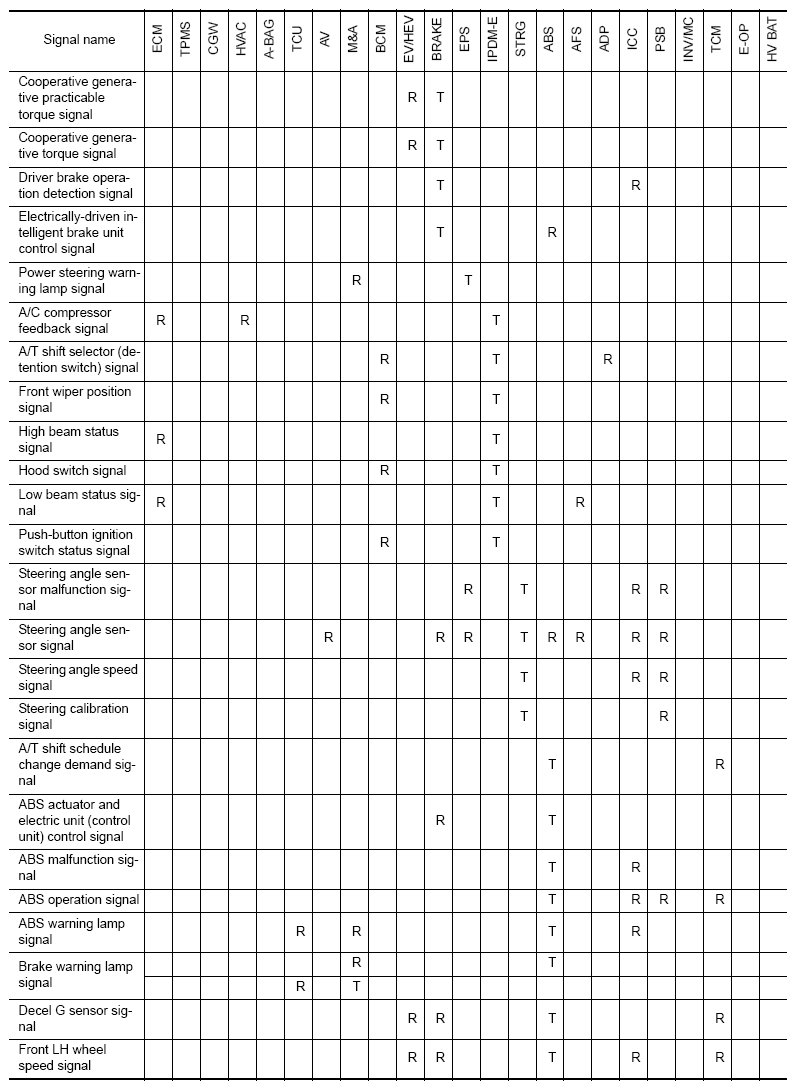

Fig 7: CAN Communication Signal Chart (7 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

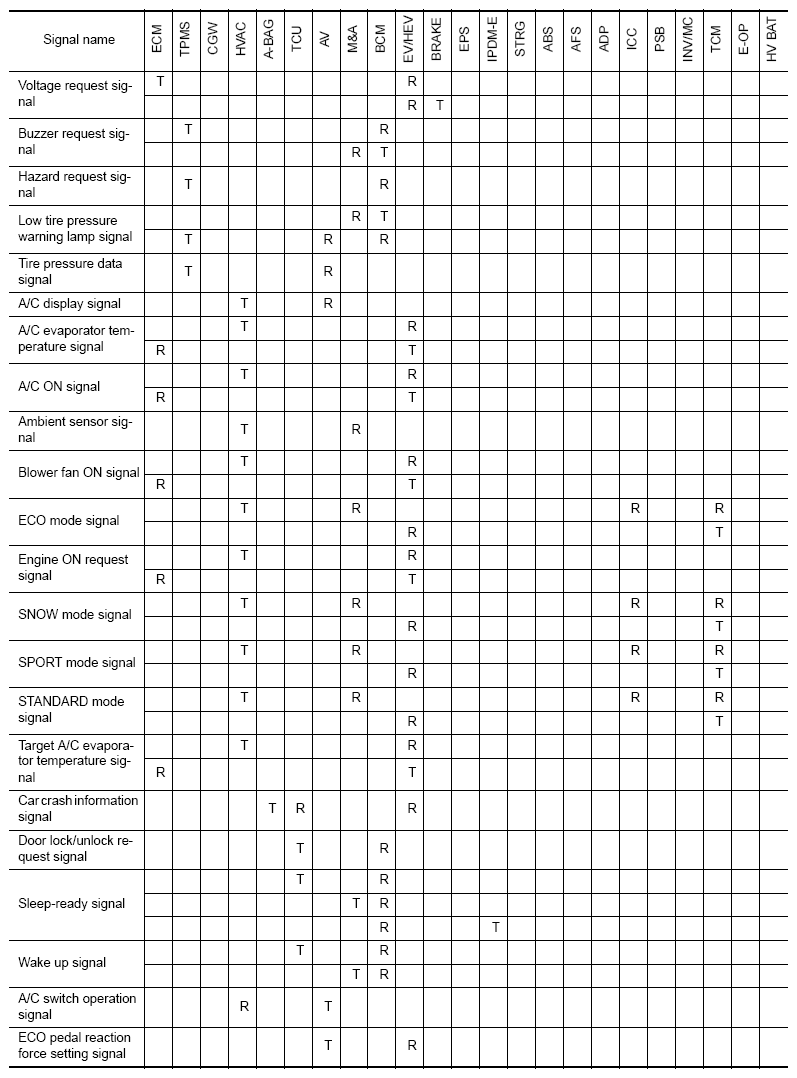

Fig 8: CAN Communication Signal Chart (8 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 9: CAN Communication Signal Chart (9 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.
