Component Description

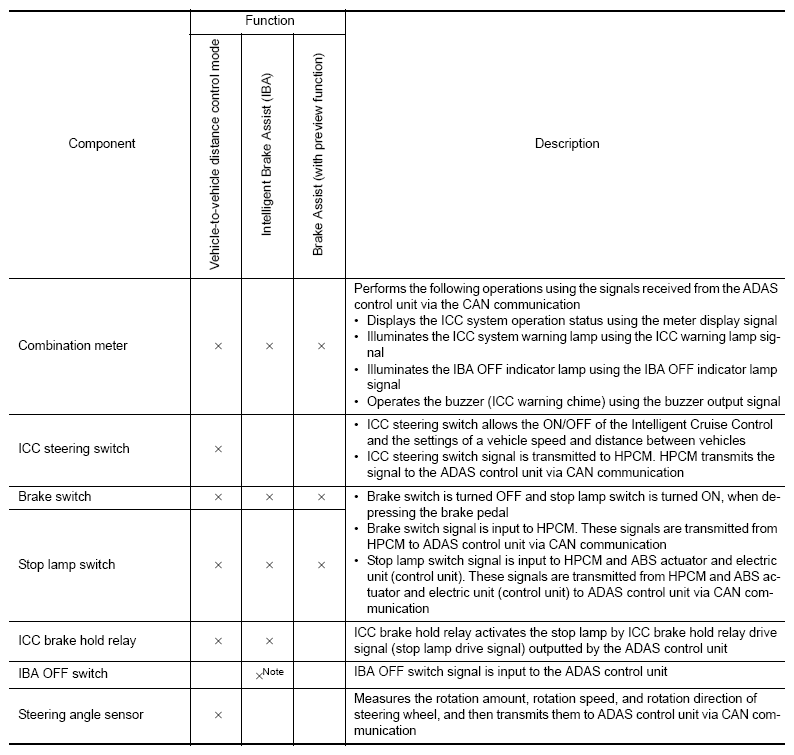

Fig 1: Intelligent Brake Assist System Components Function Chart (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Intelligent Brake Assist System Components Function Chart (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
Only IBA system uses
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
