Component Function Check

INSPECTION START
Turn ignition switch to START.

Are any cylinders ignited?

YES: GO TO 2.

NO: Go to "DIAGNOSIS PROCEDURE ".
CHECK FUEL INJECTOR FUNCTION
With CONSULT
1. Perform "INSPECTION MODE 5". Refer to "WORK PROCEDURE (INSPECTION MODE 5) ".
2. Start engine.
3. Perform "POWER BALANCE" in "ACTIVE TEST" mode of "ENGINE" with CONSULT.
4. Make sure that each circuit produces a momentary engine speed drop.
Without CONSULT
1. Perform "INSPECTION MODE 5". Refer to "WORK PROCEDURE (INSPECTION MODE 5) ".
2. Start engine.
3. Listen to each fuel injector operating sound.
  Clicking sound should be heard.

  Is the inspection result normal?

  YES: INSPECTION END

  NO: Go to "DIAGNOSIS PROCEDURE ".

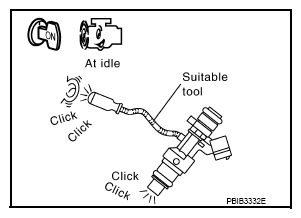

  Fig 1: Checking Fuel Injector Clicking Sound
  Courtesy of NISSAN NORTH AMERICA, INC.
