Check Ignition Timing

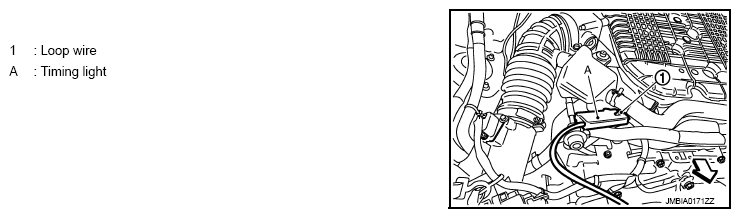

Attach timing light to loop wire as shown below.

Fig 1: Locating Loop Wire And Timing Light Connector
Courtesy of NISSAN NORTH AMERICA, INC.
Check ignition timing.

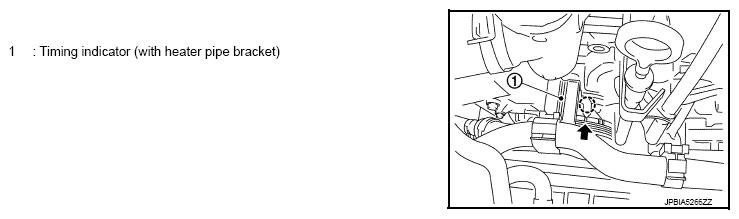

Fig 2: Locating Timing Indicator

Courtesy of NISSAN NORTH AMERICA, INC.
