Exploded View: Disassembly

WARNING: This page is about a different car, the 2012 Infiniti M35h. However, it is still accessible from the selected car via links, so may be relevant.

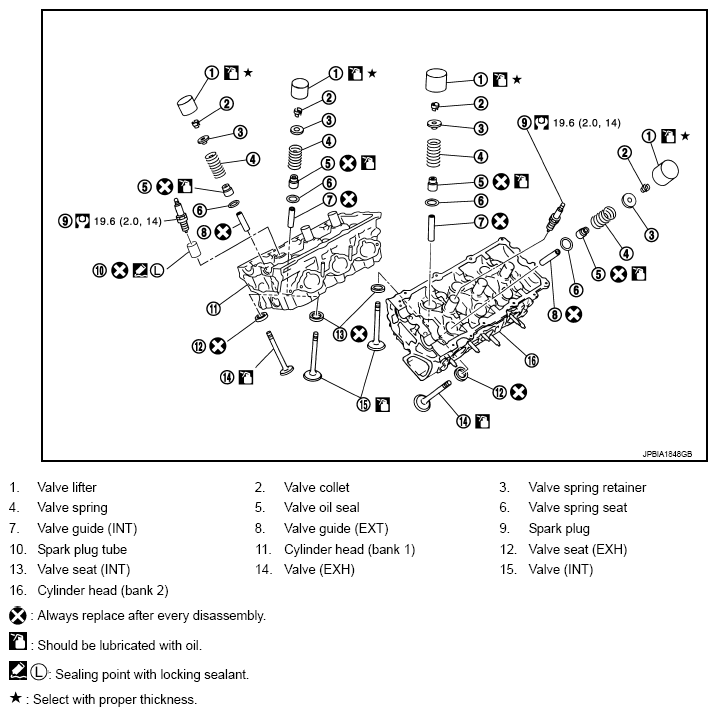

Fig 1: Disassembled View Of Cylinder Head With Torque Specifications
G08248415Courtesy of NISSAN NORTH AMERICA, INC.
