INTELLIGENT KEY SYSTEM/READY SET FUNCTION: System Diagram

WARNING: This page is about a different car, the 2012 Infiniti M35h. However, it is still accessible from the selected car via links, so may be relevant.

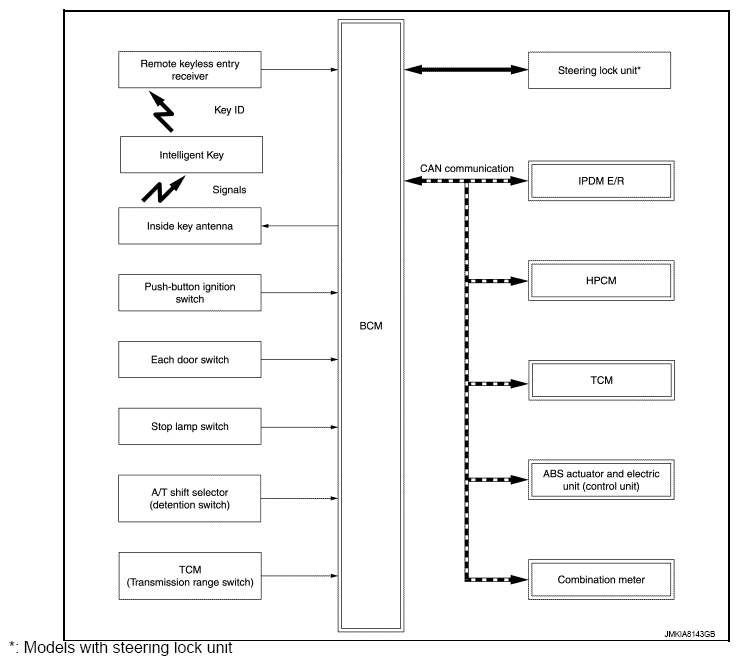

Fig 1: Intelligent Key System/Ready Set Function - System Diagram
G08249611Courtesy of NISSAN NORTH AMERICA, INC.
