Removal and Installation: Removal

  1. Remove the rear door finisher.

    Refer to "REAR DOOR FINISHER: REMOVAL AND INSTALLATION ".

  2. Remove the armrest mounting screws (A), and then remove the armrest from the rear door finisher.
  3. Remove grip finisher (2) from the armrest.
  4. Remove mounting screws (B) of power window switch finisher (1) from the armrest. Remove power window switch finisher (1) from the armrest.
  5. Disengage pawls of power window switch finisher (1) from rear power window switch (3), using remover tool. Remove rear power window switch (3).

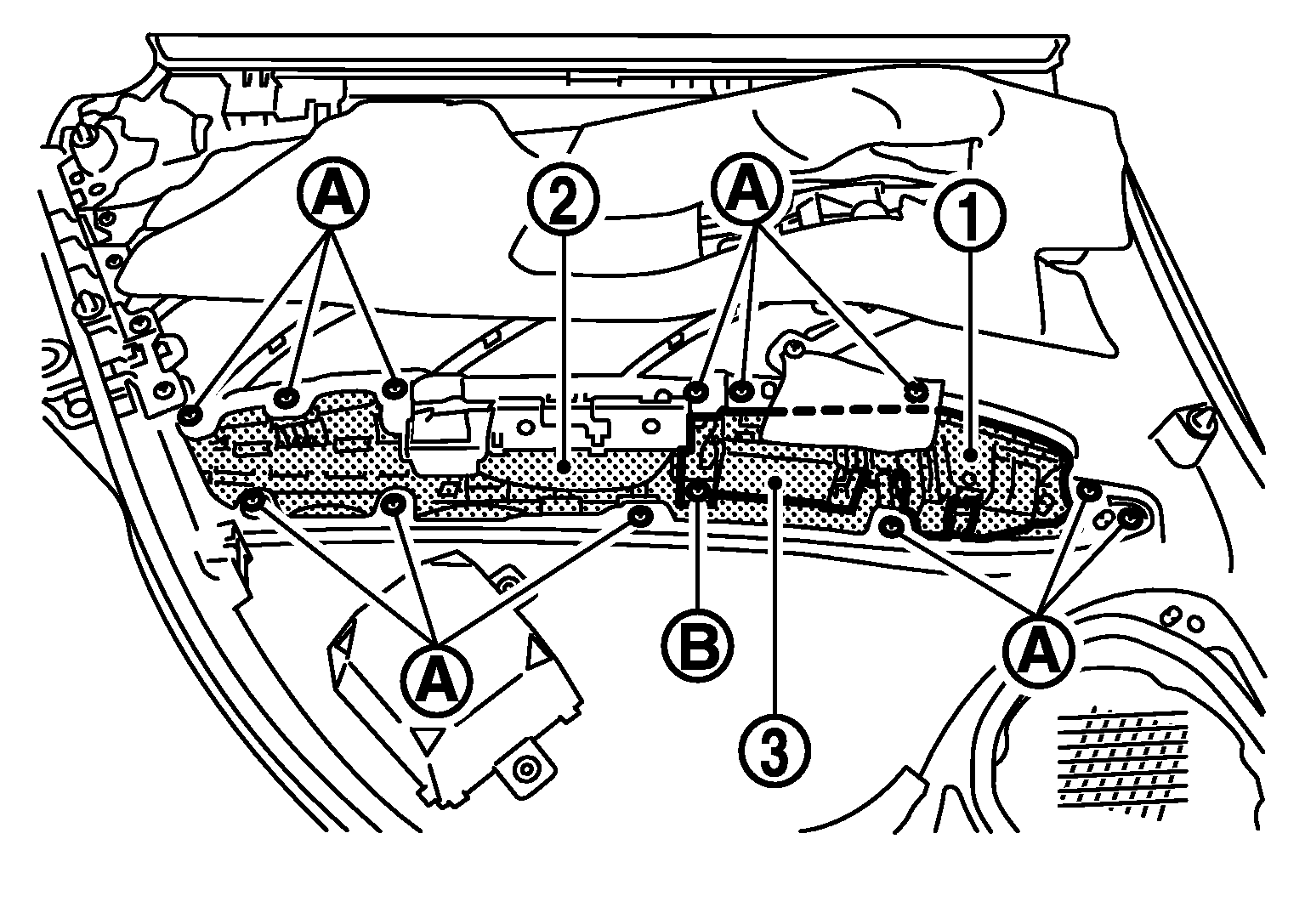

    Fig 1: Identifying Power Window Switch Finisher, Window Switch And Mounting Screws
    G07021092Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION: Never bend finisher pawls when removing switch.
