Exploded View

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

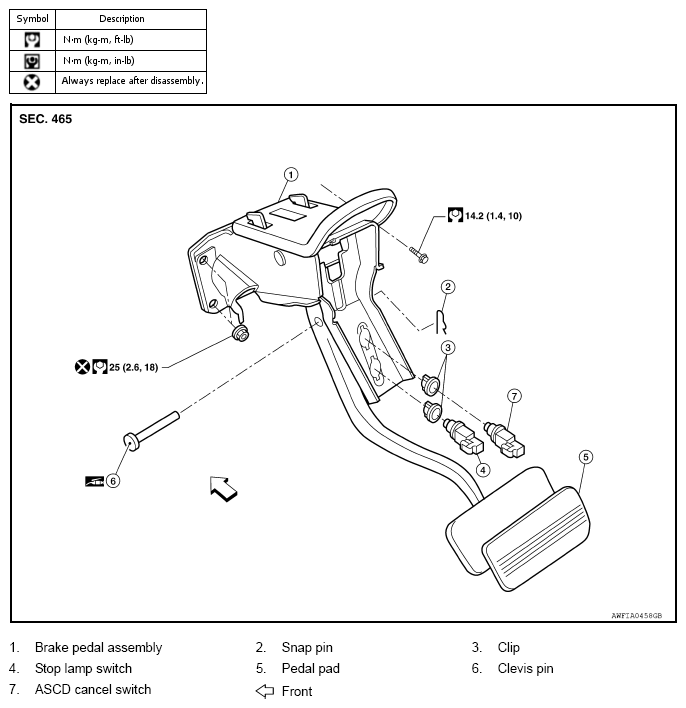

Fig 1: Exploded View Of Brake Pedal With Torque Specifications
G08711465Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: The clevis pin may be installed from either direction.
