Connector Terminal Identification

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

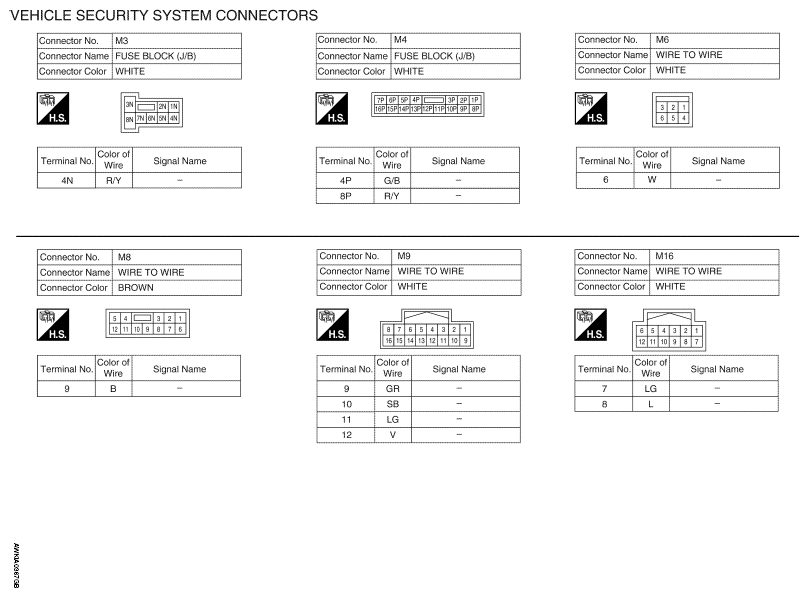

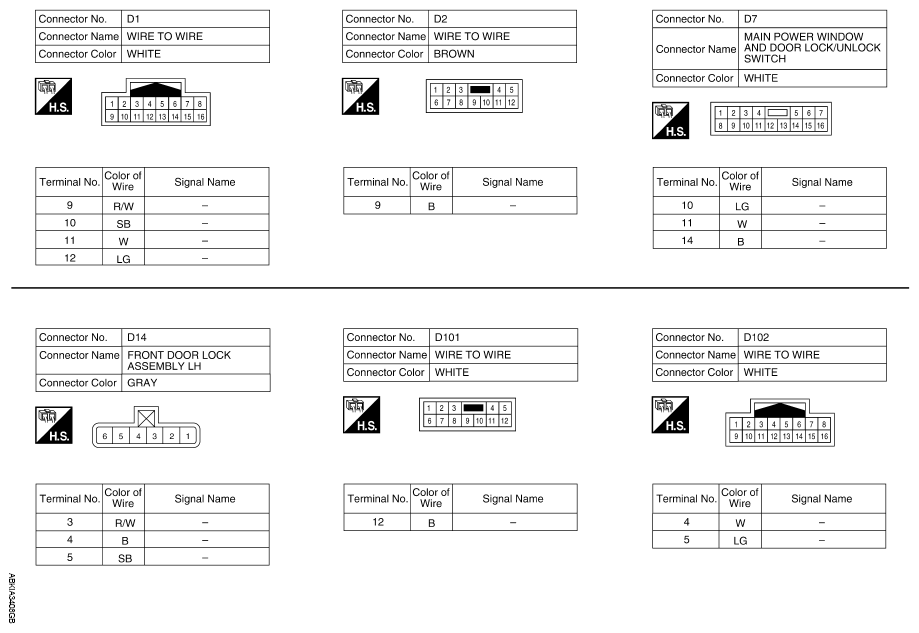

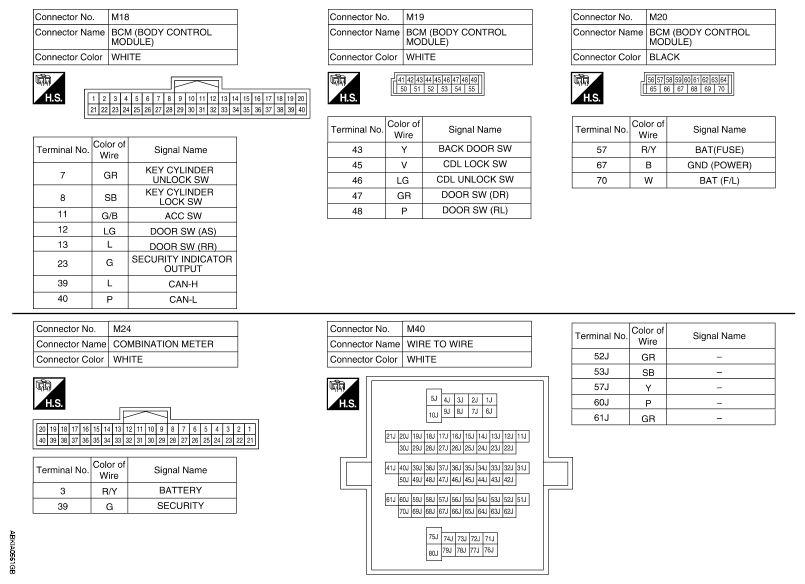

Fig 1: Vehicle Security System Connector End View (1 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

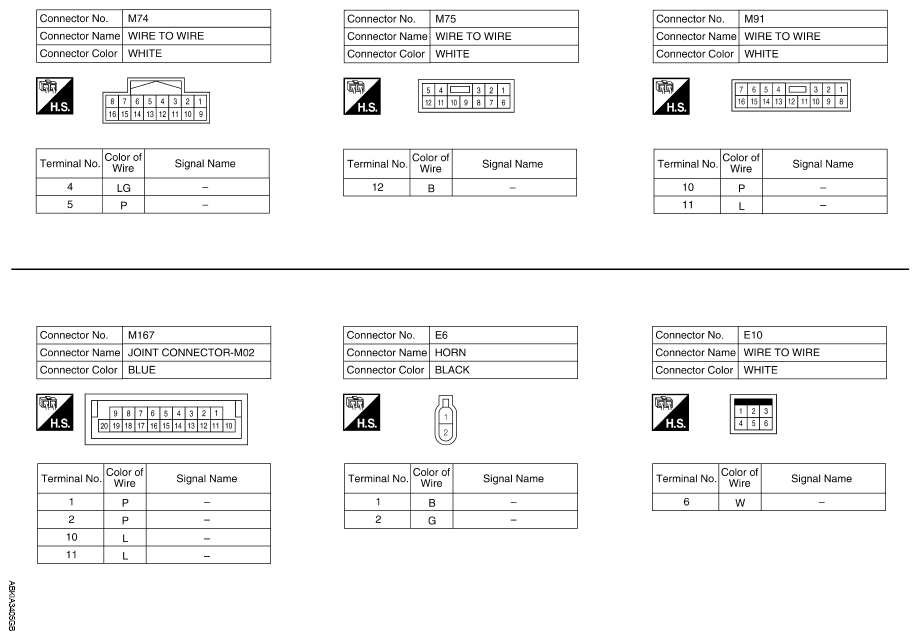

Fig 2: Vehicle Security System Connector End View (2 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

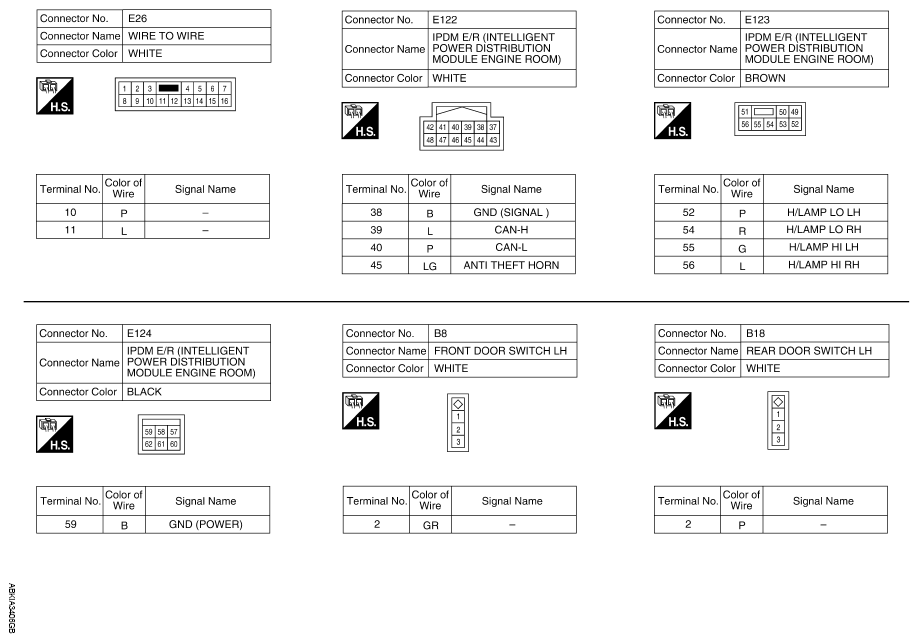

Fig 3: Vehicle Security System Connector End View (3 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

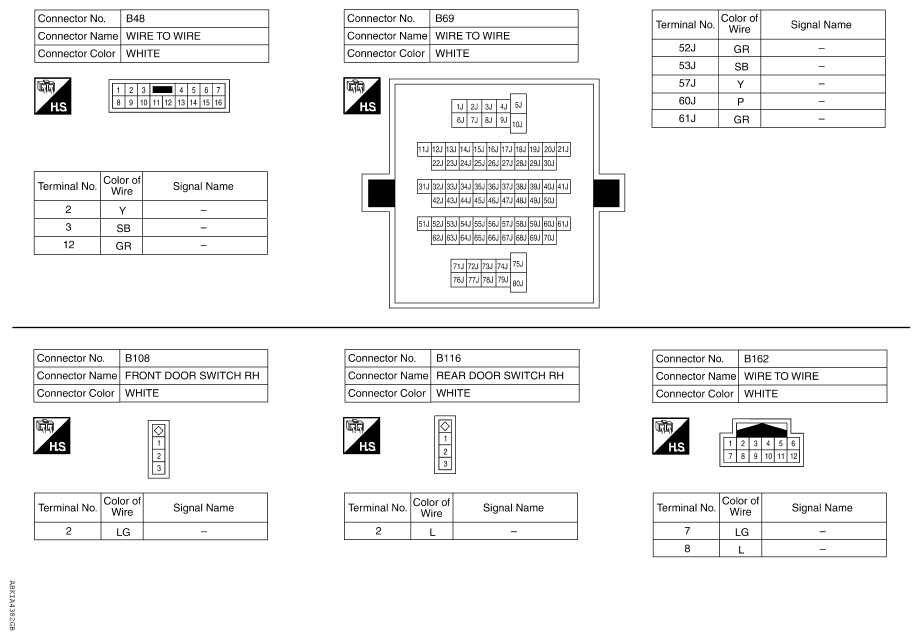

Fig 4: Vehicle Security System Connector End View (4 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Vehicle Security System Connector End View (5 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

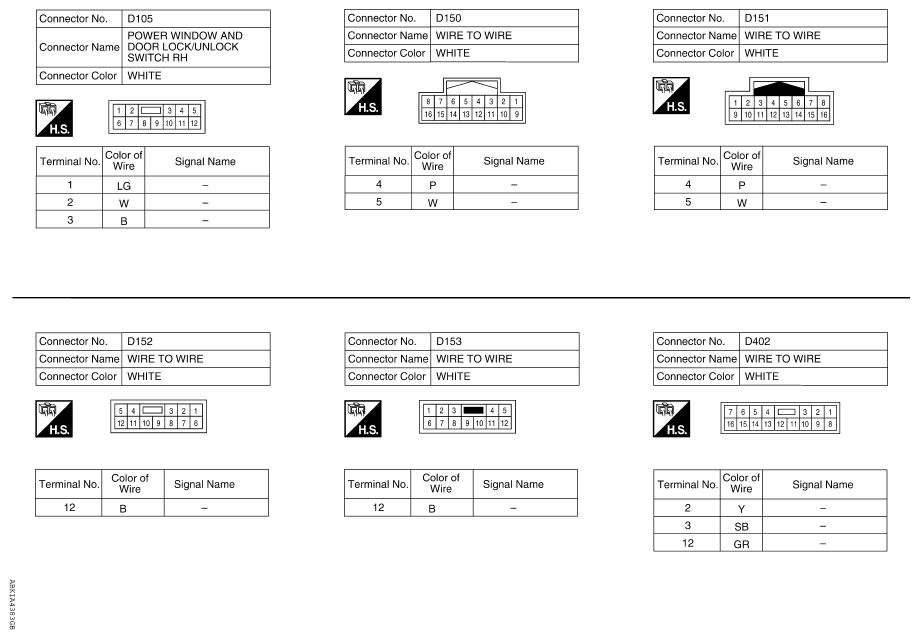

Fig 6: Vehicle Security System Connector End View (6 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

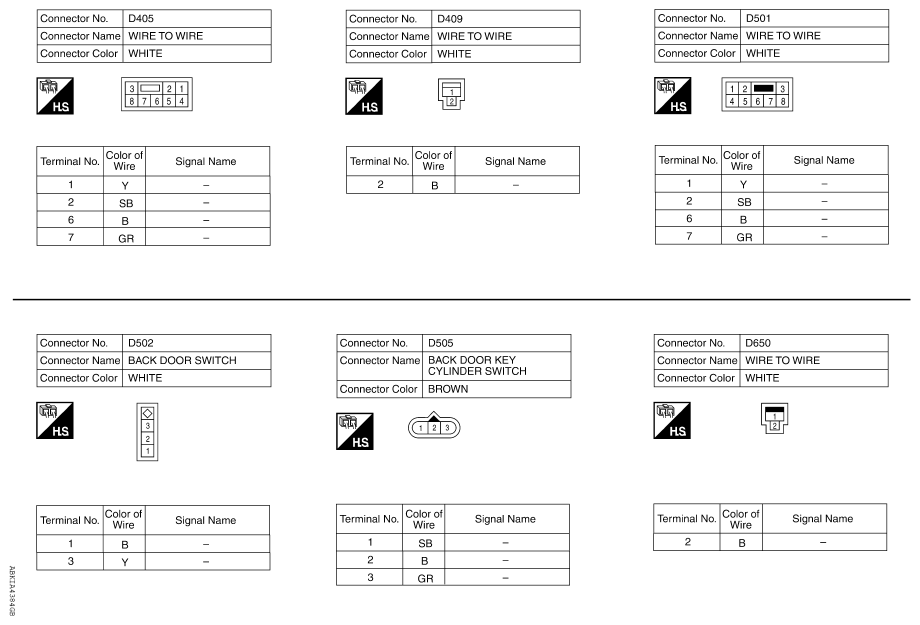

Fig 7: Vehicle Security System Connector End View (7 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: Vehicle Security System Connector End View (8 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

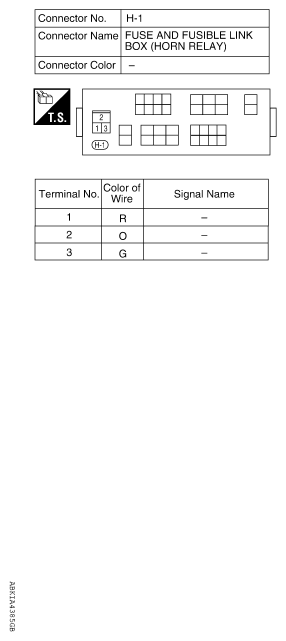

Fig 9: Vehicle Security System Connector End View (9 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.
