Removal and Installation: Removal

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Remove cluster lid C. Refer to "REMOVAL AND INSTALLATION ".
Remove the ventilator grilles (LH/RH). Refer to "REMOVAL AND INSTALLATION ".
Remove the audio unit assembly screws (A).

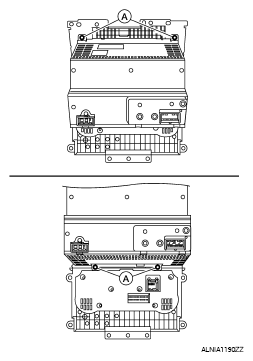

Fig 1: Identifying Audio Unit Assembly Screws
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the audio unit bracket screws (A).

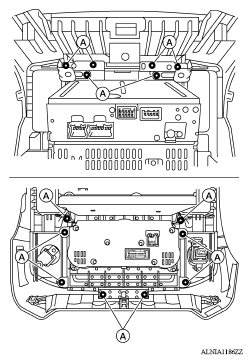

Fig 2: Identifying Audio Unit Bracket Screws
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the audio unit bracket screws (A) using power tool and the audio unit brackets (LH/RH).

Fig 3: Identifying Audio Unit Bracket Screws
Courtesy of NISSAN NORTH AMERICA, INC.
Remove the audio unit screws (A) using power tool.

Fig 4: Identifying Audio Unit Screws
Courtesy of NISSAN NORTH AMERICA, INC.
Release the audio unit tab (A) and remove the audio unit (1).

Fig 5: Identifying Audio Unit And Tab
Courtesy of NISSAN NORTH AMERICA, INC.
