ECM Terminal and Reference Value: Preparation

WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

ECM located in the engine room passenger side behind reservoir tank.

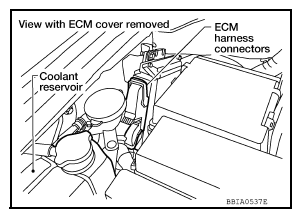

Fig 1: Identifying ECM Harness Connector And Coolant Reservoir
G08710476Courtesy of NISSAN NORTH AMERICA, INC.
