Left Side

WARNING: This page is about a different variant/trim than selected.

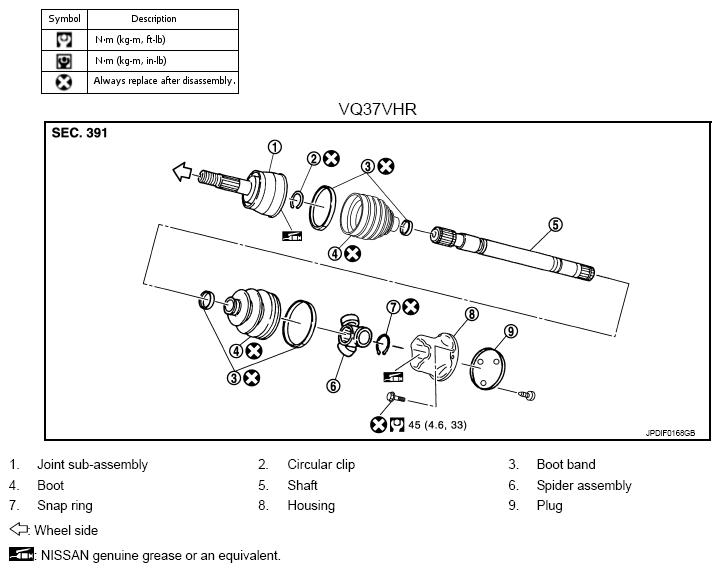

Fig 1: Exploded View Of Front LH Drive Shaft Boot With Torque Specification (VQ37VHR)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.

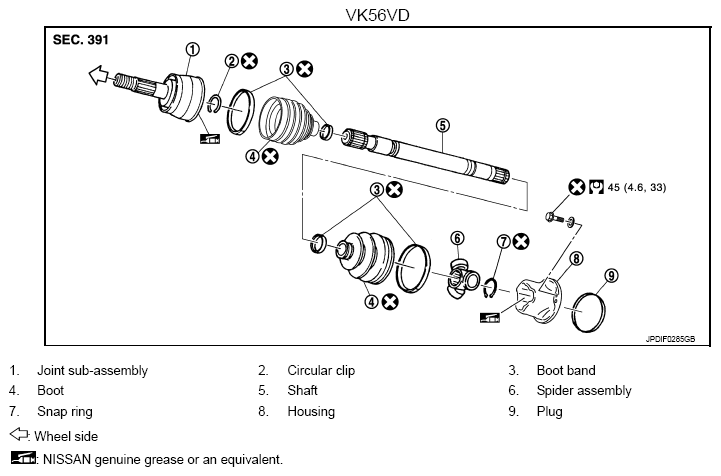

Fig 2: Exploded View Of Front LH Drive Shaft Boot With Torque Specification (VK56VD)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
