Symptom Table 1

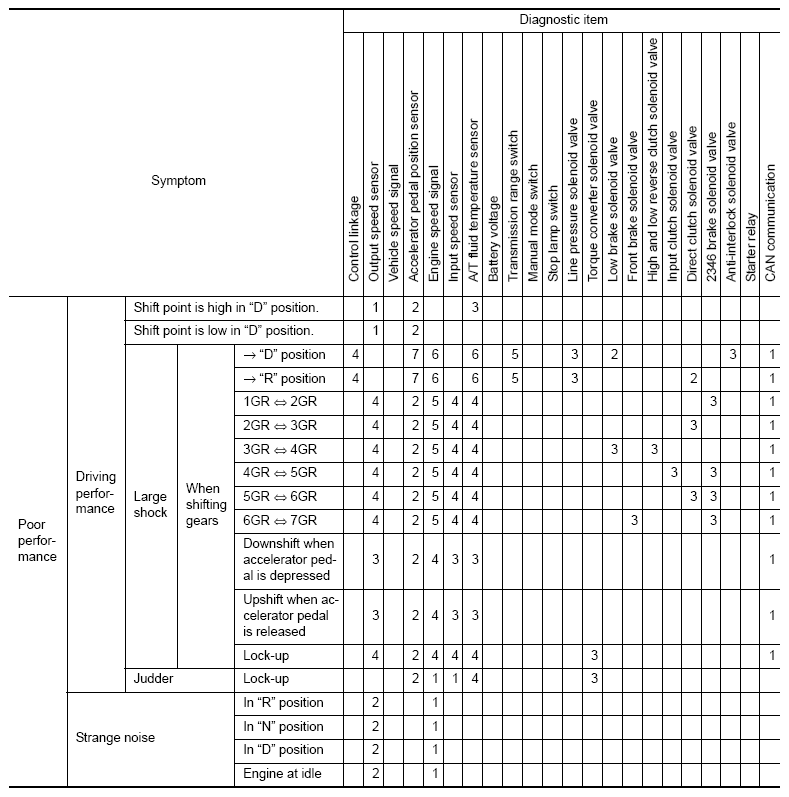

Fig 1: Diagnostic Item Symptom Chart 1 (1 Of 5)

G08890785

Courtesy of NISSAN NORTH AMERICA, INC.

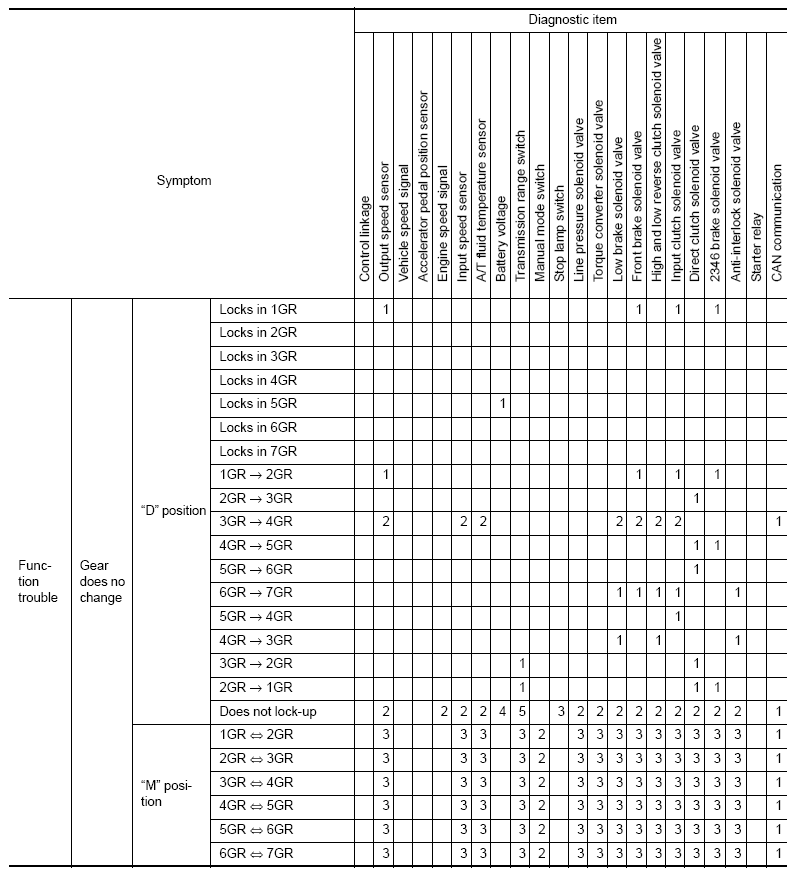

Fig 2: Diagnostic Item Symptom Chart 1 (2 Of 5)

G08890786

Courtesy of NISSAN NORTH AMERICA, INC.

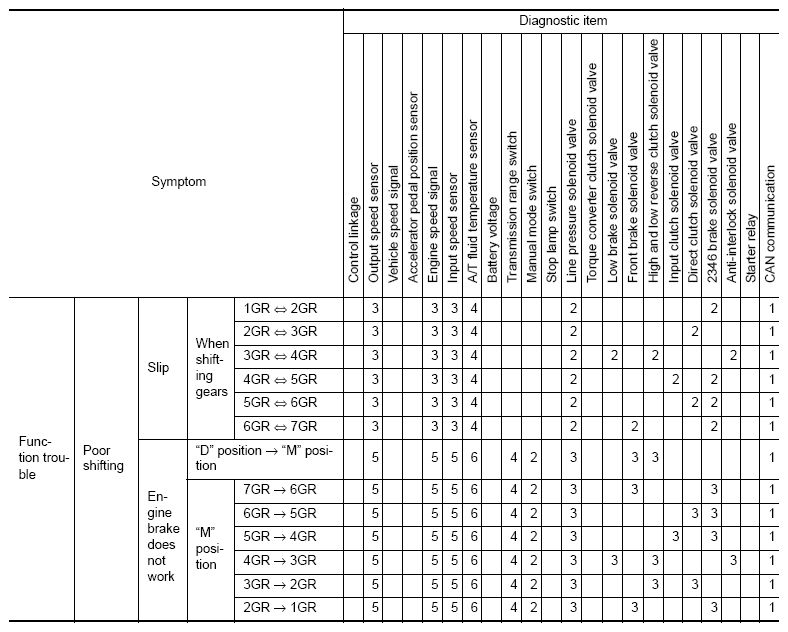

Fig 3: Diagnostic Item Symptom Chart 1 (3 Of 5)

G08890787

Courtesy of NISSAN NORTH AMERICA, INC.

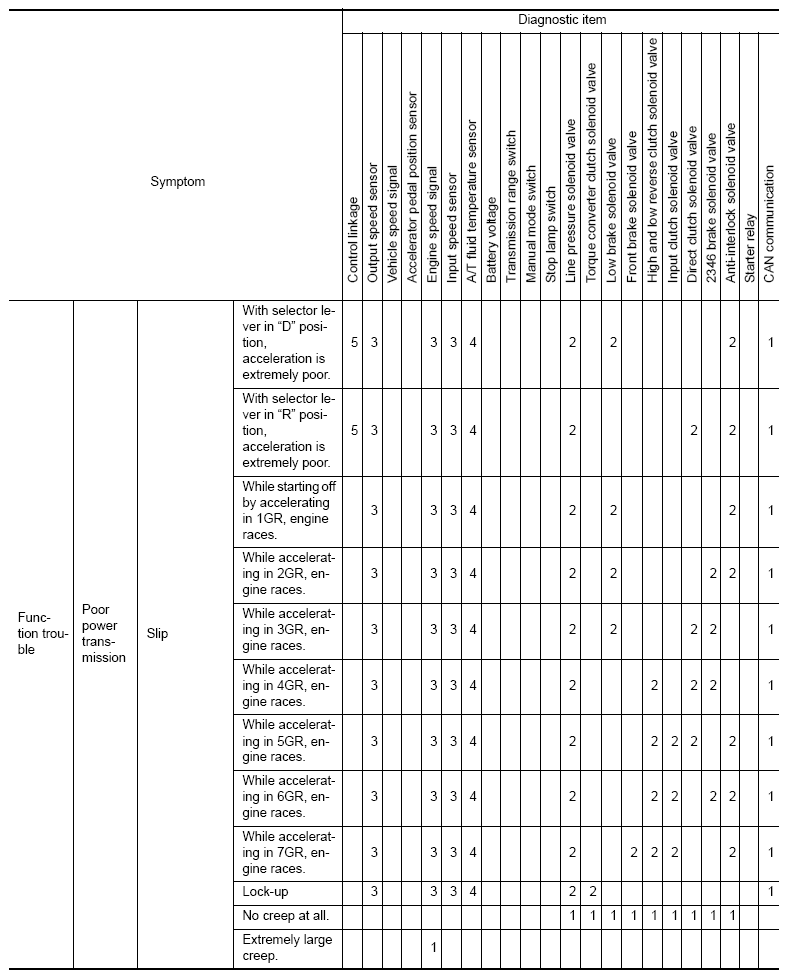

Fig 4: Diagnostic Item Symptom Chart 1 (4 Of 5)

G08890788

Courtesy of NISSAN NORTH AMERICA, INC.

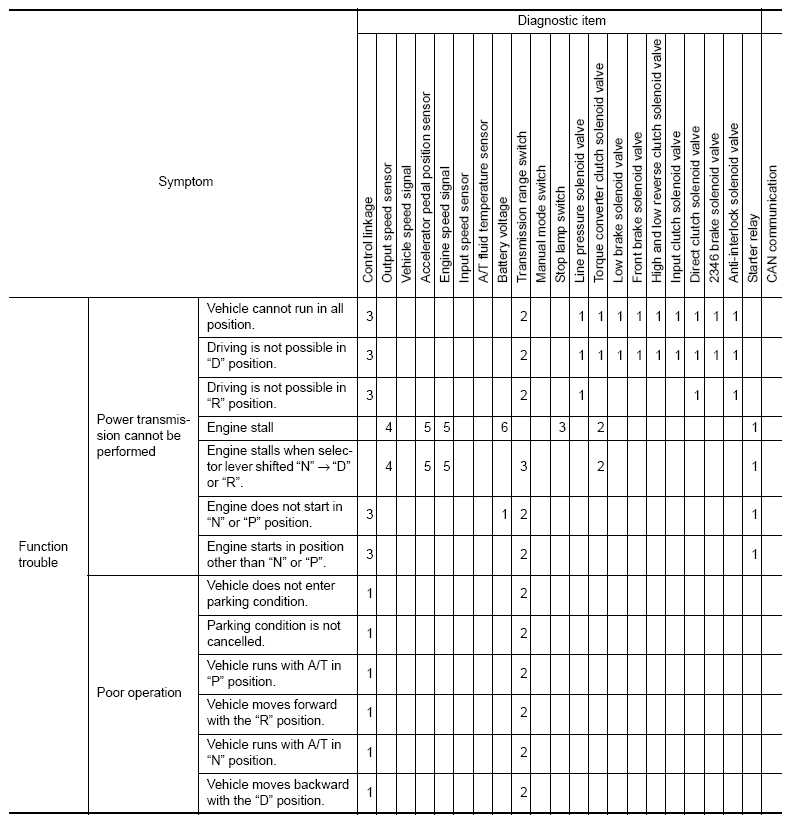

Fig 5: Diagnostic Item Symptom Chart 1 (5 Of 5)

G08890789

Courtesy of NISSAN NORTH AMERICA, INC.
