During Shift Change

The necessary and adequate line pressure for shift change is set. For this reason, line pressure pattern setting corresponds to engine torque and gearshift selection. Also, line pressure characteristic corresponds to engine speed, during engine brake operation.

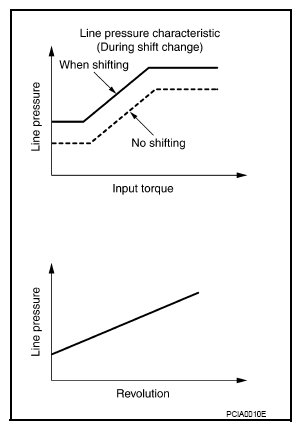

Fig 1: Line Pressure Characteristic Graph (During Shift Change)
G08890746Courtesy of NISSAN NORTH AMERICA, INC.
