Exploded View

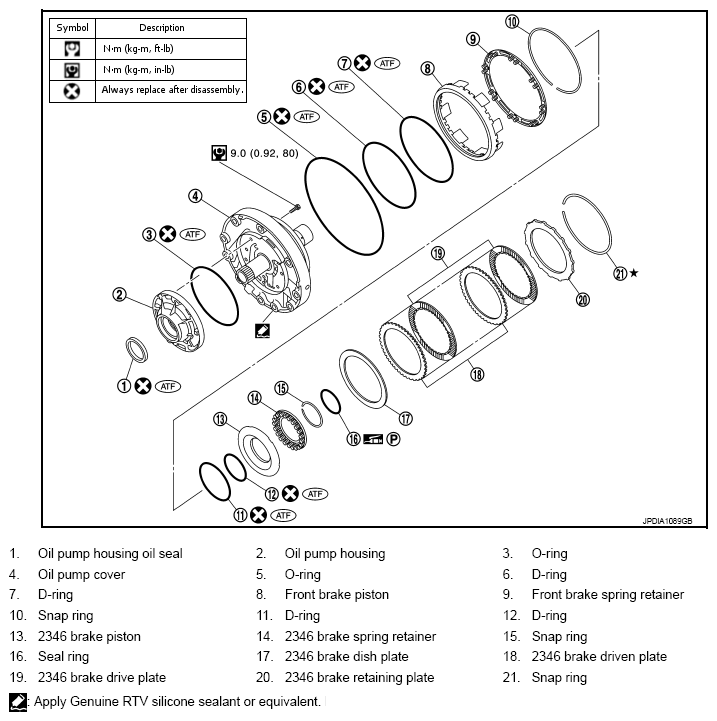

Fig 1: Exploded View Of Oil Pump, Brake, Front Brake Piston
G08891096Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
