Torque Converter

Check torque converter one-way clutch using a check tool as shown in figure below.

1. Insert a check tool into the groove of bearing support built into one-way clutch outer race.
2. When fixing bearing support with a check tool, rotate one-way clutch spline using a screwdriver.
3. Make sure that inner race rotates clockwise only. If not, replace torque converter assembly.

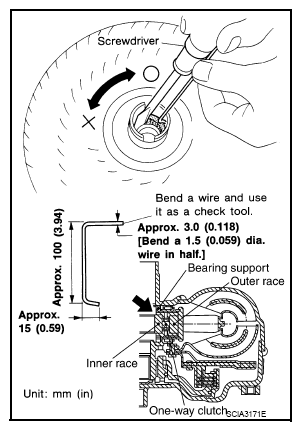

Fig 1: Checking Torque Converter One-Way Clutch Using Check Tool

Courtesy of NISSAN NORTH AMERICA, INC.
