System - Basic Engine Control System

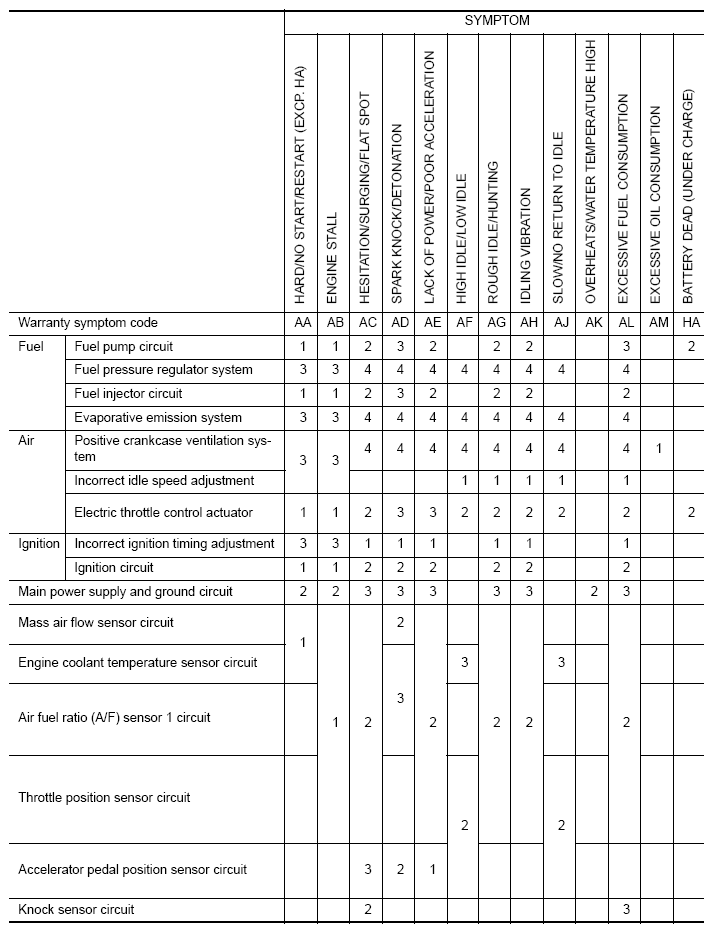

Fig 1: Engine Control System Symptoms Chart (Basic; 1 Of 2)
G08896927Courtesy of NISSAN NORTH AMERICA, INC.

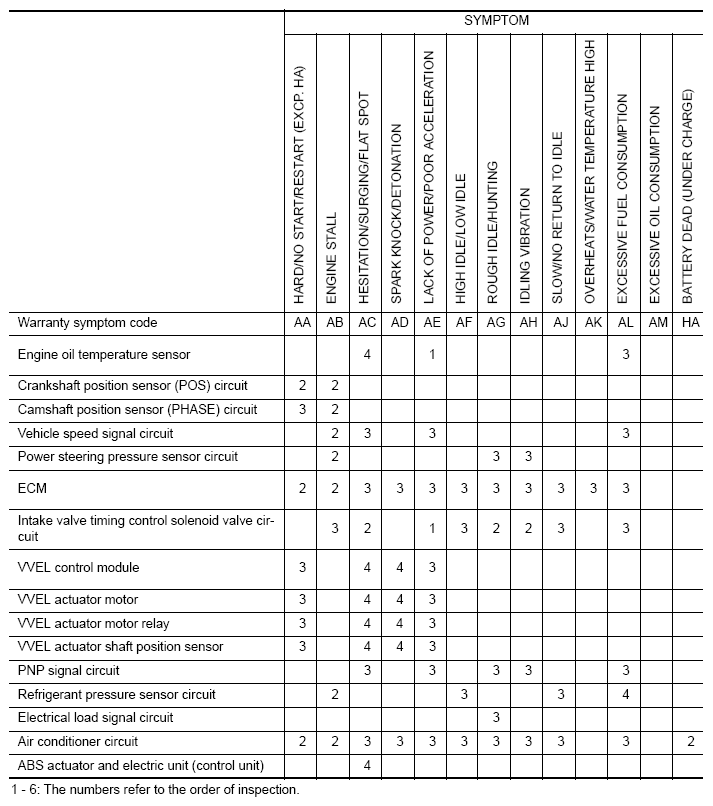

Fig 2: Engine Control System Symptoms Chart (Basic; 2 Of 2)
G08896928Courtesy of NISSAN NORTH AMERICA, INC.
