SRT STATUS Mode
- For items whose SRT codes are set, "CMPLT" is displayed on the CONSULT screen; for items whose SRT codes are not set, "INCMP" is displayed.
- "SRT STATUS" provides the presence or absence of permanent DTCs stored in ECM memory.
PERMANENT DTC STATUS Mode
How to display permanent DTC status
- Turn ignition switch OFF and wait at least 10 seconds.
- Turn ignition switch ON.
- Turn ignition switch OFF and wait at least 10 seconds.
- Turn ignition switch ON.

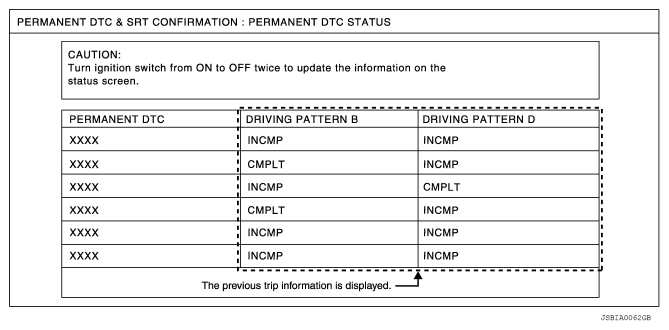

- Select "PERMANENT DTC STATUS" in "DTC & SRT CONFIRMATION" mode with CONSULT.NOTE: Permanent DTCs stored in ECM memory are displayed on the CONSULT screen to show if a driving pattern required for erasing permanent DTCs is complete (CMPLT) or incomplete (INCMP).CAUTION: Since the "PERMANENT DTC STATUS" screen displays the previous trip information, repeat the following twice to update the information: "Ignition switch OFF", "Wait for more than 10 seconds" and "Ignition switch ON".
NOTE:
This mode is not used in regions that permanent DTCs are not regulated by law.
SRT WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.
PERMANENT DTC WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to complete the driving pattern that is required for erasing permanent DTC.
NOTE:
This mode is not used in regions that permanent DTCs are not regulated by law.
DTC WORK SUPPORT MODE
| Test mode | Test item | Corresponding DTC No. | ||
|---|---|---|---|---|
| EVAPORATIVE SYSTEM | EVP V/S LEAK P0456/P1456(1) | P0442 | ||
| P0455 | ||||
| P0456 | ||||
| PURG VOL CN/V P1444 | P0443 | |||
| PURG FLOW P0441 | P0441 | |||
| A/F SEN1 | A/F SEN1(B1) P1278/P1279 | P0133 | ||
| A/F SEN1(B1) P1276 | P0130 | |||
| A/F SEN1(B2) P1288/P1289 | P0153 | |||
| A/F SEN1(B2) P1286 | P0150 | |||
| HO2S2 | HO2S2(B1) P1146 | P0138 | ||
| HO2S2(B1) P1147 | P0137 | |||
| HO2S2(B1) P0139 | P0139 | |||
| HO2S2(B2) P1166 | P0158 | |||
| HO2S2(B2) P1167 | P0157 | |||
| HO2S2(B2) P0159 | P0159 | |||
|
||||
