Exploded View

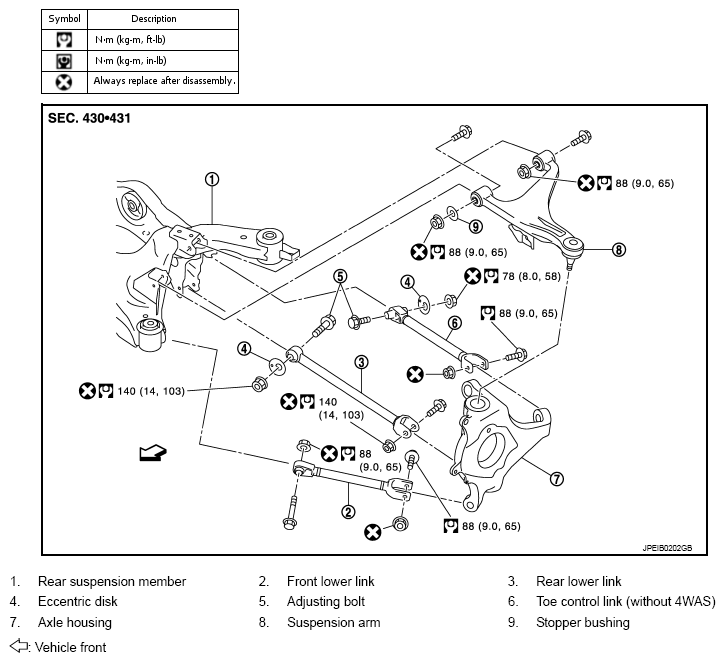

Fig 1: Exploded View Of Toe Control Link With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

NOTE: Toe control link is not included in 4WAS models. 4WAS rear actuator assembly is included instead. For 4WAS rear actuator assembly, refer to "EXPLODED VIEW ".
