Removal and Installation: Removal

  1. Remove hoodledge cover (RH) and cowl top cover (RH). Refer to "EXPLODED VIEW ".
  2. Remove the battery and battery tray. Refer to "EXPLODED VIEW ".
  3. Remove VVEL control module bracket bolts (A).
  4. Remove the ground harness fix bolt (B).
  5. Remove VVEL control module bracket (1).
    Fig 1: Identifying VVEL Control Module Bracket And Mounting Bolts
    G08896939Courtesy of NISSAN NORTH AMERICA, INC.
  6. Disconnect VVEL control module harness connector.
  7. Remove the fix bolts (A). And then separate VVEL control module (1), ground harness (2) and VVEL control module bracket (3).

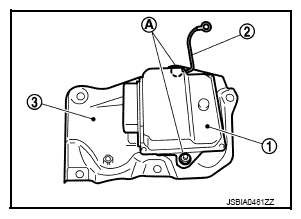

    Fig 2: Identifying VVEL Control Module, Bracket And Mounting Bolts
    G08896940Courtesy of NISSAN NORTH AMERICA, INC.
