Brake Pedal
WARNING: This page is about a different car, the 2013 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

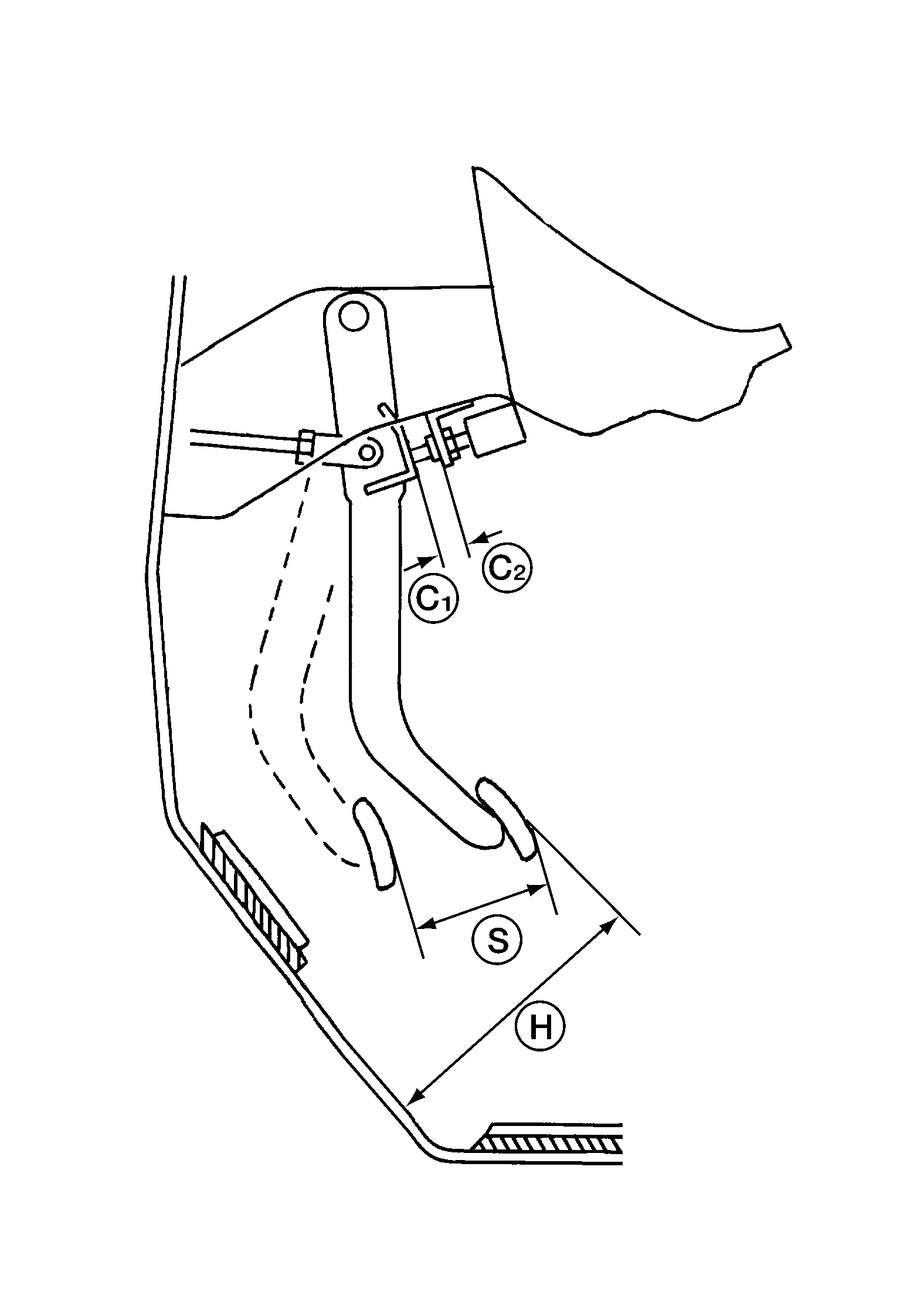

| Unit: mm (in) |
|
|
| Pedal free height (H) |
M/T |
174.7 (6.88) |
| A/T |
182.1 (7.17) |
| Pedal full stroke (S) |
153 (6.02) |
| Clearance between pedal bracket (C1) and threaded end of stop lamp switch and ASCD cancel switch (C2) |
0.74 - 1.96 (0.029 - 0.077) |
