AWD: Exploded View

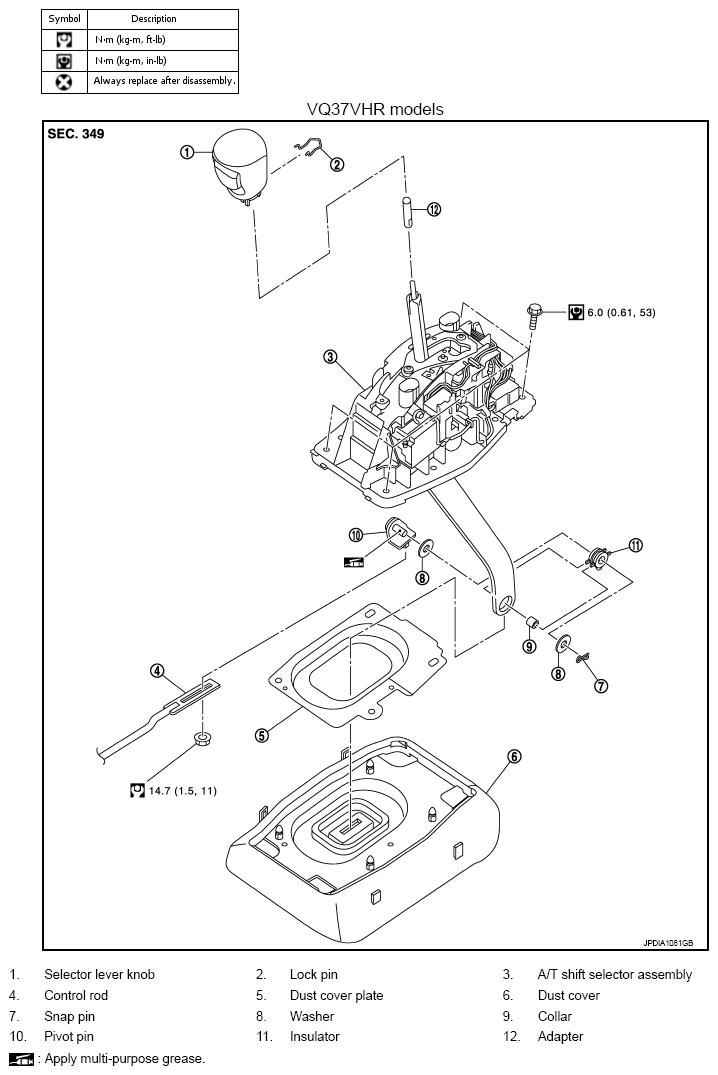

Fig 1: Exploded View Of A/T Shift Selector With Torque Specifications (AWD) (VQ37VHR)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.

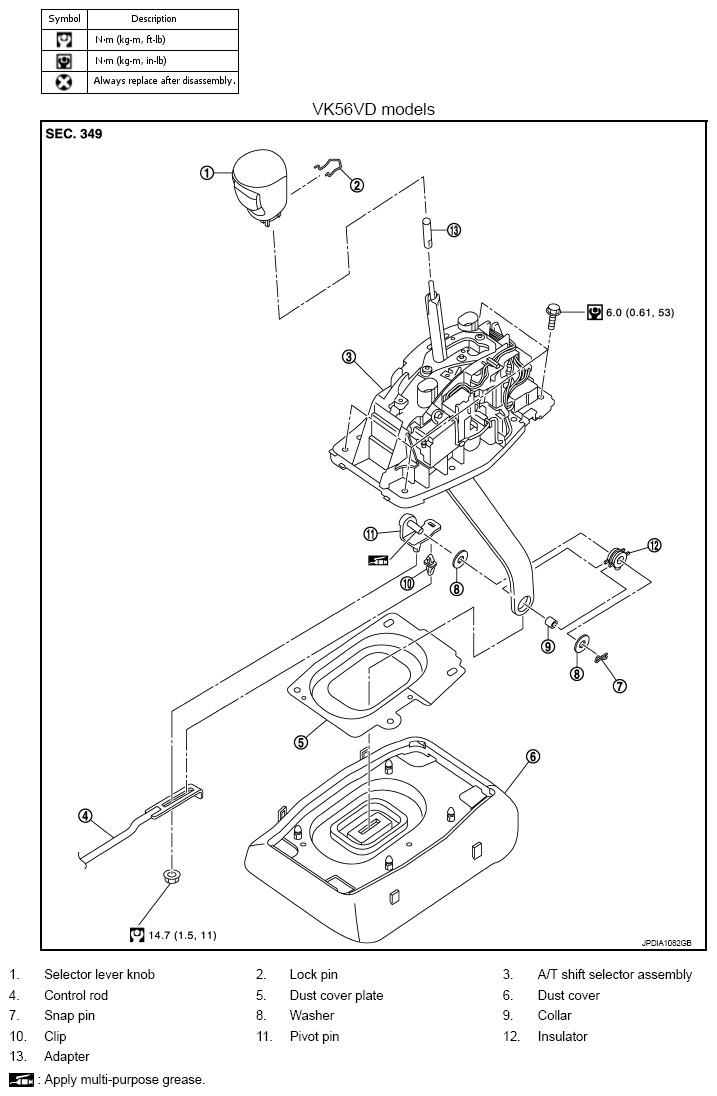

Fig 2: Exploded View Of A/T Shift Selector With Torque Specifications (AWD) (VK56VD Models)

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
