Physical Values

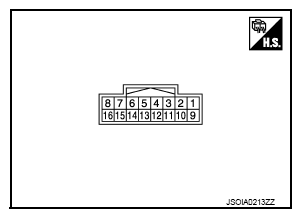

Fig 1: ADAS Control Unit Connector End View
G08893556Courtesy of NISSAN NORTH AMERICA, INC.
Terminal No. (Wire color) Description Condition Value (Approx.)
+ - Signal name Input/Output
1 (Y) Ground Warning systems switch Input Ignition switch ON When warning systems switch is not pressed 12 V
When warning systems switch is pressed 0 V
3 (BR) IBA OFF switch Input Ignition switch ON When IBA OFF switch is not pressed 12 V
When IBA OFF switch is pressed 0 V
4 (O) Warning systems ON indicator Output Ignition switch ON Warning systems ON indicator ON 0 V
Warning systems ON indicator OFF 12 V
5 (SB) ICC brake hold relay drive signal Output Ignition switch ON - 12 V
At "STOP LAMP" test of "Active test" 0 V
6 (B/R) Ground - Ignition switch ON - 0 V
7 (L) ITS communication-H - - - -
8 (P) ITS communication-L - - - -
12 (W) Warning buzzer signal Output Ignition switch ON Warning buzzer operation 0 V
Warning buzzer not operating 12 V
14 (L) CAN-H - - - -
15 (R) CAN-L - - - -
16 (GR) Ignition power supply Input Ignition switch ON Battery voltage
