Removal and Installation: Removal

  1. Remove front body side welt. Refer to "BODY SIDE WELT: REMOVAL AND INSTALLATION ".
  2. Remove instrument side finisher LH. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove instrument lower panel LH. Refer to "REMOVAL AND INSTALLATION ".
  4. Disconnect NATS antenna amp. connector and push-button ignition switch connector.
  5. Disengage the NATS antenna amp. fixing pawls while pushing NATS antenna amp. from its back side, so that NATS antenna amp. and push-button ignition switch are lifted up from instrument panel assembly.

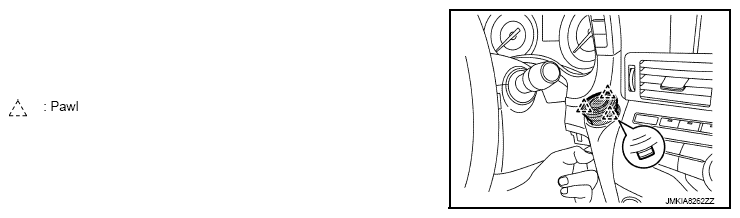

    Fig 1: Removing NATS Antenna Amp.
    G08892116Courtesy of NISSAN NORTH AMERICA, INC.
  6. While pushing the push-button ignition switch from its back side, disengage the push-button ignition switch fixing pawls and then remove push-button ignition switch.

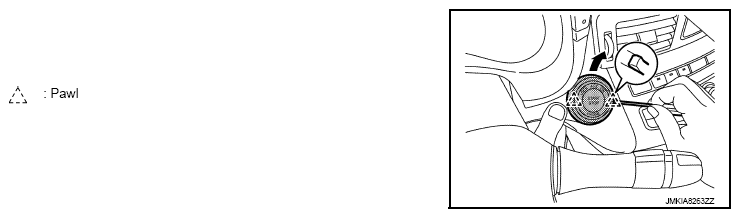

    Fig 2: Removing Push-Button Ignition Switch
    G08892117Courtesy of NISSAN NORTH AMERICA, INC.
