Component Inspection (ICC Brake Hold Relay)

  1. CHECK ICC BRAKE HOLD RELAY
    1. Turn ignition switch OFF.
    2. Remove ICC brake hold relay.
    3. Check the continuity between ICC brake hold relay terminals under the following conditions.
      Terminals Condition Continuity
      3 and 5 12V direct current supply between terminals 1 and 2 Existed
      No current supply Not existed

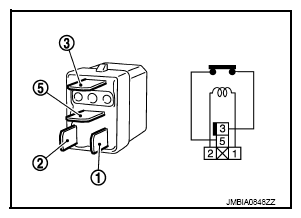

      Fig 1: Identifying ICC Brake Hold Relay Terminals
      G08897215Courtesy of NISSAN NORTH AMERICA, INC.

      Is the inspection result normal?

      YES: INSPECTION END

      NO: Replace ICC brake hold relay
