Removal and Installation: Removal

  1. Remove the instrument lower cover. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the dash side finisher (LH). Refer to "DASH SIDE FINISHER: REMOVAL AND INSTALLATION ".
  3. Remove the ECM cover bolts (A) and remove ECM cover (1).

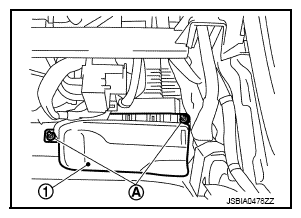

    Fig 1: Identifying ECM Cover And Mounting Bolts
    G08897234Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect ECM harness connectors.
  5. Remove ECM bracket bolt (A)
  6. Slide the ECM bracket (1) upward and then remove ECM bracket with ECM.
  7. Remove ECM bracket bolts (B) and separate ECM (2) and ECM bracket.

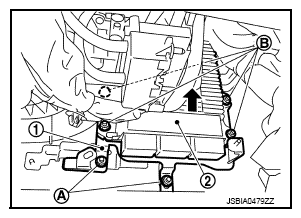

    Fig 2: Sliding ECM Bracket Upward
    G08897235Courtesy of NISSAN NORTH AMERICA, INC.
