Component Inspection (Engine Coolant Temperature Sensor)

  1. CHECK ENGINE COOLANT TEMPERATURE (ECT) SENSOR
    1. Turn ignition switch OFF.
    2. Disconnect ECT sensor harness connector.
    3. Remove ECT sensor. Refer to "EXPLODED VIEW ".
    4. Check resistance between ECT sensor terminals by heating with hot water as shown in the figure below.
      Terminals Condition Resistance (kΩ)
      1 and 2 Temperature [°C (°F)] 20 (68) 2.1 - 2.9
      50 (122) 0.68 - 1.00
      90 (194) 0.236 - 0.260

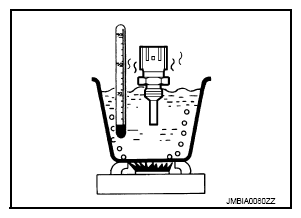

      Fig 1: Checking ECT Sensor
      G08897146Courtesy of NISSAN NORTH AMERICA, INC.

      Is the inspection result normal?

      YES: INSPECTION END

      NO: Replace ECT sensor. Refer to "EXPLODED VIEW ".
